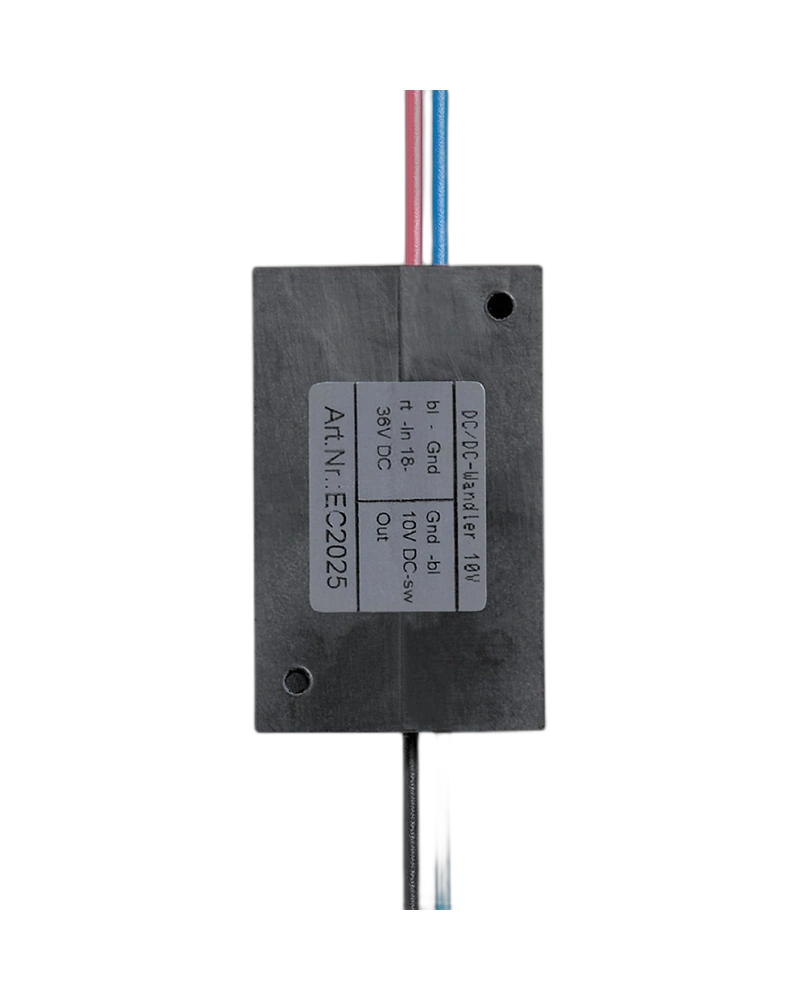

The IFM EC2025 DC-DC converter is designed to provide a stable 10 V DC output from an 18–36 V DC input supply. It is suitable for control systems and electronic components used in mobile machines. The compact, fully potted housing supports reliable operation in demanding environments. The converter provides short-circuit and overload protection for dependable power conversion.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2025 converts an 18–36 V DC input supply into a regulated 10 V DC output. This makes it suitable for applications where a stable 10 V supply is required from a higher DC voltage source.
The converter incorporates short-circuit and overload protection to support reliable operation. Its fully potted housing provides additional protection for use in industrial and mobile-machine applications.
The unit features a compact housing measuring approximately 54 × 34 × 15 mm. The reinforced polyamide housing and encapsulated construction allow convenient integration into control-system installations.
The EC2025 is suitable for mobile machine electronics, control systems and applications requiring a reliable 10 V DC supply from an 18–36 V DC source.
18–36 V DC input voltage
10 V DC output voltage
DC-DC voltage conversion
±2% output accuracy
Short-circuit protection
Overload protection
Compact housing design
Fully potted construction
IP67 protection
0.28 m cable with wire end sleeves
Mobile machine control systems
Industrial automation equipment
Electronic control circuits
Sensor and actuator power supply
Vehicle-mounted electronic systems
DC power conversion applications
| Specification | Details |
|---|---|
| Product Code | EC2025 |
| Product Type | DC-DC Converter |
| Model | R360/DC/DC-CONVERTER/10V |
| Input Voltage | 18–36 V DC |
| Output Voltage | 10 V DC |
| Accuracy | ±2% |
| Protection | Short-circuit and overload protection |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +71 °C |
| Housing | Reinforced glass-fibre polyamide |
| Dimensions | 54 × 34 × 15 mm |
| Cable Length | 0.28 m |
| Manufacturer | IFM |
