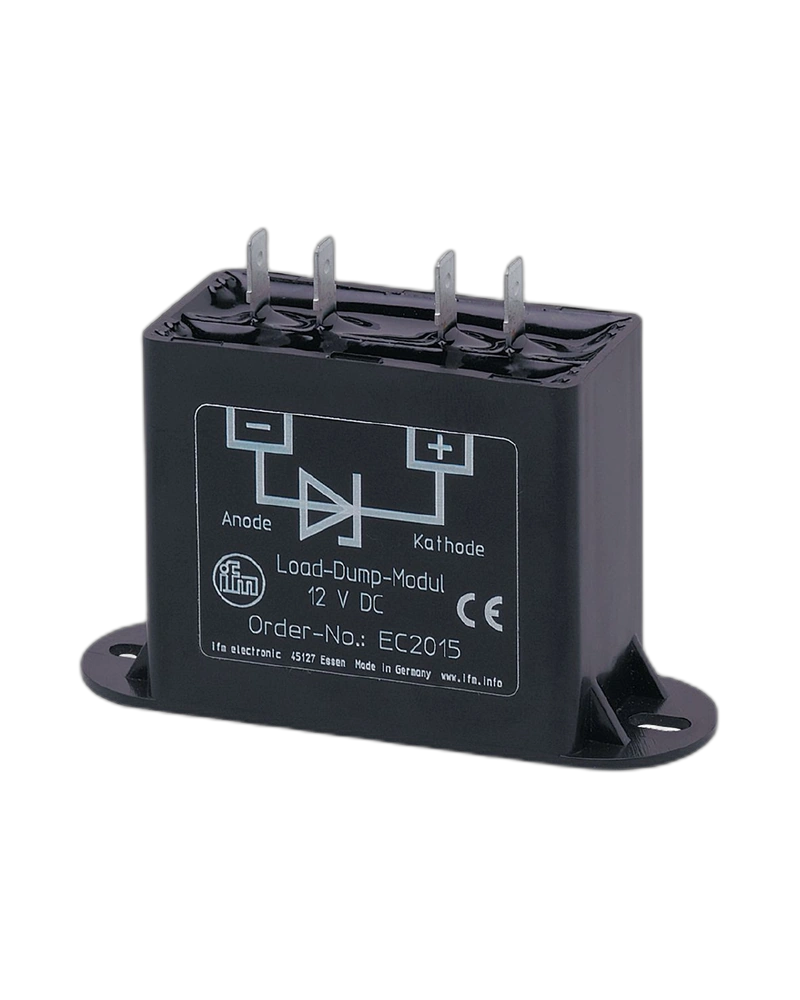

EC2015 is an IFM R360 load-dump module designed to protect electronic devices from voltage spikes in 12 V battery-generator systems. It provides external overvoltage protection for electronic components used in mobile machines. The module supports 12 V DC operation and includes four 6.3 mm flat-pin connections. It is designed for demanding vehicle and mobile machinery environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
EC2015 provides external protection for electronic devices against voltage transients that can occur in generator-battery supply systems. It is particularly suitable for mobile machine electrical systems.
Overvoltage Protection
The module is designed to absorb and limit voltage spikes, helping protect connected electronic equipment from damaging transient voltages. It supports a peak current of up to 32.5 A and peak voltage up to 35 V.
Industrial Construction
EC2015 is designed for demanding operating conditions, with an ambient temperature range of -40 °C to +85 °C. Its compact housing supports convenient installation in machine electrical systems.
Application Performance
The load-dump module is suitable for 12 V mobile machinery, vehicle electronics, industrial automation systems and battery-powered control installations.
Key Features
ifm R360 load-dump module
12 V DC operating voltage
External overvoltage protection
Peak current up to 32.5 A
Peak voltage up to 35 V
ISO 7637-2 pulse 5A EMC test
-40 °C to +85 °C ambient temperature
Four 6.3 mm flat-pin connections
Compact industrial housing
Designed for mobile machine electronics
Applications
12 V mobile machinery
Vehicle electrical systems
Industrial automation equipment
Mobile machine controllers
Battery-generator supply systems
Electronic device protection
Vehicle control systems
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | EC2015 |
| Product Type | Load-dump module |
| Series | R360 |
| Designation | R360/LOAD-DUMP-MODULE/12VDC |
| Operating Voltage | 12 V DC |
| Peak Current | ≤ 32.5 A |
| Peak Voltage | ≤ 35 V |
| Ambient Temperature | -40 °C to +85 °C |
| EMC | ISO 7637-2 pulse 5A |
| Dimensions | 64.5 × 96 × 33 mm |
| Weight | Approx. 197.5 g |
| Connector | 4 × flat-pin connector, 6.3 mm |
| Pack Quantity | 1 piece |
| Manufacturer | IFM |
