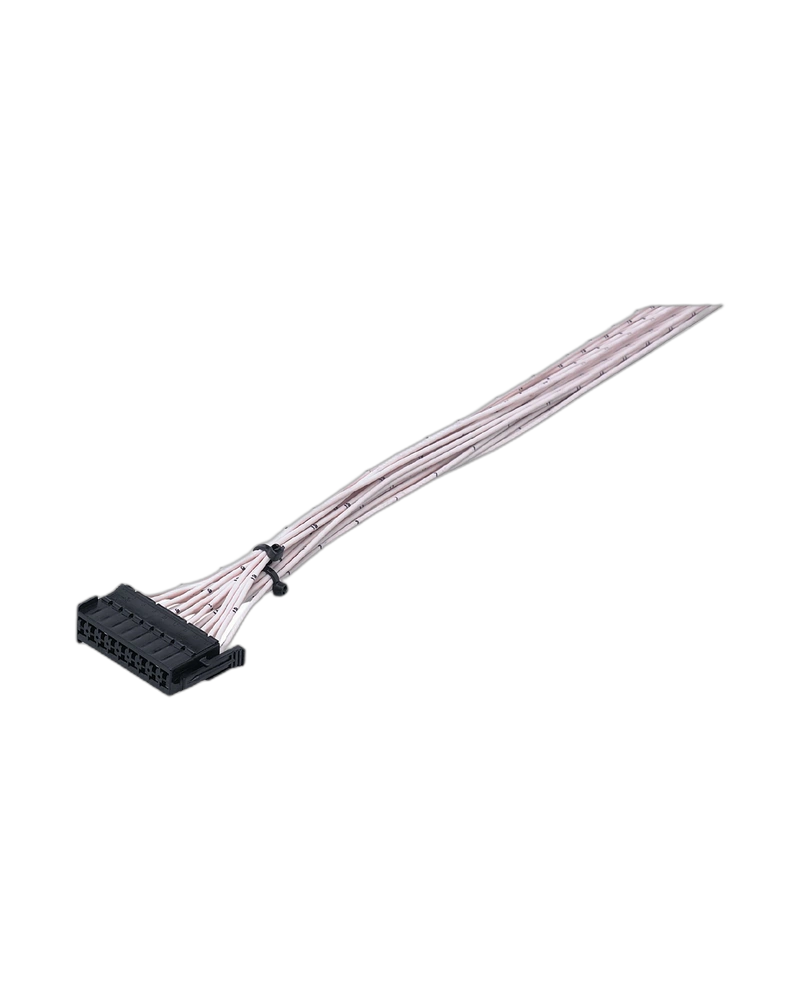

EC1524 is an IFM R360 connecting cable designed for connection of input signals in control-system applications. It uses an 18-pole AMP connector with a partially wired configuration. The 1.2 m cable has a 1 mm² core cross-section for dependable electrical connectivity. It is suitable for mobile machinery and industrial automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
EC1524 is designed as a practical connection solution for R360 control systems where input signals need to be connected to compatible controllers or modules.
Connection Design
The cable uses an AMP 18-pole connector and is partially wired for input-signal applications. This configuration provides flexibility for integrating machine input signals into the control system.
Installation Efficiency
The pre-configured cable assembly reduces wiring effort compared with assembling individual connection components. Its defined connector arrangement supports organized machine wiring.
Application Performance
EC1524 is suitable for mobile machinery, industrial control systems and automation applications requiring reliable input-signal connections.
Key Features
ifm R360 CabinetCable
AMP 18-pole connector
Partially wired configuration
Designed for input signals
1.2 m cable length
1 mm² core cross-section
Pre-configured connection
Reliable electrical signal transmission
Suitable for control-system integration
Designed for mobile machine applications
Applications
Input signal connections
Mobile machinery
Industrial automation systems
R360 control systems
CabinetController applications
CabinetModule applications
Machine control panels
Industrial electrical systems
| Specification | Details |
|---|---|
| Product Code | EC1524 |
| Product Type | Connecting cable with AMP connector |
| Series | R360 |
| Designation | R360/CabinetCable/18/8 pins |
| Connector | AMP |
| Connector Poles | 18-pole |
| Wiring | Partially wired |
| Application | Input signals |
| Cable Length | 1.2 m |
| Core Cross-section | 1 mm² |
| Manufacturer | IFM |
