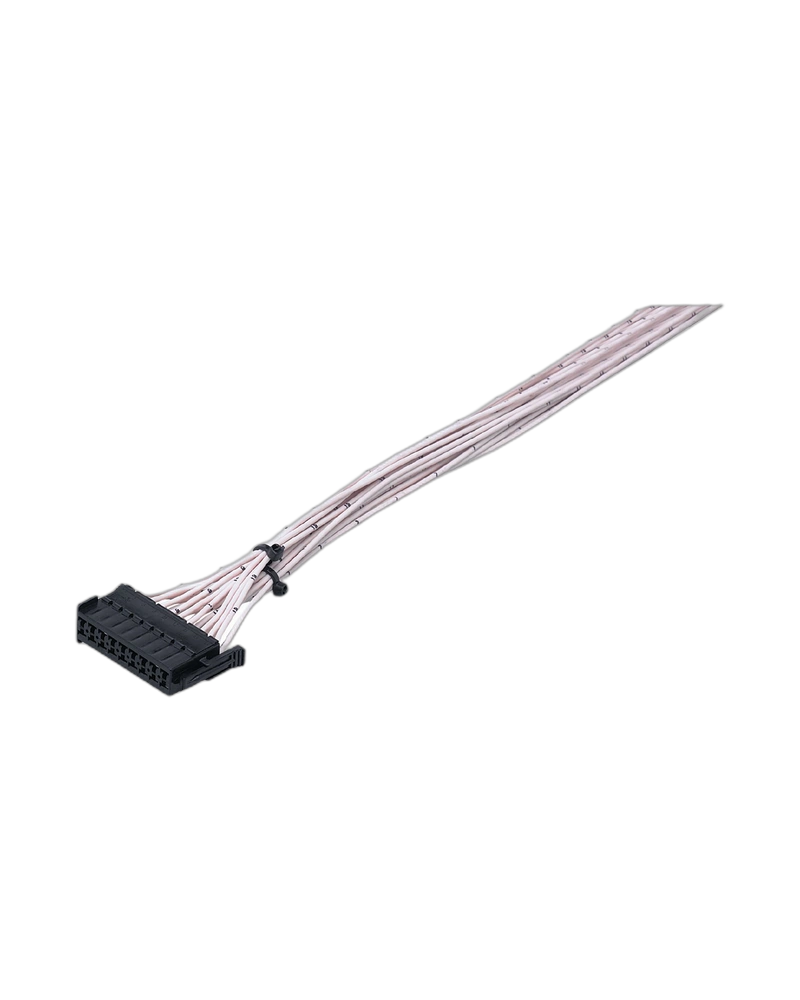

EC1523 is an IFM R360 connecting cable featuring a fully wired 18-pole AMP connector. It is designed for reliable signal and electrical connections in mobile machine and industrial control systems. The 1.2 m cable uses a 1 mm² core cross-section for dependable connectivity. Its robust connection design supports demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
EC1523 provides a ready-to-install connection between compatible IFM R360 controllers, modules and machine wiring. The fully wired AMP connector simplifies system integration.
Connection Design
The 18-pole AMP connector provides multiple connection points for control-system signals. Its lockable connector design supports secure installation and reliable electrical connection.
Reliable Industrial Connectivity
The cable is designed for dependable signal transmission in control-system applications. IFM specifies the cable for applications in mobile machines and particularly harsh industrial environments.
Application Performance
The cable is suitable for CabinetController and CabinetModule applications and supports reliable electrical integration of R360 control-system components.
Key Features
ifm R360 CabinetCable
18-pole AMP connector
Fully wired cable
1.2 m cable length
1 mm² core cross-section
Lockable connector design
Reliable signal transmission
Pre-configured industrial connection
Suitable for harsh industrial environments
Designed for mobile machine control systems
Applications
Mobile machinery
Industrial automation systems
CabinetController systems
CabinetModule systems
Control cabinet wiring
Machine control systems
Vehicle electrical systems
Industrial control installations
| Specification | Details |
|---|---|
| Product Code | EC1523 |
| Product Type | Connecting cable with AMP connector |
| Series | R360 |
| Designation | R360/CabinetCable/18 pins |
| Connector | AMP |
| Connector Poles | 18-pole |
| Wiring | Fully wired |
| Cable Length | 1.2 m |
| Core Cross-section | 1 mm² |
| Operating Voltage | 30 V AC / 36 V DC |
| Application | CabinetController / CabinetModule |
| Weight | Approx. 261.7 g |
| Manufacturer | IFM |
