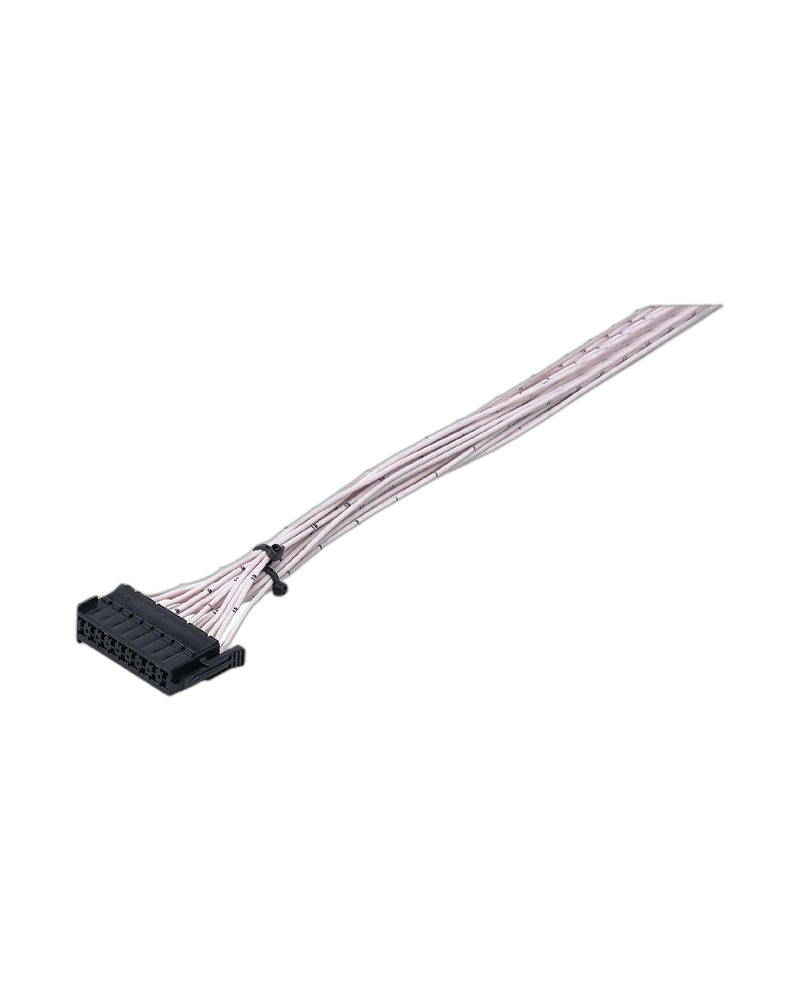

EC1522 is a fully wired IFM connecting cable equipped with a 14-pole AMP connector. It is designed for reliable connections between R360 control-system components and machine wiring. The 1.2 m cable with 1 mm² core cross-section provides a practical pre-assembled connection solution. It is suitable for industrial and mobile machine control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
The EC1522 connecting cable is designed to simplify electrical connections within IFM R360 control systems. Its pre-configured AMP connector provides a convenient interface for compatible control components.
Connection Design
The cable uses a fully wired 14-pole AMP connector for organized and dependable electrical connection. Its factory-wired configuration helps reduce wiring time during installation.
Reliable Signal Transmission
The cable supports reliable transmission of electrical signals between compatible control components. The 1 mm² conductor construction provides a suitable connection solution for R360 system applications.
Application Performance
EC1522 is designed for use in mobile machines, industrial automation equipment and control-system installations where dependable multi-pin connections are required.
Key Features
ifm R360 CabinetCable
14-pole AMP connector
Fully wired cable assembly
1.2 m cable length
1 mm² core cross-section
Pre-configured connection
Reliable electrical signal transmission
Easy connection to compatible control systems
Designed for mobile machine applications
Suitable for CabinetController and CabinetModule systems
Applications
Mobile machine control systems
Industrial automation systems
Control cabinets
CabinetController connections
CabinetModule connections
Machine wiring systems
Vehicle control equipment
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | EC1522 |
| Product Type | Connecting cable with AMP connector |
| Series | R360 |
| Designation | R360/CabinetCable/14 pins |
| Connector | AMP |
| Connector Poles | 14-pole |
| Wiring | Fully wired |
| Cable Length | 1.2 m |
| Core Cross-section | 1 mm² |
| Application | Control systems for mobile vehicles |
| Manufacturer | IFM |
