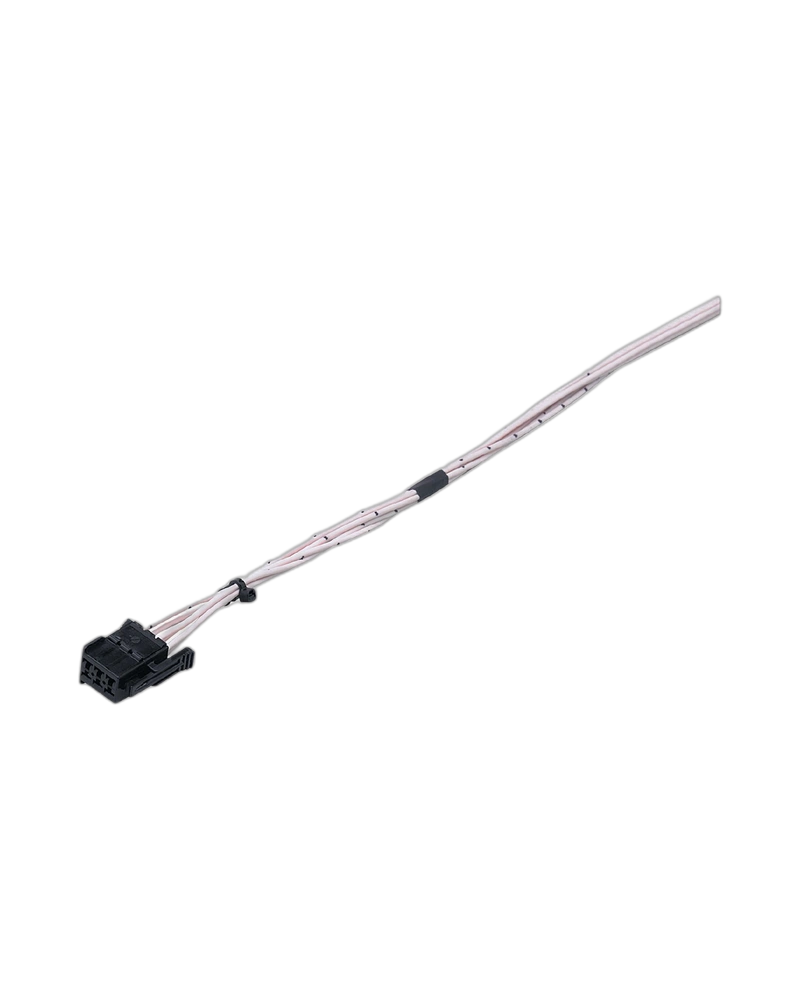

The EC1520 is a connecting cable with an AMP connector designed for controllers and dialogue modules. It provides reliable signal transmission in industrial automation and mobile-machine applications. The 1.2 m cable uses a 1 mm² conductor and a single AMP connector. Its lockable connector design provides secure connection with reverse polarity protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The IFM EC1520 is a dedicated connection cable for CabinetController and CabinetModule applications. It provides a convenient connection between compatible control equipment and the on-board system.
Connection Design
The cable is 1.2 m long with a 1 mm² conductor and is equipped with one AMP connector. The connector is designed for fast and easy connection to the on-board system.
Application Performance
The EC1520 supports reliable signal transmission and is designed for industrial applications, mobile machines and particularly harsh industrial environments. Its wide operating voltage range supports versatile system integration.
Why Choose
The EC1520 combines a dedicated AMP connector, lockable connection and reverse polarity protection to provide reliable and convenient industrial connectivity.
Key Features
AMP connector for fast connection
Lockable connector design
Reverse polarity protection
1.2 m cable length
1 mm² cable cross-section
Reliable signal transmission
Wide operating voltage range
Suitable for harsh industrial environments
Applications
CabinetController systems
CabinetModule systems
Industrial automation systems
Mobile machine applications
On-board system connections
Harsh industrial environments
| Specification | Details |
|---|---|
| Product Code | EC1520 |
| Product Type | Connecting cable with AMP connector |
| Design | R360/CabinetCable/6 pins |
| Application | CabinetController, CabinetModule |
| Cable Length | 1.2 m |
| Cable Cross-Section | 1 mm² |
| Connector | 1 × AMP |
| Operating Voltage | 30 V AC / 36 V DC |
| Weight | 91 g |
| Pack Quantity | 1 pc |
