The EC1300 is a robust mounting bracket designed for ecomatPanel applications. It provides secure installation of compatible display panels in industrial and mobile-machine environments. The mounting frame is manufactured from stainless steel for durability. Its installation design supports quick and easy mounting in panels or panel cutouts.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction

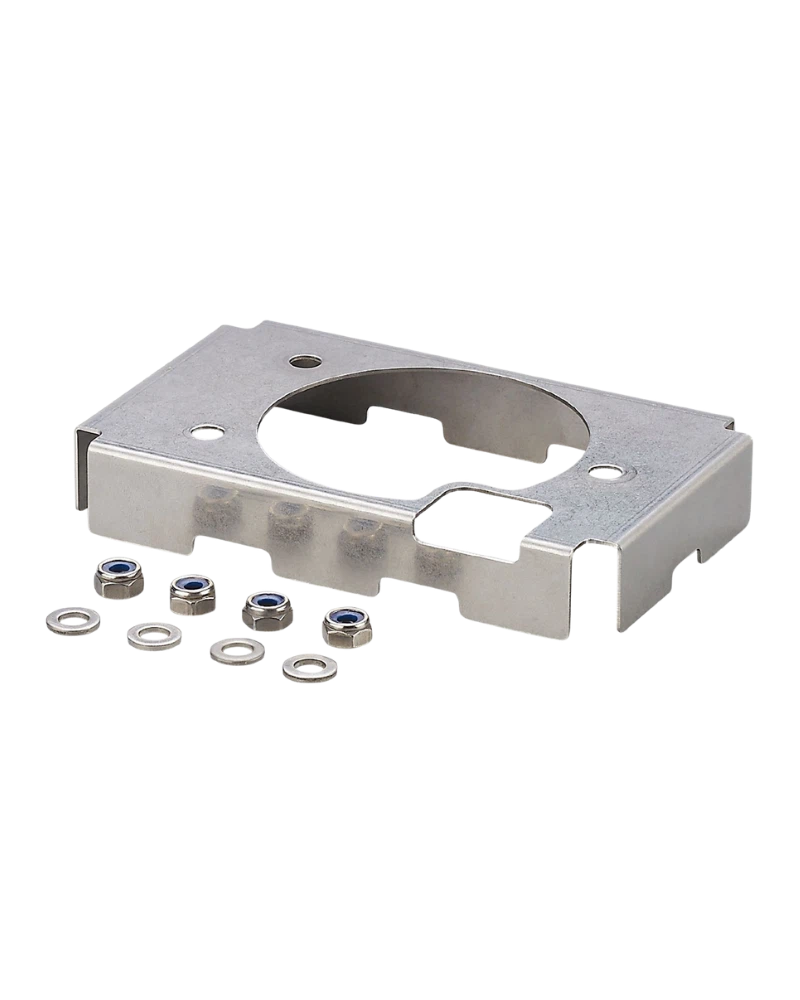

The IFM EC1300 is a mounting bracket for CR1300 and CR1301 ecomatPanel units, providing a dedicated mechanical solution for panel installation.
Design & Functionality
The mounting frame is manufactured from stainless steel 304 / 1.4301. It is designed for installation in panels or panel cutouts with material thicknesses from 1 to 8 mm.
Application Performance
The EC1300 provides stable mechanical fixation for display panels used in mobile machines and industrial control applications. Its robust construction supports reliable installation under demanding operating conditions.
Why Choose
The EC1300 offers a purpose-built mounting solution with stainless-steel construction and supplied fixing hardware for convenient panel installation.
Key Features
Designed for CR1300 and CR1301
ecomatPanel mounting solution
Stainless-steel construction
Robust industrial design
Quick and easy mounting
Suitable for panel cutouts
Supports material thickness from 1 to 8 mm
Self-locking nuts supplied
Applications
Mobile machine control panels
Industrial automation systems
Machine operator interfaces
ecomatPanel installations
Industrial display mounting
Control and monitoring equipment
| Specification | Details |
|---|---|
| Product Code | EC1300 |
| Product Type | Mounting bracket |
| Design | ecomatPanel/Mounting Frame |
| Application | Accessories for CR1300 / CR1301 |
| Mounting Type | Installation in panels or panel cutouts |
| Compatible Material Thickness | 1–8 mm |
| Dimensions | 132 × 82 × 21.1 mm |
| Material | Stainless steel 304 / 1.4301 |
| Weight | 147.5 g |
| Supplied Items | 3 × M6 washers, 3 × M6 self-locking nuts |
| Pack Quantity | 1 pc |
