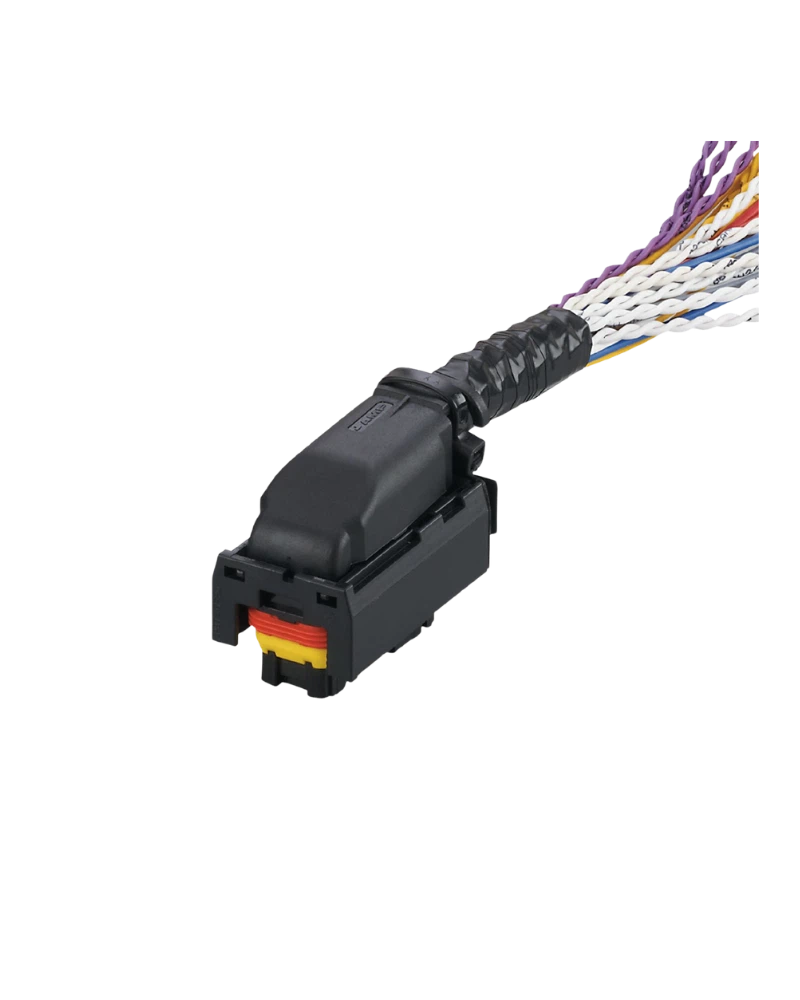

The IFM EC0705 is a 2.5 m connecting cable with an AMP connector designed for ecomatDisplay applications. It provides a multi-function connection interface for display, CAN, audio, input and output signals. The cable is suitable for mobile and demanding industrial applications. It provides IP67 protection and operates with systems up to 36 V DC.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
The EC0705 is designed to connect ecomatDisplay equipment with compatible control and communication systems using an AMP connector.
Design & Functionality
The cable uses a 40-position AMP Junior Timer connector and a 2.5 m PVC FLRY-B cable. Its connection arrangement supports multiple signal groups including video, CAN, audio, service, input and output functions.
Application
The cable is intended for industrial applications, factory automation, mobile machines and demanding operating environments.
Why Choose
EC0705 provides a pre-configured multi-signal connection solution that simplifies wiring between display and control equipment. Its robust construction and IP67 protection support reliable use in demanding environments.
Key Features
40-pole AMP connector
ecomatDisplay cable design
2.5 m cable length
AMP Junior Timer connector
PVC FLRY-B cable construction
36 V DC operating voltage
IP67 protection
Wide operating temperature range
Suitable for mobile machines
Multi-signal connection capability
Applications
ecomatDisplay systems
Mobile machines
Industrial automation
CAN communication systems
Machine control systems
Display connections
Industrial control equipment
| Specification | Details |
|---|---|
| Product Code | EC0705 |
| Product Type | Connecting cable with AMP connector |
| Product Designation | ecomatDisplay/Cable/40p/2.5m |
| Cable Length | 2.5 m |
| Connector | 1 × AMP Junior Timer |
| Operating Voltage | 36 V DC |
| Protection | IP67 |
| Cable Type | PVC; FLRY-B |
| Cable Construction | 32 × 0.5 mm² + 5 × 1.0 mm² + 3 × 2.5 mm² |
| Weight | 896 g |
| Ambient Temperature | -40...105 °C |
