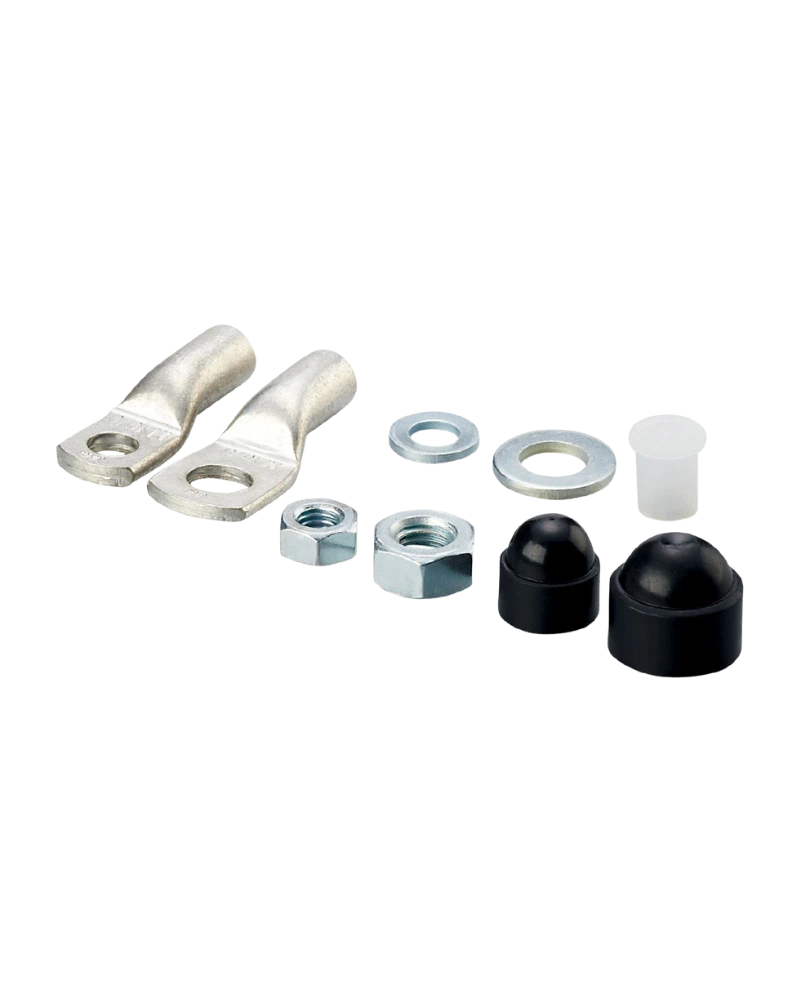

EC0465 is a complete power-connection accessory set designed for the BasicController Relay CR0431. It contains tubular cable lugs, protective sleeves, nuts, protective covers and washers for power-supply installation. The components are designed to provide secure electrical connections. It is suitable for mobile machines and demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0465 provides the mechanical connection components required for supplying power to the CR0431 relay controller. The set includes connection hardware for M8 and M6 power terminals. This simplifies installation of the controller's power supply.
The set includes tubular cable lugs for 16 mm² conductors in M8 and M6 sizes. These provide suitable termination points for high-current power connections. The dedicated components help create secure and reliable electrical joints.
Protective sleeves, covers and washers are included to support safe installation. These components help protect connection points from accidental contact and environmental exposure. They also provide a cleaner finished installation.
EC0465 is designed for BasicController Relay CR0431 applications in mobile and harsh industrial environments. Its compact 32.9 g design makes it easy to include in controller installation kits. The complete set is supplied as one package.
Designed for CR0431
Power supply connection set
M8 cable lug
M6 cable lug
16 mm² cable compatibility
Protective sleeves
Protective covers
Washers included
Hexagon nuts included
Secure power connection
CR0431 power supply
Mobile machine controllers
Relay controller installation
High-current connections
Industrial automation
Agricultural machinery
Construction machinery
OEM electrical assembly
| Specification | Details |
|---|---|
| Product Type | Connecting Material for Power Supply |
| Model | BasicContact-Set / for CR0431 |
| Order Number | EC0465 |
| Compatible Controller | BasicController Relay CR0431 |
| M8 Cable Lug | 1 × M8, 16 mm² |
| M6 Cable Lug | 1 × M6, 16 mm² |
| Protective Sleeve | 1 × M6 × 10 mm |
| M8 Nut | 1 pc |
| M6 Nut | 1 pc |
| M8 Protective Cover | 1 pc |
| M6 Protective Cover | 1 pc |
| Ø6.4 Washer | 1 pc |
| Ø8.4 Washer | 1 pc |
| Weight | 32.9 g |
| Pack Quantity | 1 set |
