EC0464 is a complete connection and contact set designed for the IFM BasicController Relay CR0431. It provides contact housings and contacts for the controller's inputs, outputs, external-unit supply and CAN1/CAN2 connections. The set includes standard and power timer contacts for multiple conductor sizes. It provides a complete wiring solution for CR0431 installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0464 provides the housings and contacts needed to utilise all connections of the BasicController Relay CR0431. It combines input, output, supply and CAN connection housings in one set. This simplifies controller wiring and reduces individual component sourcing.

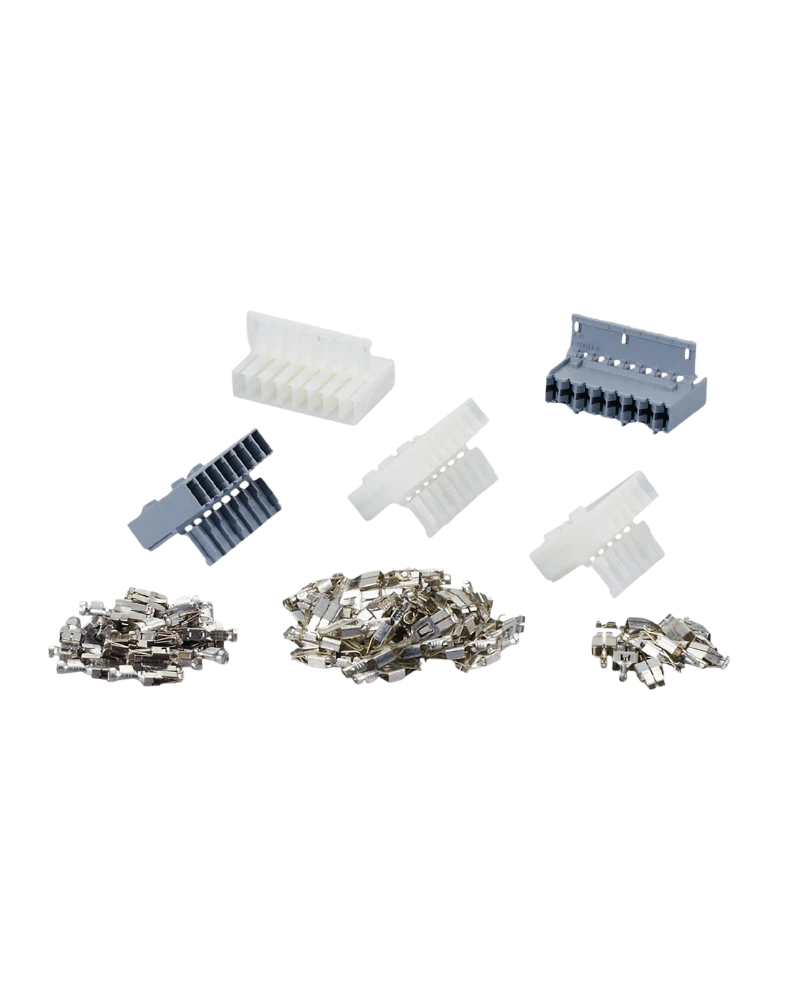

The set includes two 8-pin grey housings for A/B inputs and two 8-pin natural housings for D/E outputs. These provide dedicated connection points for the relay controller's input and output wiring. The configuration supports organised machine wiring.
A 6-pin natural housing is included for V_EXT, N1 and N2 connections. This supports supply to external units as well as CAN1 and CAN2 interfaces. The dedicated housing keeps these important connections organised.
The set contains tin-plated standard timer contacts for 0.2–0.5 mm² and 0.5–1.0 mm² conductors, plus standard power timer contacts for 1.25–2.5 mm² conductors. This allows the set to support both signal and power wiring requirements.
Designed for CR0431
Complete housing and contact set
A/B input housings
D/E output housings
CAN1 and CAN2 connection
External supply connection
Tin-plated contacts
Power timer contacts
Multiple conductor sizes
Complete wiring solution
BasicController Relay CR0431
Mobile machine control
Relay controller wiring
CAN communication
Sensor connections
Actuator connections
Power connections
OEM machine assembly
| Specification | Details |
|---|---|
| Product Type | Standard Timer Contact Housing with Contacts |
| Model | BasicHousing + Contact |
| Order Number | EC0464 |
| Compatible Controller | BasicController Relay CR0431 |
| Input Housings | 2 × 8-pin, grey |
| Output Housings | 2 × 8-pin, natural |
| Supply/CAN Housing | 1 × 6-pin, natural |
| Standard Contacts | 10 × 0.2–0.5 mm² |
| Standard Contacts | 40 × 0.5–1.0 mm² |
| Power Contacts | 20 × 1.25–2.5 mm² |
| Contact Material | Tin-plated |
| Weight | 70.8 g |
| Pack Quantity | 1 set |
