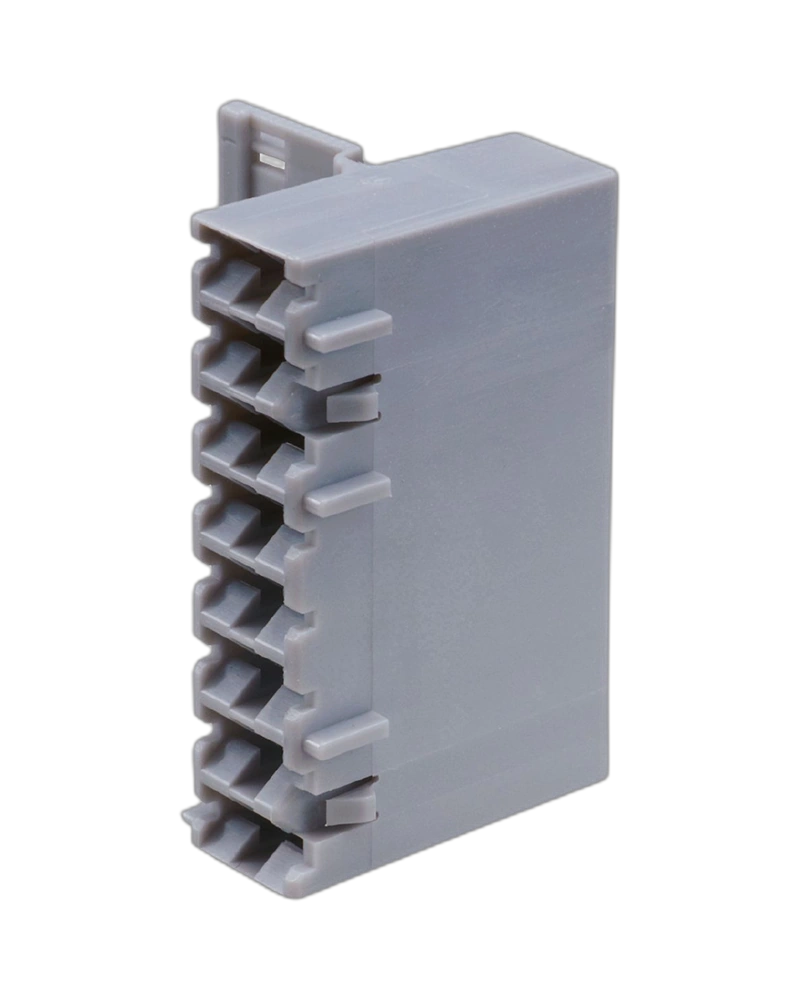

EC0462 is a standard timer contact housing designed for the A/B/C input connections of IFM BasicController CR04xx systems. It provides an 8-terminal interface in a robust PA grey housing. The housing can be coded and cut to the required configuration. It is suitable for controller wiring in mobile and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0462 is designed for the A/B/C input sections of BasicController CR04xx devices. The 8-terminal arrangement provides the physical connection interface for the corresponding controller inputs. This supports organised sensor and signal wiring.
The housing uses the C2.x coding family and can be coded according to the controller connection requirements. This helps reduce incorrect connector installation. The configurable design is useful for OEM machine wiring.
The housing is manufactured from PA grey material. This provides mechanical protection around the electrical connections. The robust construction is intended for harsh industrial and mobile-machine environments.
EC0462 can be wired using compatible standard timer contacts. It supports controller assembly, replacement and maintenance work. The standardised housing format simplifies integration into the BasicController connection system.
For BasicController CR04xx
A/B/C input connection
8 terminals
PA grey housing
C2.x coding
Can be coded
Can be cut to size
Wirable design
Robust connector housing
Service-friendly
BasicController inputs
Sensor wiring
Mobile machine control
ecomatBasic systems
Industrial automation
OEM controller assembly
Machine service
Control-system wiring
| Specification | Details |
|---|---|
| Product Type | Standard Timer Contact Housing |
| Model | BasicHousing/A,B,C//C2.x |
| Order Number | EC0462 |
| Compatible Controller | BasicController CR04xx |
| Connection | Inputs A/B/C |
| Coding | C2.x |
| Terminals | 8 |
| Housing Material | PA grey |
| Weight | 1028.5 g |
| Pack Quantity | 200 pcs |
| Wiring | Standard timer contacts |
| Configuration | Can be coded and cut to size |
