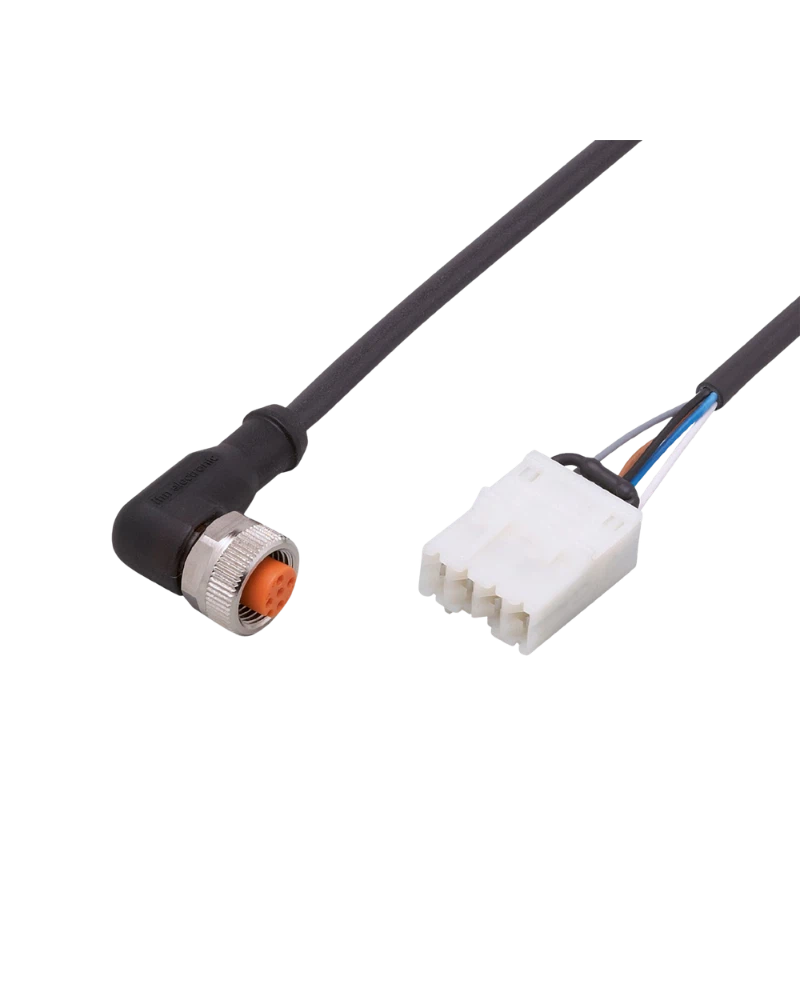

EC0458 is a 10 m prewired jumper designed to connect an IFM BasicController with a BasicDisplay. It carries both power supply and CAN-bus communication through a factory-prepared cable assembly. The cable uses a 5-pole angled M12 connector and includes integrated 120-ohm CAN termination. Its wide temperature range makes it suitable for mobile and harsh applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0458 provides a dedicated connection between one BasicController and one BasicDisplay. It combines power and CAN-bus communication in one cable. This simplifies wiring between remotely positioned controller and display components.
The 10 m cable length provides flexibility for installations where the controller and display are positioned far apart. The cable contains five 0.34 mm² conductors. This makes it useful for larger mobile-machine installations where shorter jumpers are insufficient.
The cable assembly incorporates 120-ohm CAN-bus terminating resistors in the standard timer contact housing and M12 connector. This helps simplify CAN network installation. It avoids the need for separate termination components at the connection point.
EC0458 supports an ambient temperature range of -40°C to +85°C. Its prewired construction reduces installation time and wiring errors. The assembly is designed for ecomatBasic and ecomatDisplay applications in mobile and harsh environments.
10 m prewired jumper
BasicController compatible
BasicDisplay compatible
CAN-bus communication
Power supply connection
5 × 0.34 mm² cable
Angled M12 connector
5-pin M12 connection
Integrated 120-ohm termination
-40°C to +85°C operation
BasicController-to-display connection
Mobile machine HMI
ecomatBasic systems
ecomatDisplay systems
Agricultural machinery
Construction machinery
Vehicle automation
Long-distance internal wiring
| Specification | Details |
|---|---|
| Product Type | Prewired Jumper |
| Model | BasicCable/Display 10m |
| Order Number | EC0458 |
| Controller | 1 × BasicController CR04xx |
| Display | 1 × BasicDisplay CR045x |
| Communication | CAN bus |
| Power Supply | Yes |
| Cable Length | 10 m |
| Cable | 5 × 0.34 mm² |
| Connector | 1 × angled M12 |
| Coding | A |
| Contacts | 5 |
| CAN Termination | 120 ohm |
| Ambient Temperature | -40°C to +85°C |
| Weight | 364.5 g |
| Pack Quantity | 1 pc. |
