EC0456 is a complete connection set designed for wiring all available connections of an IFM BasicController CR04xx. It combines multiple standard timer contact housings with tin-plated contacts for different conductor sizes. The set covers input, output, CAN and power connections in one package. It simplifies controller wiring, installation and service work.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

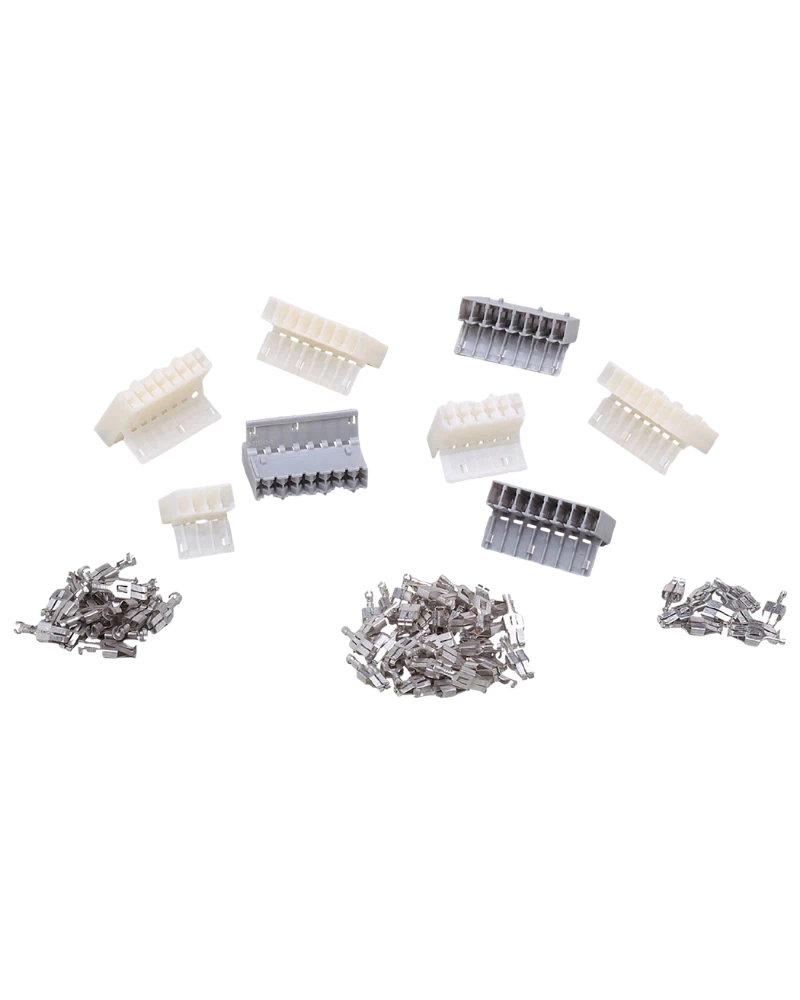

EC0456 provides the contact housings and terminals required to utilise all connections on a compatible BasicController. The set includes dedicated housings for inputs, outputs, CAN1, CAN2 and power connections. This reduces the need to source individual connector components. It is suitable for controller assembly and service work.
The set contains 8-pin housings for the A/B/C input groups and D/E/F output groups, along with 6-pin and 4-pin housings for P/N1 and N2 connections. This arrangement matches the BasicController connection architecture. The housings can be wired according to the required machine configuration.
EC0456 includes tin-plated standard timer contacts for 0.2–0.5 mm², 0.5–1.0 mm² and 1.0–2.5 mm² conductors. This allows the same connection set to support different wiring requirements. The range is suitable for both signal and higher-current wiring applications.
The complete set helps simplify controller installation and replacement. Preselected housings and contacts reduce component-selection effort during assembly. It is useful for OEM wiring, machine maintenance and field service. The compact set provides all required connection components in one package.
Complete BasicController connection set
Designed for CR04xx controllers
Input and output housings
CAN1 and CAN2 housings
Power connection housing
Tin-plated contacts
Multiple conductor sizes
Compact connection solution
Suitable for OEM wiring
Suitable for service work
BasicController wiring
Mobile machine automation
Industrial controller installation
OEM machine building
Control-panel assembly
Machine service and repair
CAN connection wiring
Input/output wiring
| Specification | Details |
|---|---|
| Product Type | Standard Timer Contact Housing with Contacts |
| Model | Basic/Connection Set |
| Order Number | EC0456 |
| Compatible Controller | BasicController CR04xx |
| Input Housings | 3 × 8-pin, grey |
| Output Housings | 3 × 8-pin, natural |
| CAN1 / Power Housing | 1 × 6-pin, natural |
| CAN2 Housing | 1 × 4-pin, natural |
| 0.2–0.5 mm² Contacts | 10 pcs |
| 0.5–1.0 mm² Contacts | 40 pcs |
| 1.0–2.5 mm² Contacts | 20 pcs |
| Contact Material | Tin-plated |
| Weight | 77.5 g |
| Pack Quantity | 1 pc. |
