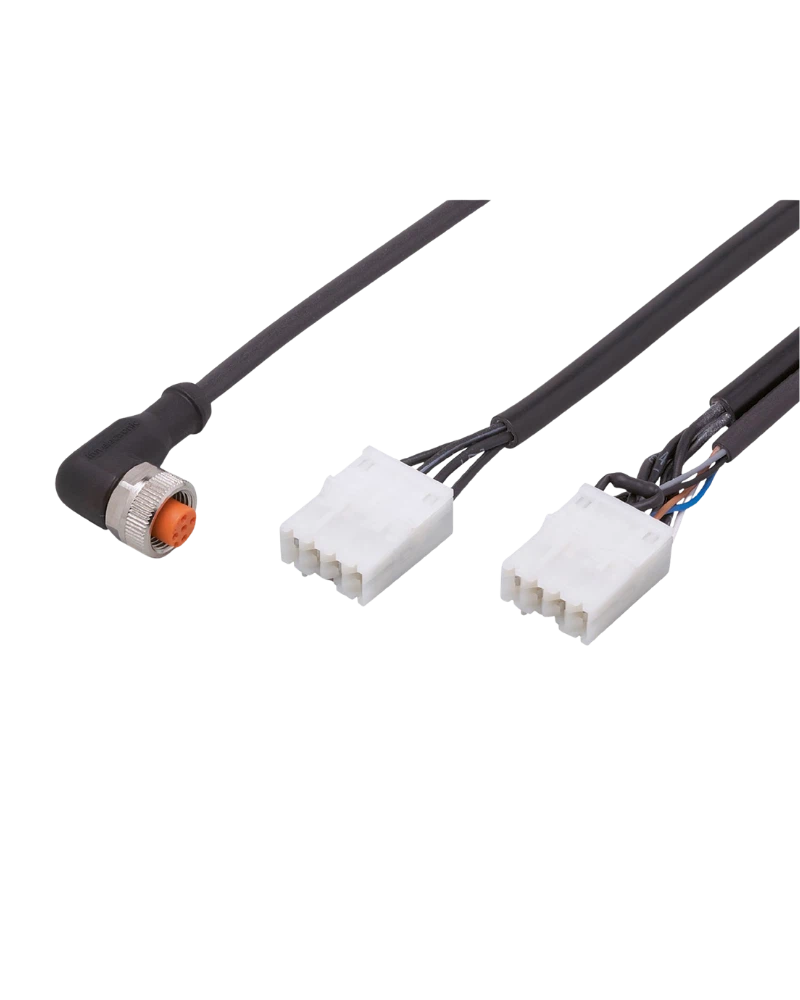

EC0455 is a prewired jumper designed for connecting two BasicControllers and one BasicDisplay in mobile-machine control systems. It provides power supply and CAN-bus signal transmission through a 5 m black cable assembly. The contact housing incorporates a 120-ohm CAN-bus terminating resistor for simplified network installation. Its -40°C to +85°C operating range supports demanding mobile applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0455 is designed for systems using two BasicControllers CR04xx and one BasicDisplay CR045x. It provides the required wiring arrangement for power and CAN-bus communication. The configuration helps simplify multi-module system installation. It is suitable for distributed mobile-machine control architectures.
The 5 m cable length provides additional routing flexibility compared with shorter jumper variants. This is useful when controller and display locations are separated within a machine. The black cable contains five 0.34 mm² conductors. The prewired configuration simplifies installation.
A 120-ohm CAN-bus terminating resistor is integrated into the standard timer contact housing and connector. This simplifies CAN network installation. The integrated termination reduces the requirement for additional external components. It supports reliable communication-system configuration.
EC0455 is designed for mobile and demanding applications. Its operating temperature range is -40°C to +85°C. The factory-prepared cable assembly provides a practical connection solution for mobile controllers and displays. It is supplied as one complete jumper.
Prewired jumper
5 m cable length
Two BasicControllers
One BasicDisplay
CAN-bus communication
Power supply connection
Integrated 120-ohm termination
5 × 0.34 mm² conductors
Wide operating temperature
Mobile-machine suitable
Mobile machine control
BasicController systems
BasicDisplay systems
Longer internal cable routing
CAN-bus networks
Agricultural machinery
Construction machinery
Vehicle automation
| Specification | Details |
|---|---|
| Product Type | Prewired Jumper |
| Model | BasicCable/DisplayModules B |
| Order Number | EC0455 |
| Controllers | 2 × BasicController CR04xx |
| Display | 1 × BasicDisplay CR045x |
| Communication | CAN bus |
| Application | Voltage supply + CAN bus |
| Cable Length | 5 m |
| Cable Colour | Black |
| Cable Cross-section | 5 × 0.34 mm² |
| CAN Termination | 120 ohm |
| Ambient Temperature | -40°C to +85°C |
| Weight | 231.7 g |
| Contact Housing | Standard timer contact housing |
| Pack Quantity | 1 pc. |
