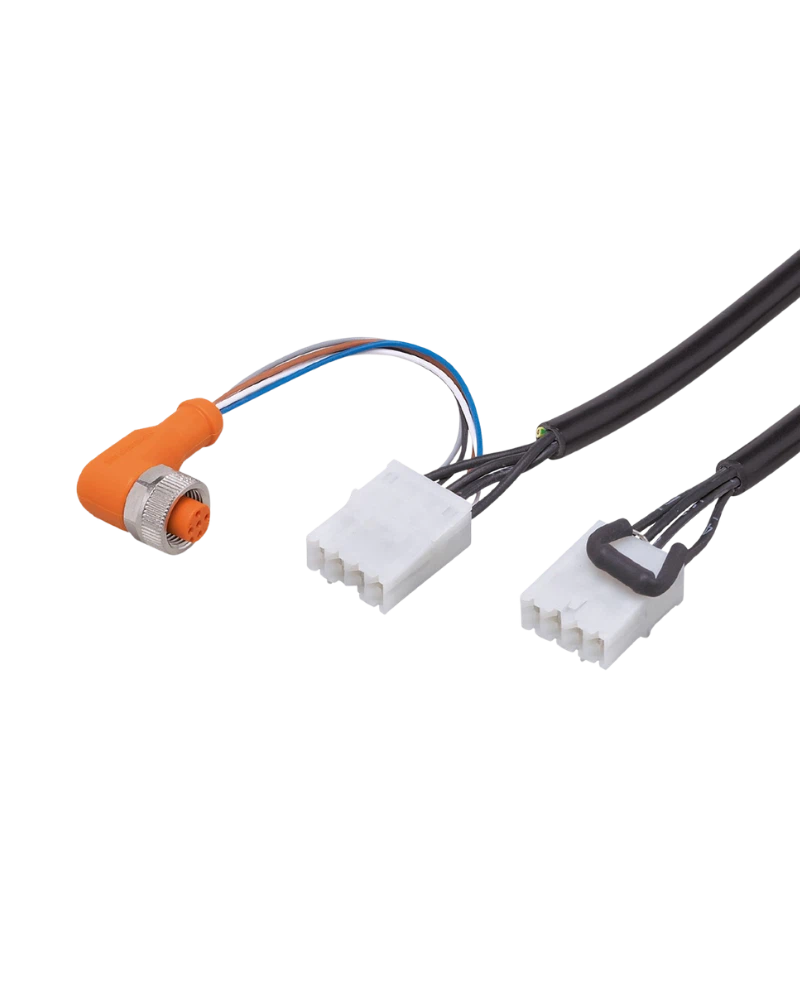

EC0453 is a prewired jumper designed to connect two BasicController CR04xx modules with one BasicDisplay CR045x. It provides power supply and CAN-bus communication through a factory-prepared 0.5 m cable assembly. A 120-ohm CAN-bus terminating resistor is integrated into the standard timer contact housing. It is designed for mobile and harsh applications with an operating range of -40°C to +85°C.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0453 is designed for systems containing two BasicControllers and one BasicDisplay. It provides a coordinated connection arrangement for the control and display components. This simplifies wiring between multiple modules. It is suitable for more advanced mobile-machine control architectures.
The jumper provides CAN-bus communication between the connected components. The integrated 120-ohm terminating resistor supports proper CAN network configuration. This reduces the need for an additional termination component. It provides a preconfigured connection for the compatible system.
EC0453 uses a factory-wired 0.5 m black PVC cable. The cable contains four 0.5 mm² / AWG 20 conductors. Prewired construction helps reduce wiring time and connection errors. The assembly includes the required contact housing and M12 connection.
The jumper is designed for mobile and harsh applications. It supports an ambient temperature range of -40°C to +85°C. The cable and connector arrangement provides a practical solution for mobile-machine control systems. The component weighs approximately 62.2–75 g depending on the documented revision/source.
Prewired jumper
For two BasicControllers
For one BasicDisplay
CAN-bus communication
Power supply connection
0.5 m cable
PVC black cable
4 × 0.5 mm² conductors
Integrated 120-ohm termination
Wide temperature range
Multi-controller systems
BasicController CR04xx
BasicDisplay CR045x
ecomatBasic systems
Mobile machine automation
Agricultural machinery
Construction equipment
CAN-bus control networks
| Specification | Details |
|---|---|
| Product Type | Prewired Jumper |
| Model | BasicCable/DisplayModules A |
| Order Number | EC0453 |
| Controllers | 2 × BasicController CR04xx |
| Display | 1 × BasicDisplay CR045x |
| Communication | CAN bus |
| Application | Voltage supply + CAN bus |
| Cable Length | 0.5 m |
| Cable Type | PVC |
| Cable Colour | Black |
| Conductor Size | 4 × 0.5 mm² / AWG 20 |
| Connector | M12 |
| CAN Termination | 120 ohm |
| Ambient Temperature | -40°C to +85°C |
| Weight | Approx. 62.2–75 g |
| Recommended Cover | EC0402 |
| Pack Quantity | 1 pc. |
