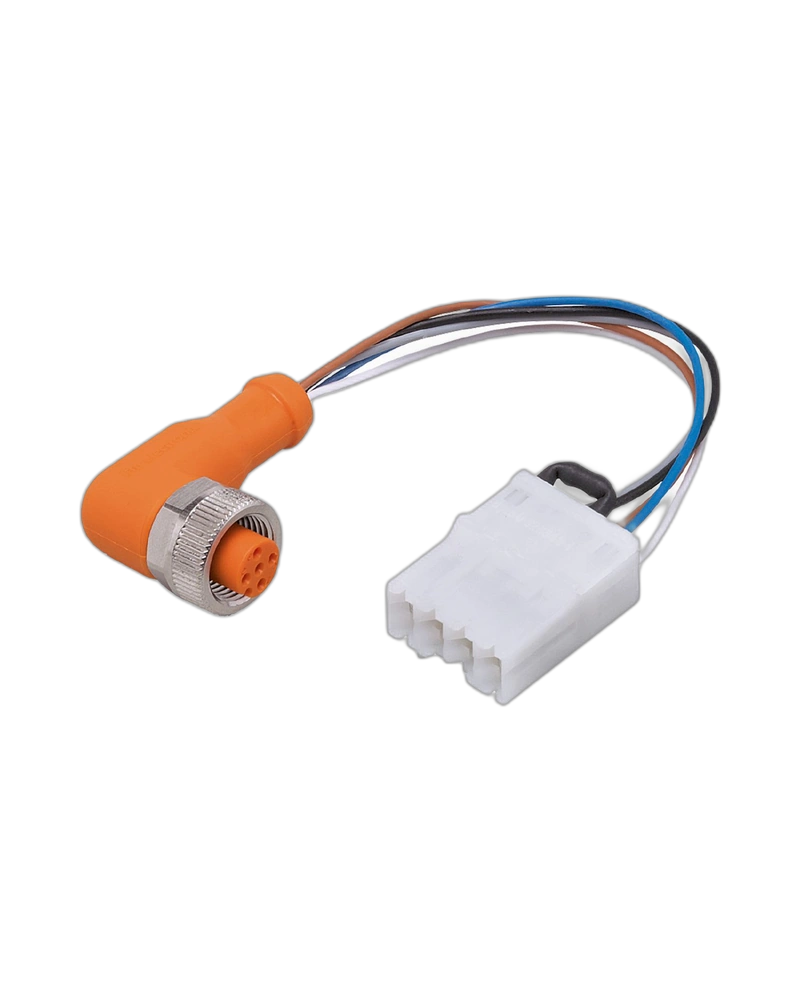

EC0452 is a short prewired jumper designed to connect a BasicController CR04xx with a BasicDisplay CR045x. It supports both power supply and CAN-bus communication using a 0.1 m cable and M12 connector. Integrated 120-ohm termination resistors simplify CAN-bus network configuration. The compact assembly is intended for internal display connections in mobile-machine systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0452 provides a dedicated connection between one BasicController and one BasicDisplay. It supports the electrical interface required for both power and communication. The short cable length is suitable for installations where the display is mounted close to the controller. It helps keep internal wiring compact.
The jumper supports CAN-bus signal transmission between the controller and display. Integrated CAN-bus terminating resistors are included in the contact housing and M12 connector. This simplifies network configuration and reduces the need for separate termination components.
EC0452 uses a 0.1 m cable with five 0.34 mm² conductors. The short cable length is suitable for internal display installations. An M12 connector provides a secure connection to compatible components. The prewired format reduces installation effort.
The jumper is designed for BasicController and BasicDisplay systems used in mobile machinery. It supports operation from -40°C to +85°C. The approximately 23.2 g weight makes it a lightweight internal connection solution. It is recommended for use with cover EC0402.
Prewired jumper
BasicController compatible
BasicDisplay compatible
CAN-bus communication
Power supply connection
0.1 m cable
5 × 0.34 mm² conductors
M12 connector
Integrated 120-ohm termination
Wide temperature range
BasicController-to-display connection
BasicDisplay CR045x
ecomatBasic systems
Mobile machine HMIs
Operator display systems
Vehicle control panels
CAN-bus wiring
Internal control-system wiring
| Specification | Details |
|---|---|
| Product Type | Prewired Jumper |
| Model | BasicCable/Display inboard |
| Order Number | EC0452 |
| Controller | 1 × BasicController CR04xx |
| Display | 1 × BasicDisplay CR045x |
| Communication | CAN bus |
| Application | Voltage supply + CAN bus |
| Cable Length | 0.1 m |
| Conductor Size | 5 × 0.34 mm² |
| Connector | 1 × M12 |
| CAN Termination | 120 ohm |
| Ambient Temperature | -40°C to +85°C |
| Weight | 23.2 g |
| Recommended Cover | EC0402 |
| Pack Quantity | 1 pc. |
