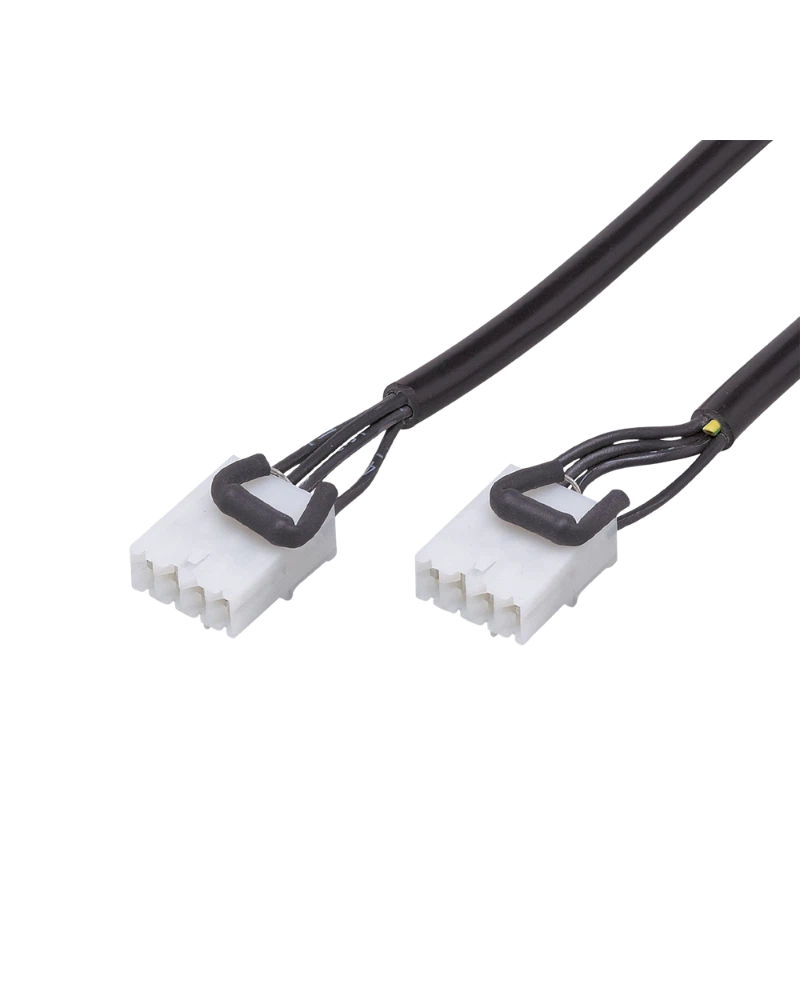

EC0451 is a prewired jumper designed for connecting two compatible BasicController modules in ecomatBasic systems. It provides power supply and CAN-bus signal transmission through a factory-prepared cable assembly. Integrated 120-ohm CAN-bus terminating resistors simplify network installation. The 0.5 m black PVC cable is suitable for mobile-machine control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0451 is designed for connecting two BasicController CR04xx modules. The prewired configuration simplifies electrical installation between compatible control units. It supports both power supply and CAN-bus communication. This reduces wiring preparation during machine assembly.
The jumper is designed for reliable signal transmission between CAN-enabled control components. Integrated 120-ohm CAN-bus terminating resistors are included in the standard timer contact housings. This helps simplify CAN network termination. The connection is intended for ecomatBasic applications.
The cable is supplied prewired and uses a 0.5 m black PVC cable. It contains four 0.5 mm² / AWG 20 conductors. The factory-prepared assembly reduces installation time and helps minimise wiring errors. The cable is supplied ready for connection.
EC0451 supports an ambient temperature range of -40°C to +85°C. This broad operating range makes it suitable for mobile machinery exposed to changing environmental conditions. The compact assembly weighs approximately 46.4 g. It is supplied as one complete jumper.
Prewired jumper
For two BasicControllers
CAN-bus communication
Power supply connection
Integrated 120-ohm termination
0.5 m cable
PVC black cable
4 × 0.5 mm² conductors
Wide temperature range
Ready-to-install assembly
BasicController connection
ecomatBasic systems
CAN-bus networks
Mobile machine control
Agricultural machinery
Construction machinery
Machine controller wiring
OEM automation systems
| Specification | Details |
|---|---|
| Product Type | Prewired Jumper |
| Model | BasicCable/2 Modules |
| Order Number | EC0451 |
| Compatible Controller | BasicController CR04xx |
| Number of Modules | 2 |
| Communication | CAN bus |
| Application | Power supply + CAN bus |
| Cable Length | 0.5 m |
| Cable Type | PVC |
| Cable Colour | Black |
| Cable Diameter | Approx. 5 mm |
| Conductor Size | 4 × 0.5 mm² / AWG 20 |
| CAN Termination | 120 ohm |
| Ambient Temperature | -40°C to +85°C |
| Weight | 46.4 g |
| Pack Quantity | 1 pc. |
