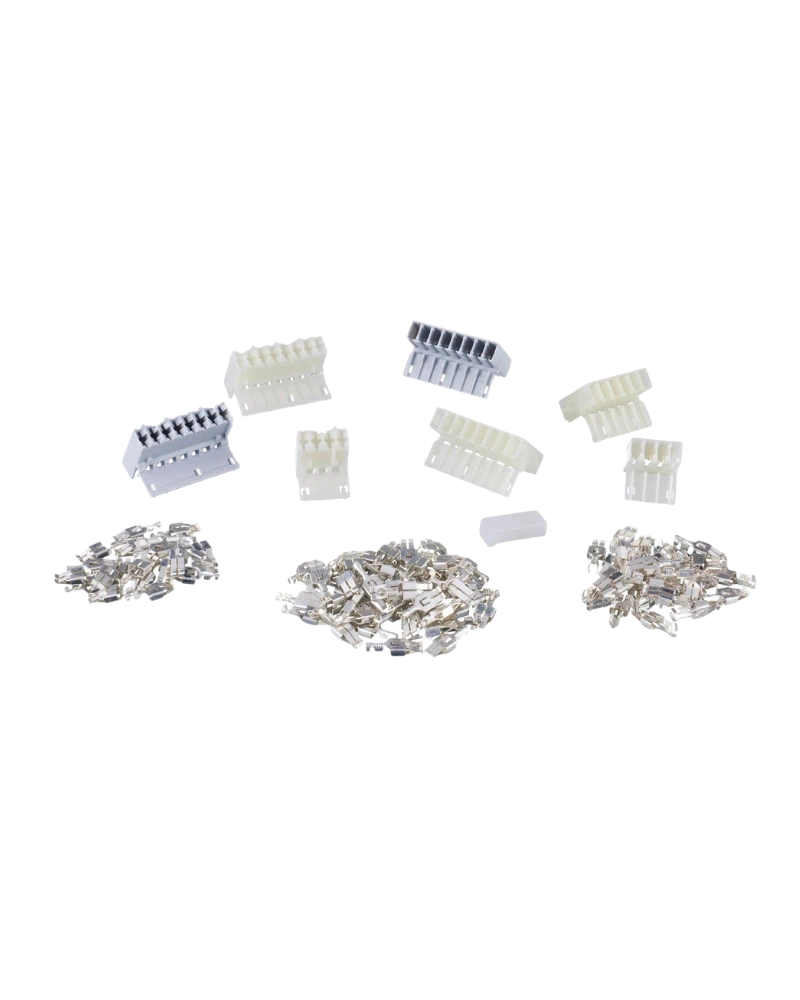

EC0413 is a connection set containing standard timer contact housings and contacts for ecomatBasic systems. It provides a practical collection of wiring components for connecting compatible control-system interfaces. The set includes multiple contact housings, timer contacts and a blade female terminal. It is designed to simplify field wiring and connection preparation for mobile-machine control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0413 provides multiple standard timer contact housings and contacts in one package. The set is intended for ecomatBasic applications and provides components required for wiring work. This reduces the need to source individual housings and terminals separately. It is useful for installation and service operations.
The set includes different housing configurations including 8-wire, 1-pole, 6-wire and 4-wire versions. This provides flexibility when wiring different circuit requirements. The supplied components can be selected according to the connection arrangement. It is suitable for control-system assembly and service work.
The included standard timer contacts are tin-plated and support different conductor cross-sections. Contacts are supplied for 0.2–0.5 mm², 0.5–1.0 mm² and 1.0–2.5 mm² wiring. This allows the set to support different wiring requirements. A blade female terminal is also included.
EC0413 is designed for ecomatBasic control-system applications. The connection components provide a practical solution for wiring and service tasks. Its range of included terminals makes it useful during machine assembly and maintenance. The complete set is supplied as one package.
ecomatBasic connection set
Multiple timer contact housings
Multiple wire configurations
Tin-plated contacts
Different conductor sizes
Blade female terminal included
Service-friendly component set
Installation-ready components
Compact packaging
Mobile automation compatible
ecomatBasic controllers
Mobile-machine control systems
Control-panel wiring
Machine assembly
Electrical service work
Controller connection
OEM machine production
Replacement wiring
| Specification | Details |
|---|---|
| Product Type | Connection Set |
| Model | ecomatBasic/Connection Set |
| Order Number | EC0413 |
| Application | ecomatBasic |
| 8-Wire Housing | 4 × grey |
| 8-Wire Housing | 4 × natural |
| 1-Pole Housing | 1 × natural |
| 6-Wire Housing | 1 × natural |
| 4-Wire Housing | 2 × natural |
| Timer Contacts | 20 × 0.2–0.5 mm² |
| Timer Contacts | 50 × 0.5–1.0 mm² |
| Timer Contacts | 30 × 1.0–2.5 mm² |
| Blade Female Terminal | 1 × 6.3 × 0.8 mm |
| Contact Finish | Tin-plated |
| Weight | 105.1 g |
| Pack Quantity | 1 pc. |
