EC0412 is a complete RAM mounting set designed for stable and secure installation of graphic displays and dialogue units. The set combines mounting plates and a 95 mm mounting arm into a compact adjustable assembly. Its robust construction is intended for mobile machines and desktop-style use in driver cabins. The RAM system allows flexible positioning of the display in different directions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0412 combines the required RAM components into a single mounting set. It includes EC0409, EC0411 and EC0410 components. This makes it easier to create a complete display mounting arrangement without sourcing each component separately. The set is designed for graphic displays and dialogue devices.
The RAM mounting system allows movement in different directions. This provides flexibility when positioning the display for operator visibility. The adjustable configuration is useful in driver cabins where viewing angles may vary. It supports ergonomic operator-interface installation.
EC0412 uses aluminium components with a rubber ball interface. The robust design is intended for mobile machinery and demanding operator environments. The construction provides stable display support while maintaining a relatively compact assembly. It can be used as a desktop-style unit.

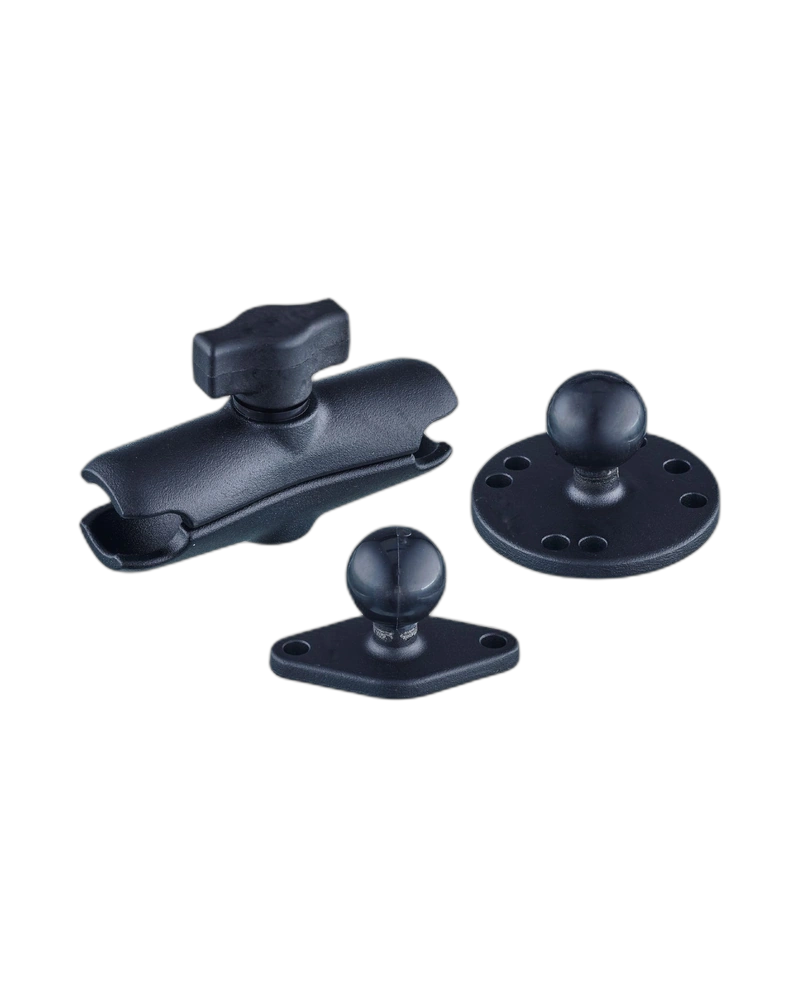

The complete set has approximate dimensions of 128 × 62 × 62 mm and a weight of 227.95 g. The supplied components include one EC0409 mounting plate, one EC0411 mounting plate and one EC0410 short mounting arm. This provides a practical ready-to-assemble mounting solution.
Complete RAM mounting set
For graphic displays
For dialogue units
1-inch ball system
Flexible positioning
95 mm mounting arm
Aluminium construction
Rubber ball interface
Desktop installation
Mobile-machine suitable
Graphic display mounting
Mobile machine cabins
Driver displays
Construction machinery
Agricultural equipment
Vehicle HMI systems
Operator dialogue units
Desktop display installations
| Specification | Details |
|---|---|
| Product Type | RAM Mount Set |
| Model | Display/RAM-B-Set/Diamond |
| Order Number | EC0412 |
| Mounting System | RAM |
| Ball Size | 1 inch |
| Included EC0409 | 1 × mounting plate |
| Included EC0411 | 1 × trapezoidal mounting plate |
| Included EC0410 | 1 × 95 mm mounting arm |
| Dimensions | 128 × 62 × 62 mm |
| Weight | 227.95 g |
| Main Material | Black-anodised aluminium |
| Ball Material | Rubber |
| Mounting Type | Desktop / Stand Unit |
| Pack Quantity | 1 set |
