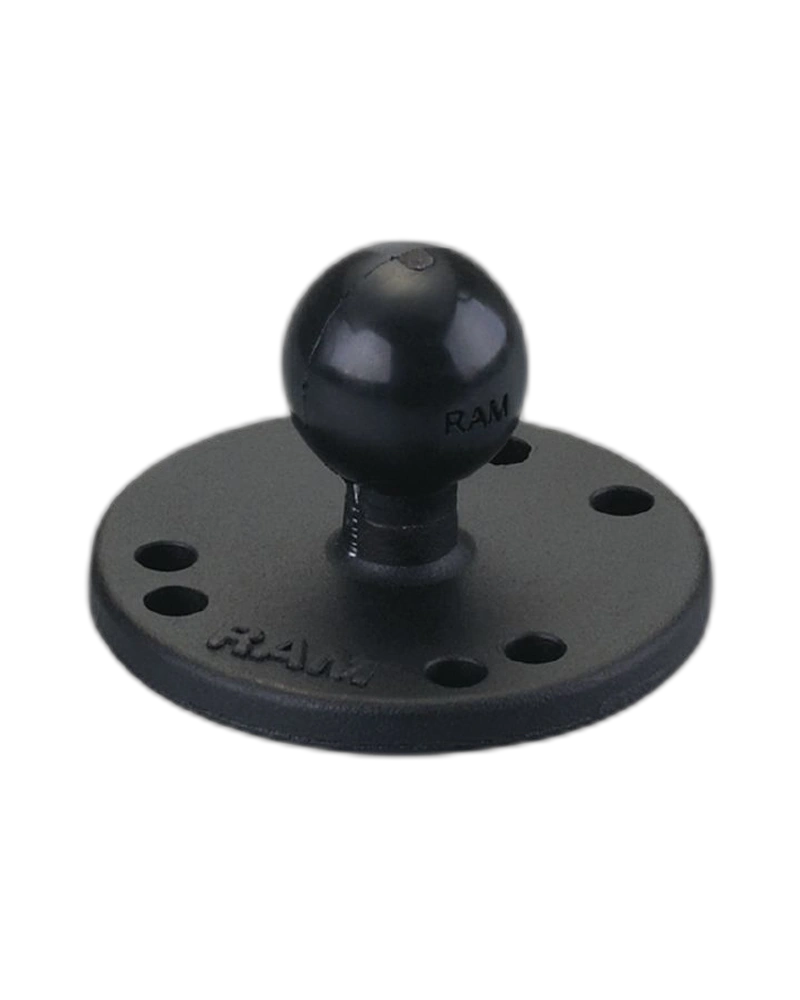

EC0409 is a RAM mounting plate designed for use with R360 BasicDisplay and BasicDisplay XL systems. It combines a black-anodised aluminium mounting plate with a rubber RAM ball. The 1-inch ball design allows connection to compatible RAM mounting arms. It provides a stable and flexible foundation for desktop display installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0409 provides the mounting-plate section of a modular RAM display system. It is designed to work with compatible RAM arms and display carriers. The modular construction makes it possible to configure the display position according to installation requirements. It supports secure desktop mounting.
The integrated ball uses the standard 1-inch RAM mounting format. This allows the mounting plate to connect with compatible RAM components. The ball arrangement provides flexibility in display positioning. It is particularly useful where adjustable operator viewing angles are required.
The mounting plate is manufactured from black-anodised aluminium. The ball is made from rubber to provide the required RAM mounting interface. This combination offers a practical balance of durability and flexibility. The component is suitable for mobile-machine environments.
EC0409 measures approximately 38.5 × 62 × 62 mm and weighs about 57.65 g. Its compact design helps minimise the space occupied by the mounting assembly. Two mounting plates are required per mounting arm according to the product documentation. It is supplied as one piece.
RAM mounting plate
1-inch RAM ball
Black-anodised aluminium
Rubber ball construction
Compact dimensions
Lightweight design
BasicDisplay compatible
BasicDisplay XL compatible
Modular mounting
Desktop installation
BasicDisplay mounting
BasicDisplay XL mounting
Mobile-machine dashboards
Driver cabins
Construction machinery
Agricultural machinery
Operator HMI systems
RAM mounting assemblies
| Specification | Details |
|---|---|
| Product Type | Mounting Plate |
| Model | Display/RAM-B-Ball |
| Order Number | EC0409 |
| Mounting System | RAM |
| Ball Size | 1 inch (B) |
| Compatible Displays | BasicDisplay / BasicDisplay XL |
| Mounting Type | Desktop / Stand Unit |
| Plate Material | Black-anodised aluminium |
| Ball Material | Rubber |
| Dimensions | 38.5 × 62 × 62 mm |
| Weight | 57.65 g |
| Required Quantity | 2 pcs. per mounting arm |
| Pack Quantity | 1 pc. |
