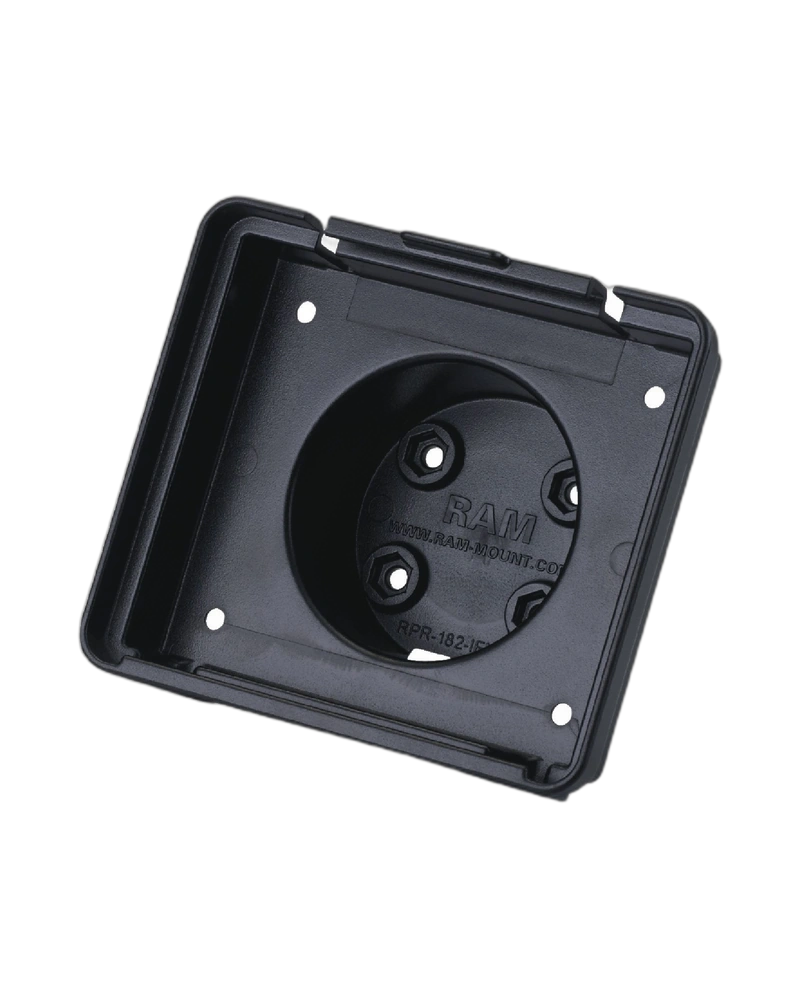

EC0408 is a display carrier designed for mounting the R360 BasicDisplay XL using a RAM mounting system. It provides a stable interface between the display and compatible RAM mounting components. The black plastic construction keeps the assembly lightweight while providing practical mechanical support. It is intended for desktop-style installation in mobile-machine operator cabins.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0408 is designed for use with the R360 BasicDisplay XL. The dedicated carrier provides a secure interface between the display and RAM mounting system. It allows the larger display to be positioned conveniently for the operator. This makes it suitable for mobile-machine HMI installations.
The carrier uses the 1-inch RAM mounting system and can be combined with compatible RAM arms and mounting plates. This provides flexibility when designing a display installation. The modular mounting approach makes replacement and configuration easier. It is suitable for desktop-style operator installations.
The carrier is manufactured from black plastic, providing a practical balance between strength and weight. Its approximately 116 g weight helps keep the complete RAM assembly manageable. The compact construction supports installation where space is limited. It is designed for reliable use with compatible displays.
EC0408 is supplied with screws and nuts for display mounting. The integrated carrier simplifies assembly with the RAM mounting components. It supports a clean and secure display installation. The component is supplied individually for flexible system configuration.
Designed for BasicDisplay XL
RAM mount system compatible
1-inch ball mounting system
Black plastic construction
Lightweight design
Secure display support
Screws included
Nuts included
Desktop installation
Mobile-machine suitable
BasicDisplay XL mounting
Mobile machine cabins
Construction machinery
Agricultural machinery
Vehicle operator interfaces
Desktop HMI systems
Machine control stations
RAM mounting systems
| Specification | Details |
|---|---|
| Product Type | Display Carrier |
| Model | R360/BasicDisplay/CarrierXL |
| Order Number | EC0408 |
| Compatible Display | BasicDisplay XL |
| Mounting System | RAM Mount |
| Ball Size | 1 inch (B) |
| Mounting Type | Desktop / Stand Unit |
| Housing Material | Black plastic |
| Dimensions | 116 × 131 × 69 mm |
| Weight | 116 g |
| Included Accessories | Screws, nuts |
| Pack Quantity | 1 pc. |
