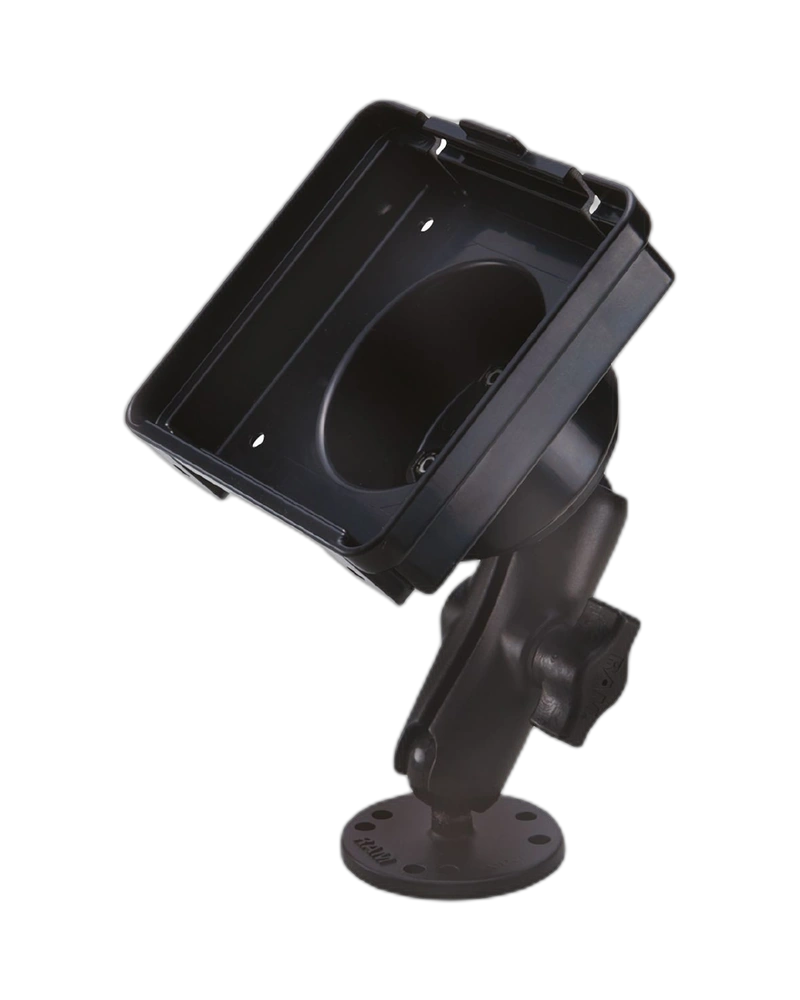

EC0406 is a RAM mounting set designed for the R360 BasicDisplay XL. It provides stable and adjustable positioning for larger graphic displays in mobile-machine operator cabins. The set includes a mounting arm, 1-inch ball mounting plate and BasicDisplay XL carrier. Black-anodised aluminium, rubber and durable plastic components provide a robust mounting solution.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0406 is specifically designed to support the BasicDisplay XL display. The dedicated display carrier provides a secure interface between the display and RAM mounting system. This allows the larger display to be positioned conveniently for the operator. It is suitable for mobile-machine HMI applications.
The RAM mounting system provides flexible positioning of the display. The 1-inch ball allows adjustment of the viewing angle and orientation. This is useful when operator visibility changes depending on the machine environment. The system supports ergonomic display positioning.
The mounting arm and plate are made from black-anodised aluminium. A rubber ball provides the flexible mounting interface, while the display carrier is made from black plastic. The combination provides a lightweight but durable mounting assembly.
EC0406 is intended for use as a desktop unit. It is suitable for installation in the driver's cabin of mobile machines. The mounting system provides stable display positioning during machine operation. It is suitable for agricultural, construction and other mobile equipment.
Designed for BasicDisplay XL
RAM mounting system
1-inch ball
Adjustable display position
Mounting arm included
Mounting plate included
XL display carrier included
Black-anodised aluminium
Rubber ball
Mobile-machine suitable
Mobile machine cabins
Construction equipment
Agricultural machinery
Vehicle operator interfaces
BasicDisplay XL installations
Desktop HMI systems
Machine control stations
Operator display systems
| Specification | Details |
|---|---|
| Product Type | RAM Mount Set |
| Model | R360/BasicDisplayXL/RAM-Set |
| Order Number | EC0406 |
| Compatible Display | BasicDisplay XL |
| Mounting Type | Desktop / Stand Unit |
| Ball Size | 1 inch |
| Mounting Arm | Included |
| Mounting Plate | Included |
| Display Carrier | Included |
| Arm Material | Black-anodised aluminium |
| Plate Material | Black-anodised aluminium |
| Ball Material | Rubber |
| Display Carrier Material | Black plastic |
| Dimensions | 197 × 131 × 116 mm |
| Weight | 365 g |
| Pack Quantity | 1 set |
