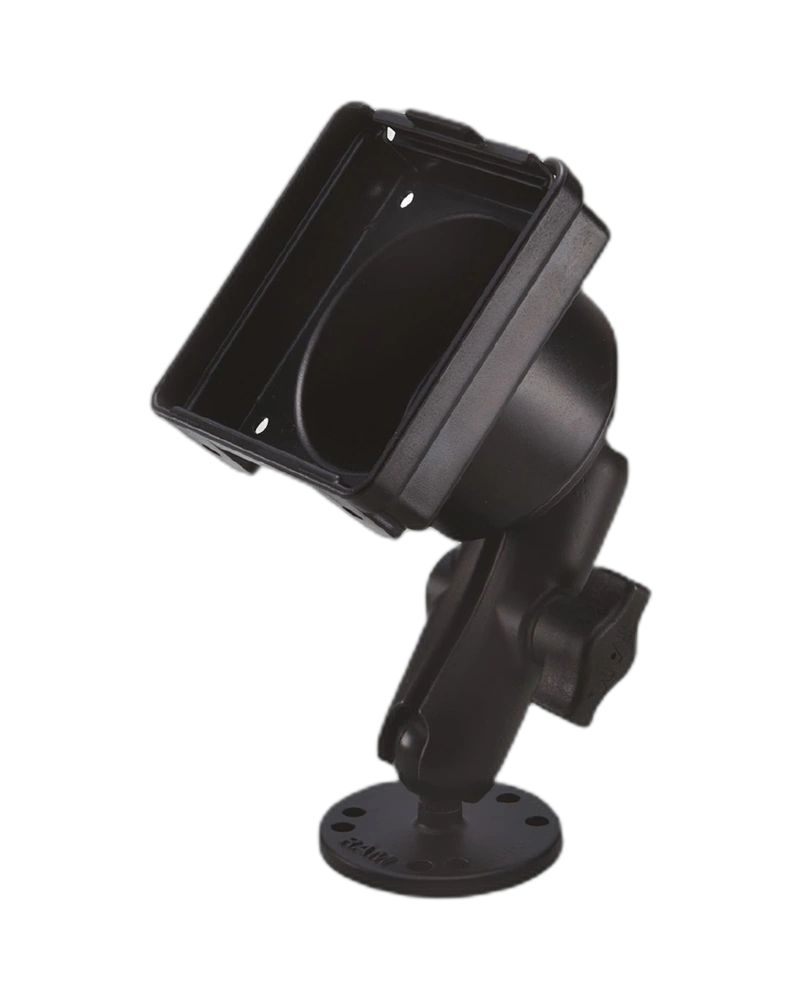

EC0405 is a RAM mounting set designed for secure installation of R360 BasicDisplay graphic displays. It is intended for use as a desktop-style unit in mobile machine operator cabins. The set provides flexible positioning through a movable RAM mounting system. Its robust aluminium and rubber construction is designed for demanding mobile applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0405 provides a flexible mounting system for positioning a BasicDisplay in the desired viewing direction. The RAM-style ball mounting allows the display to be adjusted through multiple orientations. This is useful where operator visibility and ergonomics are important. It provides more flexibility than fixed mounting.
The set includes a mounting arm, mounting plate with 1-inch ball and display carrier for the BasicDisplay. These components work together as a complete display-support system. The integrated design simplifies installation. It is supplied as one complete mounting set.
The mounting arm and mounting plate use black-anodised aluminium. The ball is made from rubber and the display carrier from black plastic. These materials provide a practical combination of strength and flexibility. The robust design is intended for mobile-machine applications.
EC0405 is intended for use as a desktop-style device in the driver's cabin. The adjustable mounting allows operators to position the display for comfortable viewing. It supports stable and secure installation. This makes it useful for vehicle and machine operator interfaces.
RAM mounting system
Designed for BasicDisplay
1-inch ball size
Adjustable positioning
Mounting arm included
Mounting plate included
Display carrier included
Black-anodised aluminium
Rubber ball
Mobile-machine suitable
Driver cabins
Mobile machine displays
Agricultural machinery
Construction equipment
Vehicle operator interfaces
Desktop display installations
Machine control stations
Operator HMI systems
| Specification | Details |
|---|---|
| Product Type | RAM Mount Set |
| Model | R360/BasicDisplay/RAM-Set |
| Order Number | EC0405 |
| Compatible Display | BasicDisplay |
| Mounting Type | Desktop / Stand Unit |
| Ball Size | 1 inch |
| Mounting Arm | Included |
| Mounting Plate | Included |
| Display Carrier | Included |
| Arm Material | Black-anodised aluminium |
| Plate Material | Black-anodised aluminium |
| Ball Material | Rubber |
| Display Carrier Material | Black plastic |
| Dimensions | 197 × 93.2 × 93.2 mm |
| Weight | 333 g |
| Pack Quantity | 1 set |
