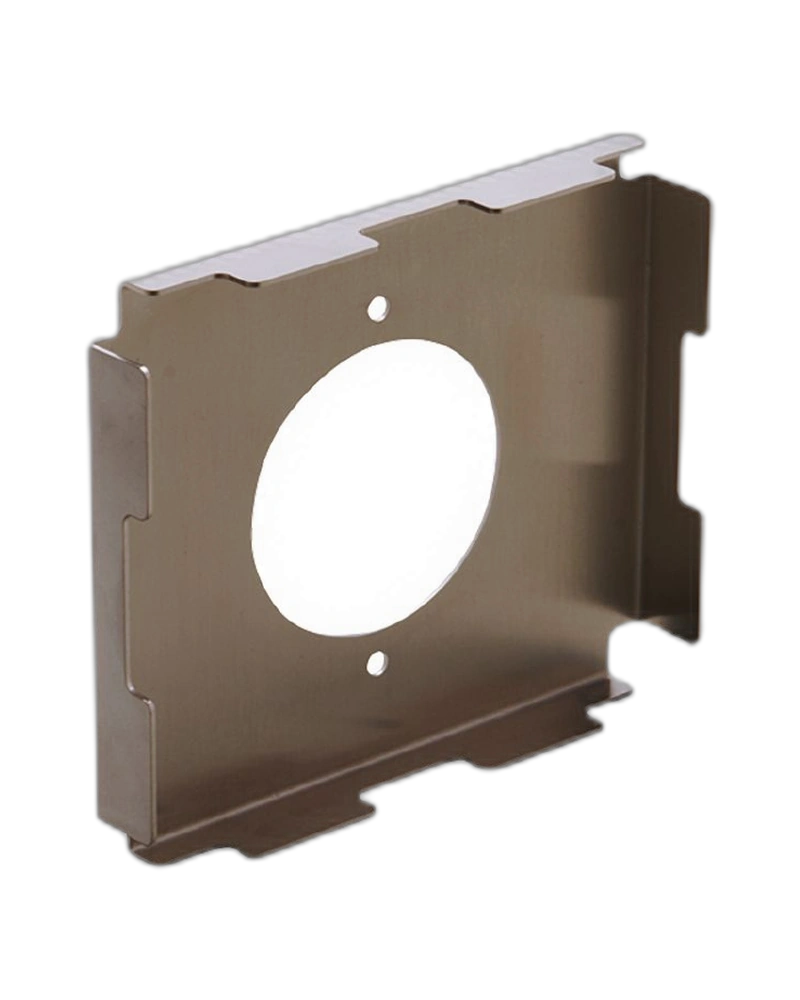

EC0404 is a stainless-steel mounting frame designed for the R360 BasicDisplay XL CR0452. It provides a secure panel mounting solution for larger mobile-machine displays. The frame uses durable stainless steel and a compact installation profile. It is suitable for integrating the BasicDisplay XL into operator panels and vehicle dashboards.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0404 is designed specifically for the BasicDisplay XL CR0452. It provides a dedicated fitting interface for the larger display format. The frame supports stable positioning within a panel. This creates a professional and secure operator-interface installation.
The frame is intended for panel installation. It allows the display to be integrated into mobile-machine dashboards and control enclosures. The mounting method saves space and keeps the display securely positioned. It is suitable for OEM machine construction.
EC0404 is manufactured from stainless steel 304 / 1.4301. This material provides mechanical strength and good resistance to environmental exposure. It is suitable for industrial and mobile applications. The frame provides durability without excessive weight.
The frame measures approximately 105 × 15.6 × 120 mm. Its dimensions are designed around the BasicDisplay XL installation requirements. The compact frame integrates cleanly into equipment panels. It is supplied as one mounting component.
Designed for BasicDisplay XL CR0452
Panel mounting
Stainless-steel construction
Secure display support
Compact installation
Industrial durability
Space-efficient design
OEM-friendly mounting
Clean dashboard integration
Mobile machine dashboards
Operator panels
Vehicle control systems
Construction machinery
Agricultural machinery
BasicDisplay XL CR0452
Industrial HMI installations
OEM equipment
| Specification | Details |
|---|---|
| Product Type | Mounting Frame |
| Model | R360/DisplayXL/FittingPanel |
| Order Number | EC0404 |
| Compatible Display | BasicDisplay XL CR0452 |
| Mounting Type | Panel |
| Material | Stainless steel 304 / 1.4301 |
| Dimensions | 105 × 15.6 × 120 mm |
| Weight | Approx. 153.5 g |
| Application | BasicDisplay XL mounting |
| Pack Quantity | 1 pc |
