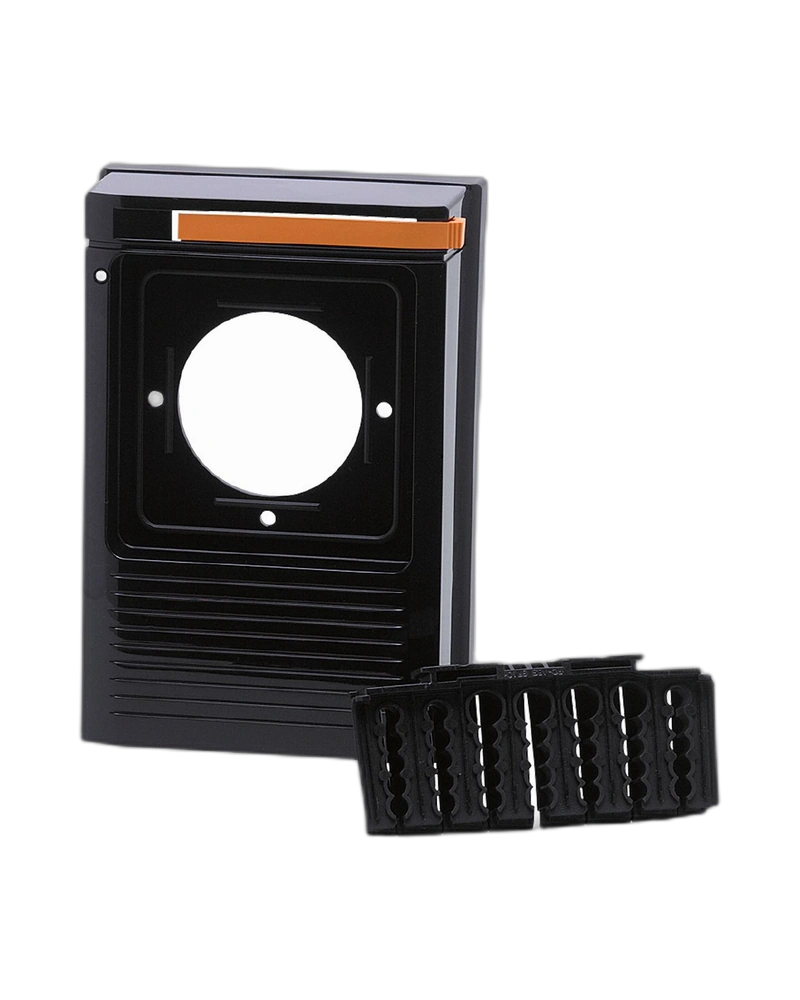

EC0402 is a protective cover designed for R360 BasicController systems with an integrated display recess. It is intended for use with the BasicDisplay CR0451 and includes a cable seal. The cover provides IP54 protection and helps protect equipment from moisture and salt spray. Its robust design is suitable for mobile machines exposed to shock and vibration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0402 provides a dedicated display recess for mounting the BasicDisplay CR0451 with the compatible BasicController. This creates a clean integrated installation. The design helps keep the display and controller assembly organized. It is useful for compact mobile-machine control panels.
The cover includes a cable seal to support protected cable routing. This helps improve environmental protection around the controller installation. The sealing arrangement works with the cover's IP54 protection. It is particularly useful in outdoor and mobile equipment.
EC0402 protects the installed control system against moisture and salt spray. IP54 protection helps prevent harmful environmental ingress under specified conditions. The cover is designed for demanding mobile-machine environments. It provides additional protection compared with an open installation.
The cover is designed for high shock and vibration resistance. This makes it suitable for construction, agricultural and other mobile machinery. Its wide operating-temperature capability supports outdoor applications. Installation is designed to be quick and secure.
Integrated display recess
Compatible with BasicDisplay CR0451
Cable seal included
IP54 protection
Moisture protection
Salt-spray protection
Shock resistant
Vibration resistant
Wide temperature range
Quick installation
Mobile machine control
Agricultural machinery
Construction machinery
Outdoor equipment
R360 BasicController
CR0451 BasicDisplay
Vehicle control panels
Mobile operator interfaces
| Specification | Details |
|---|---|
| Product Type | Cover / Display Intake |
| Model | R360/cover/display intake |
| Order Number | EC0402 |
| Compatible Display | BasicDisplay CR0451 |
| Compatible Controller | BasicController CR04xx |
| Display Recess | Integrated |
| Cable Seal | Included |
| Protection | IP54 |
| Dimensions | 163 × 112 × 50 mm |
| Weight | Approx. 230.5–250 g |
| Shock Resistance | High |
| Vibration Resistance | High |
| Application | Mobile machines |
| Pack Quantity | 1 pc |
