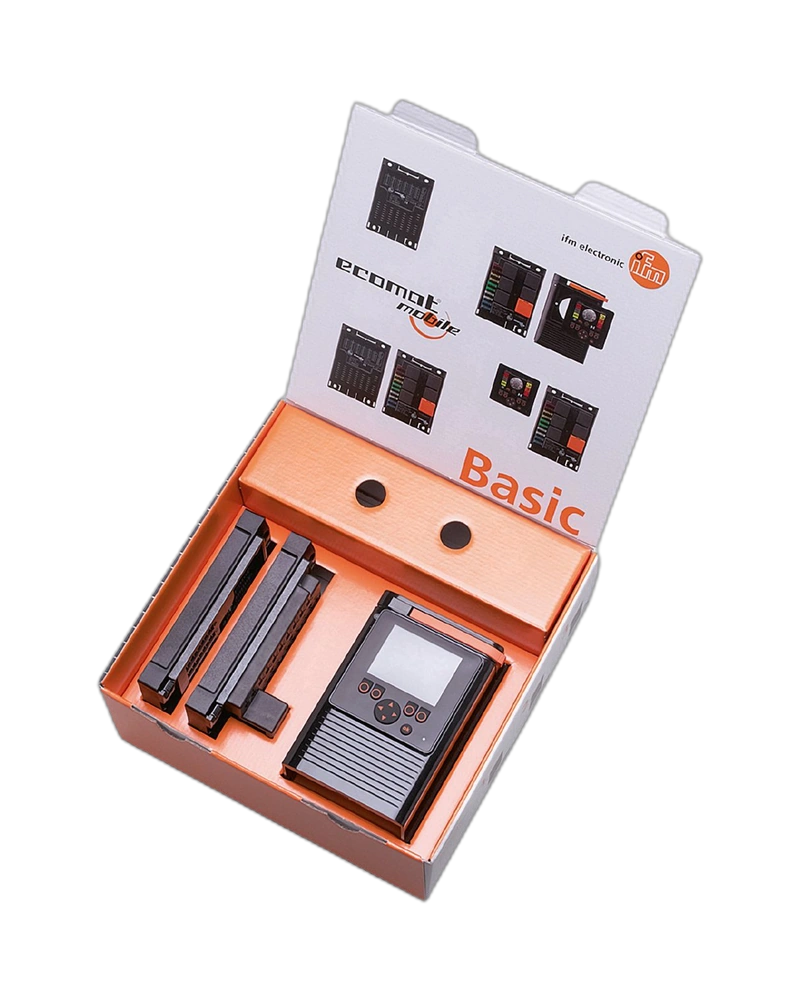

EC0400 is an ecomatmobile Basic starter set designed to provide a complete introduction to mobile machine control technology. The set combines a BasicController, BasicRelay, BasicDisplay and required accessories into one development package. It includes prewired components, software and mounting accessories for faster system setup. The starter set is intended for development, testing and evaluation of mobile control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EC0400 brings together the key components required to build an ecomatmobile Basic control system. The package includes the CR0403 BasicController, CR0421 BasicRelay and CR0451 BasicDisplay. It also includes the appropriate cover, interface and supporting accessories. This reduces the effort required to source individual components.
The starter set is designed for control applications in mobile machines. The CR0403 controller supports configurable input/output functions and IEC 61131-3 programming. The system provides CAN interfaces for communication with connected devices. This makes it suitable for learning, prototyping and control-system development.
The included CR0451 BasicDisplay provides a 2.8-inch colour display with 320 × 240 pixel resolution. It includes five freely programmable backlit function keys and a navigation key. The display communicates through CAN and supports IEC 61131-3 programming with target visualisation.
The starter set includes software, a plug-in power supply, jumper, automotive relays, fuses and mounting accessories. IFM also provides starter-set software containing pre-loaded projects for the EC0400 components. This makes the package useful for development and demonstration environments.
Complete mobile control starter set
BasicController CR0403
BasicRelay CR0421
BasicDisplay CR0451
CAN-based communication
IEC 61131-3 programming
Prewired connection cables
Software included
Plug-in power supply included
Automotive relays included
Automotive fuses included
Mounting accessories included
Mobile machine control
Agricultural machinery development
Construction machinery
Vehicle automation
Machine-control prototyping
Control-system testing
CAN communication development
Training and demonstration
| Specification | Details |
|---|---|
| Product Type | Controller Starter Set |
| Model | R360/Starterkit-Accessories |
| Order Number | EC0400 |
| Main Controller | CR0403 BasicController |
| Relay Module | CR0421 BasicRelay |
| Display | CR0451 BasicDisplay |
| Cover | EC0402 |
| Communication Interface | CAN / RS232-USB interface EC2112 |
| Programming | IEC 61131-3 |
| Controller I/O | 24 total on CR0403 |
| CR0403 CAN Interfaces | 2 |
| Display Size | 2.8 inch |
| Display Resolution | 320 × 240 pixels |
| Display Keys | 5 programmable function keys + navigation key |
| Software | Included |
| Power Supply | Plug-in power supply included |
| Relays | 2 automotive changeover relays |
| Fuses | 1 × 3 A + 4 × 15 A |
| Mounting Accessories | Included |
| Weight | 2.292 kg |
| Pack Quantity | 1 set |
