Explore performance details, construction highlights, applications, and technical information in one clear overview.

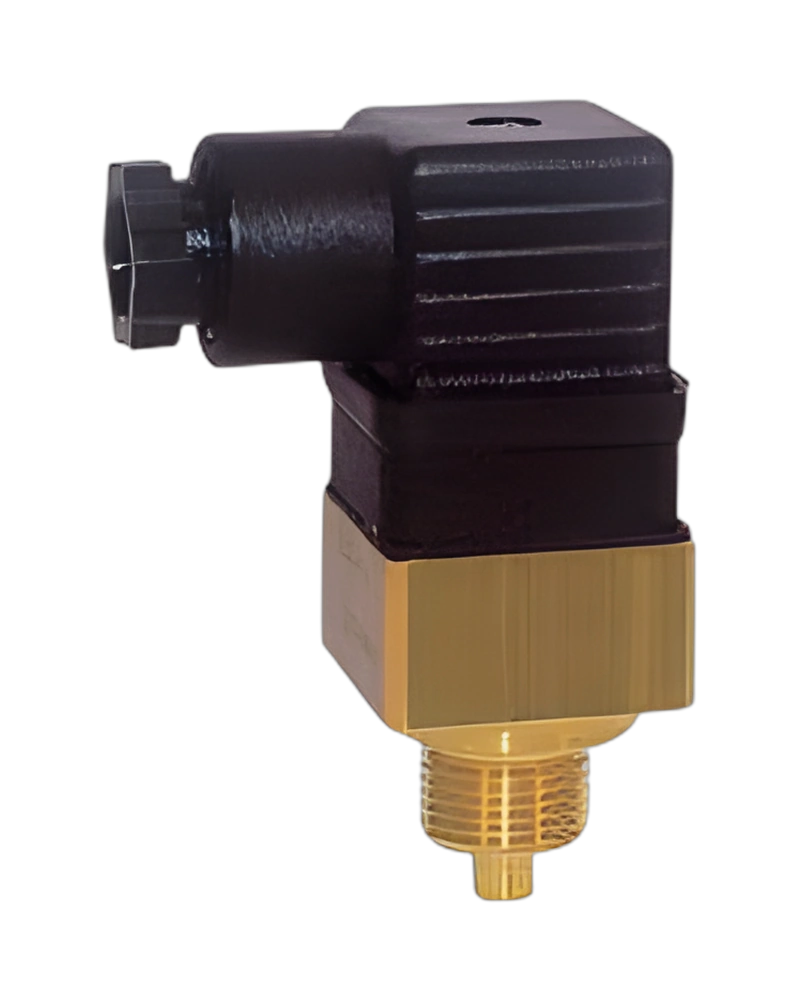

The EBT90CAM12 - EBT - Non-adjustable thermostat with connector - EBT non-adjustable thermostat from ELETTROTEC is a precision temperature control device designed for industrial applications. This product features a switch rating of 10A / 250 Vac, maximum pressure of 300 bar, and a maximum temperature differential of 16°C. It operates within an environmental temperature range of -20°C to +120°C, making it suitable for demanding industrial environments.
The EBT90CAM12 - EBT - Non-adjustable thermostat with connector - EBT non-adjustable thermostat with connector is a robust industrial temperature control device engineered for high-performance applications. This ELETTROTEC product delivers precise temperature switching capabilities with a switch rating of 10A / 250 Vac, ensuring reliable operation in critical systems. Its exceptional pressure tolerance of up to 300 bar and temperature differential capability of 16°C make it ideal for applications requiring stringent thermal control. The device operates effectively across a wide environmental temperature range from -20°C to +120°C, providing consistent performance in extreme conditions.
The EBT90CAM12 - EBT - Non-adjustable thermostat with connector - EBT non-adjustable thermostat features a switch rating of 10A / 250 Vac, with an additional 24 Vdc / 5 A capability. It operates within a maximum pressure range of 300 bar and a maximum temperature differential of 16°C. The EBT90CAM12 - EBT - Non-adjustable thermostat with connector is designed to function in environmental temperatures ranging from -20°C to +120°C. A tightening torque of 30 Nm ensures secure installation without damage.
This thermostat is suitable for industrial applications requiring precise temperature control in high-pressure environments. Its robust construction and wide operational temperature range make it ideal for use in chemical processing, HVAC systems, and other industrial processes where thermal stability is critical.
Installation requires a tightening torque of 30 Nm to ensure proper connection without over-tightening. The device supports multiple connection types including G 3/8" cylindrical, G 1/2" cylindrical, M22x1.5 cylindrical, 1/4 NPT cylindrical, and G 1/4" cylindrical connections for versatile integration into various systems.
The EBT90CAM12 - EBT - Non-adjustable thermostat with connector - EBT - Non-adjustable thermostat with connector is an industrial Temperature. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Switching capacity 250 Vac / 10 A | Switch rating 10A / 250 Vac |
| Max. pressure 80 bar | Max pressure 80 bar |
| Max. differential 16°C | Max. differential DT 16°C |
| Max. temperature 120°C | Max. temperature 120°C |
| Tightening torque 30 Nm | Tightening torque 30 Nm |
| B C D E H | G 3/8” cylindrical / Parallel G 1/2” cylindrical / Parallel M22x1.5 cylindrical / Parallel 1/4 NPT cylindrical / Parallel G 1/4” cylindrical / Parallel 22 22 22 22 22 |
| EBT | 30°C ± 5°C 58 22 200 ~92 |
| Pressure max. 300 bar | Max. pressure 300 bar |
| differential Thermal max. 16°C | Max. therm. differential 16°C |
| Ambient temperature -20°C...+120°C | Environment temperature -20°C to +120°C |
| Coppia di serraggio 30 Nm | Tightening torque 30 Nm |
| Capacidad de contactos 250 Vac / 10 A 24 Vdc / 5 A | Switch rating 250 Vac / 10 A 24 Vdc / 5 A |
| Pressure máx. 300 bar | Max. pressure 300 bar |
| Diferencial térmico máx. 16°C | Max. therm. differential 16°C |
| Par de apriete 30 Nm | Tightening torque 30 Nm |
