Explore performance details, construction highlights, applications, and technical information in one clear overview.

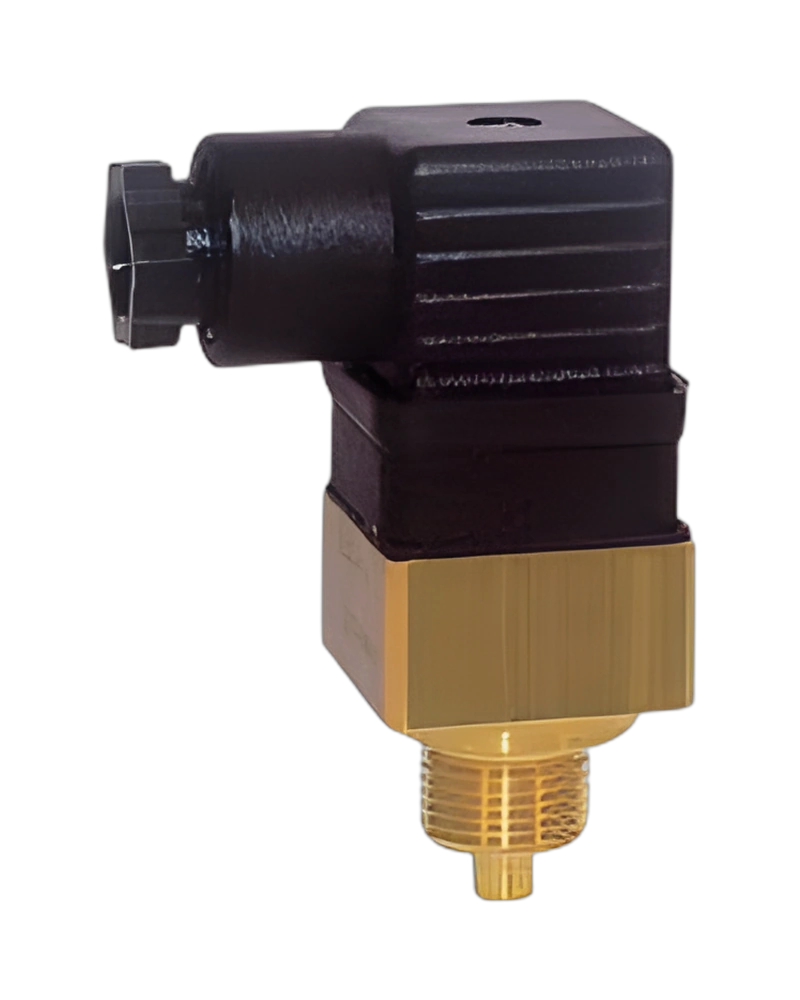

The EBT40BA - EBT - Non-adjustable thermostat with connector+635:635628:637E64628:634 - EBT Non-adjustable thermostat from ELETTROTEC is a precision temperature control device designed for industrial applications. With an accuracy of ±5°C, a maximum pressure rating of 300 bar, and compatibility with multiple thread connections including G3/8″, G1/2″, M22 x 1.5 mm, and 1/4 NPT, this thermostat ensures reliable temperature regulation across a wide operating range. Ideal for environments requiring precise thermal management from -20°C to +120°C ambient temperatures.
The EBT40BA - EBT - Non-adjustable thermostat with connector+635:635628:637E64628:634 - EBT Non-adjustable thermostat is a robust industrial temperature control solution engineered for demanding environments. This brass-bodied thermostat features a precise ±5°C accuracy, operates within a broad temperature range from -20°C to +120°C ambient conditions, and maintains stability under high pressure conditions up to 300 bar. Its versatile thread connections (G3/8″, G1/2″, M22 x 1.5 mm, 1/4 NPT) and ability to handle a maximum thermodynamic differential of 16°C make it suitable for critical applications where consistent temperature control is essential.
The EBT40BA - EBT - Non-adjustable thermostat with connector+635:635628:637E64628:634 - EBT Non-adjustable thermostat features a brass body with dimensions of 30 AF (body) x 80 mm (height). It operates within a working temperature range of 25°C to 105°C, with a maximum pressure rating of 300 bar. The device supports a maximum thermodynamic differential of 16°C and is designed for environments ranging from -20°C to +120°C. Contact types include NO (normally open) and NC (normally closed) options.
The EBT40BA - EBT - Non-adjustable thermostat with connector+635:635628:637E64628:634 - EBT thermostat accommodates multiple connection types including G3/8″, G1/2″, M22 x 1.5 mm, and 1/4 NPT threads. This versatility ensures compatibility with a wide range of industrial systems and piping configurations, facilitating seamless integration into diverse applications.
Engineered for extreme environments, the EBT40BA - EBT - Non-adjustable thermostat with connector+635:635628:637E64628:634 - EBT thermostat functions reliably across ambient temperatures from -20°C to +120°C. Its robust construction and precise ±5°C accuracy ensure consistent performance in both high and low-temperature settings, making it ideal for industrial processes requiring thermal stability.
The thermostat supports switch ratings of 250 V AC / 10 A and 24 V DC / 5 A, enabling integration with a variety of control systems and electrical circuits without compromising safety or functionality.
The EBT40BA - EBT - Non-adjustable thermostat with connector+635:635628:637E64628:634 - EBT - Non-adjustable thermostat with connector+635:635628:637E64628:634 is an industrial Temperature. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Accuracy | ± 5°C |
| Max. pressure | 300 bar |
| Dimensions | Body 30 AF – Height 80 mm |
| Switch rating | 250 Vac / 10 A 24 Vdc / 5 A |
| Working temperature | 25°C – 30°C – 40°C – 50°C – 60°C – 70°C – 80°C – 90°C – 100°C – 105°C |
| Max. differential DT | 16°C |
| Environment temperature | -20°C to +120°C |
| Thread connection | G3/8″ – G1/2″ – M22 x 1.5 mm – 1/4 NPT – G1/4 |
| Height | 80 mm |
| Pressure max. 300 bar | Max. pressure 300 bar |
| differential Thermal max. 16°C | Max. therm. differential 16°C |
| Ambient temperature -20°C...+120°C | Environment temperature -20°C to +120°C |
| Thread | connection |
