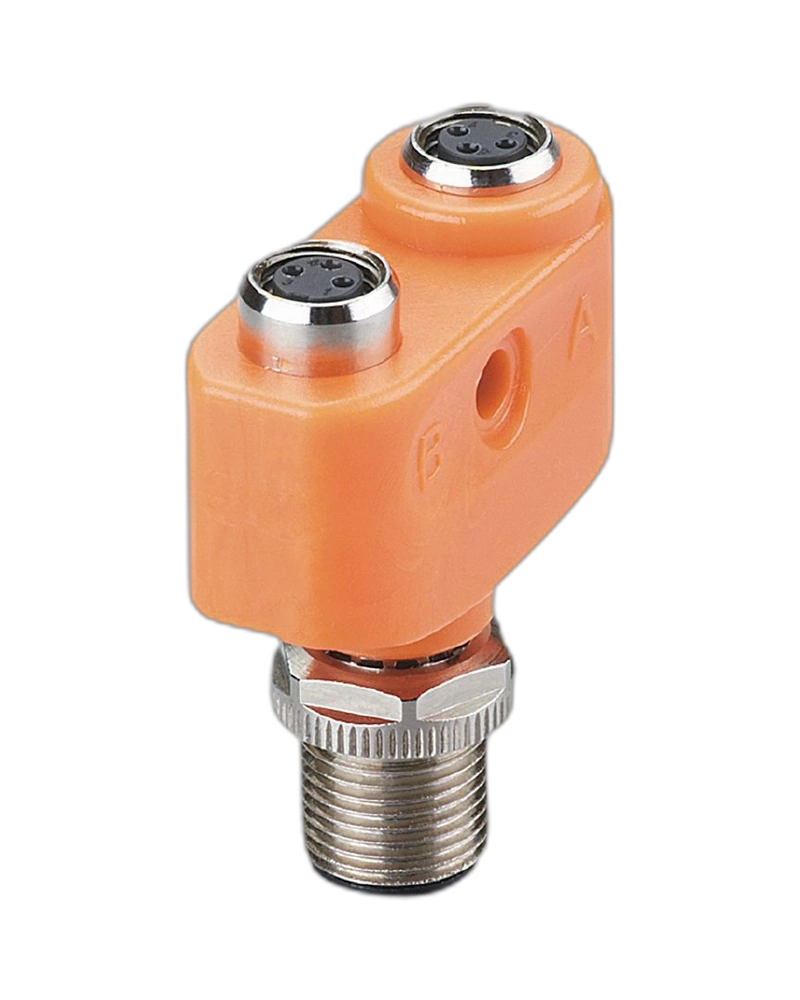

EBT012 is a compact Y/T splitter designed for distributing electrical connections in industrial automation systems. It uses gold-plated contacts and a silicone-free construction for reliable operation in demanding environments. Stainless-steel locking components and EPDM sealing provide robust mechanical and environmental protection. Its high IP rating makes it suitable for hygienic, wet and washdown applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EBT012 provides a compact connection-distribution solution for compatible automation components. Its M12 connection architecture allows multiple devices to be integrated into a common wiring arrangement. The compact form factor is useful in space-constrained installations. It helps reduce wiring complexity around sensors and actuators.
The splitter uses gold-plated contacts to support reliable electrical transmission. Gold plating helps maintain dependable contact performance over repeated connection cycles. The M12 connection system provides secure mechanical coupling. This makes it suitable for industrial sensor and actuator applications.
EBT012 uses a silicone-free design with an orange PA housing. Stainless-steel 316L components provide durable mechanical locking. EPDM sealing helps protect the internal connection against moisture. These materials are appropriate for demanding wet and hygienic environments.
The splitter provides IP65, IP67, IP68 and IP69K protection. It is suitable for environments where moisture, cleaning and contaminants are present. The operating temperature range supports industrial installations. The compact construction makes it practical for machine automation.
Y/T splitter configuration
M12 connection
Gold-plated contacts
Silicone-free construction
Halogen-free design
Orange PA housing
Stainless-steel 316L locking
EPDM sealing
IP65 / IP67 / IP68 / IP69K
Compact installation
Industrial automation
Food and beverage equipment
Wet-area machinery
Hygienic automation
Sensor connections
Actuator connections
Machine control systems
Compact wiring applications
| Specification | Details |
|---|---|
| Product Type | Y/T Splitter |
| Model | ZDO2F030VAS0000-00STGH040VAS |
| Connection | M12 |
| Coding | A |
| Contacts | 3 |
| Contact Finish | Gold-plated |
| Special Feature | Free from silicone |
| Housing | PA, orange |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing Material | EPDM |
| Operating Voltage | <50 V AC / <60 V DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Protection Class | III |
| Total Current Load | 3 A |
| Ambient Temperature | -25°C to +80°C |
| cULus Ambient | Up to +65°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| UL Approval | Class 2 |
| UL File | E191684 |
| Weight | 28.9 g |
| Pack Quantity | 1 pc |
