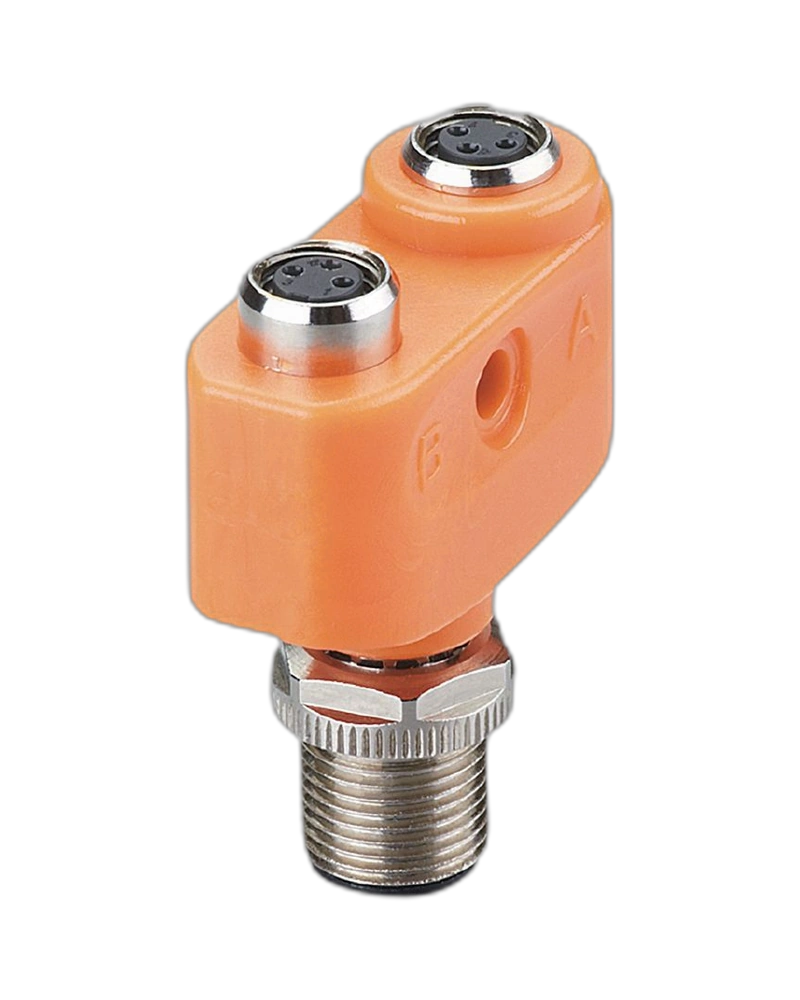

EBT010 is a compact M12 Y-splitter designed to simplify industrial sensor and actuator connections. It provides one M12 plug and two M12 sockets in a space-saving configuration. Gold-plated contacts, EPDM sealing and stainless-steel locking components provide reliable connection performance. Its IP65/IP67/IP68/IP69K protection makes it suitable for demanding and hygienic industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EBT010 provides a single M12 connection point with two M12 branches. This allows multiple devices to be connected without requiring separate wiring routes. The compact Y configuration is useful where installation space is limited. M12 connectivity supports standard industrial automation devices.
The splitter uses gold-plated contacts for dependable electrical transmission. Stainless-steel locking components provide secure mechanical coupling. The connectors follow the M12 connection standard. This supports reliable integration with compatible industrial sensors and actuators.
The splitter is silicone-free and uses EPDM sealing. Its orange PA housing provides robust mechanical protection. The construction is suitable for food and beverage applications. The materials support demanding wet-area installations.
EBT010 provides IP65/IP67/IP68/IP69K protection. It is suitable for high-pressure cleaning with aggressive cleaning agents. The mechanical end stop helps protect the O-ring from damage. These characteristics support reliable operation in washdown environments.
Compact Y-splitter
1 × M12 plug
2 × M12 sockets
4-pole connection
Gold-plated contacts
Silicone-free
EPDM sealing
Stainless-steel locking
High-pressure cleaning resistant
IP65 / IP67 / IP68 / IP69K
Food-industry suitable
Food processing
Beverage machinery
Hygienic automation
Industrial sensors
Actuator connections
Washdown machinery
Compact control systems
Factory automation
| Specification | Details |
|---|---|
| Product Type | Y-Splitter |
| Model | ZDO2H040VAS0000-00STGH050VAS |
| Configuration | 1 × M12 Plug / 2 × M12 Sockets |
| Connector Coding | A |
| Contacts | 4 |
| Contact Finish | Gold-plated |
| Operating Voltage | <60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Protection Class | II |
| Max. Current per Port | 4 A |
| Total Current Load | 4 A |
| Housing | PA, orange |
| Nut Material | Stainless steel 316L |
| Sealing | EPDM |
| Ambient Temperature | -25°C to +100°C |
| cULus Ambient | Up to +65°C |
| Storage Temperature | -25°C to +55°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Weight | Approx. 35.7 g |
| Standard | IEC 61076-2-101 |
| Pack Quantity | 1 pc |
