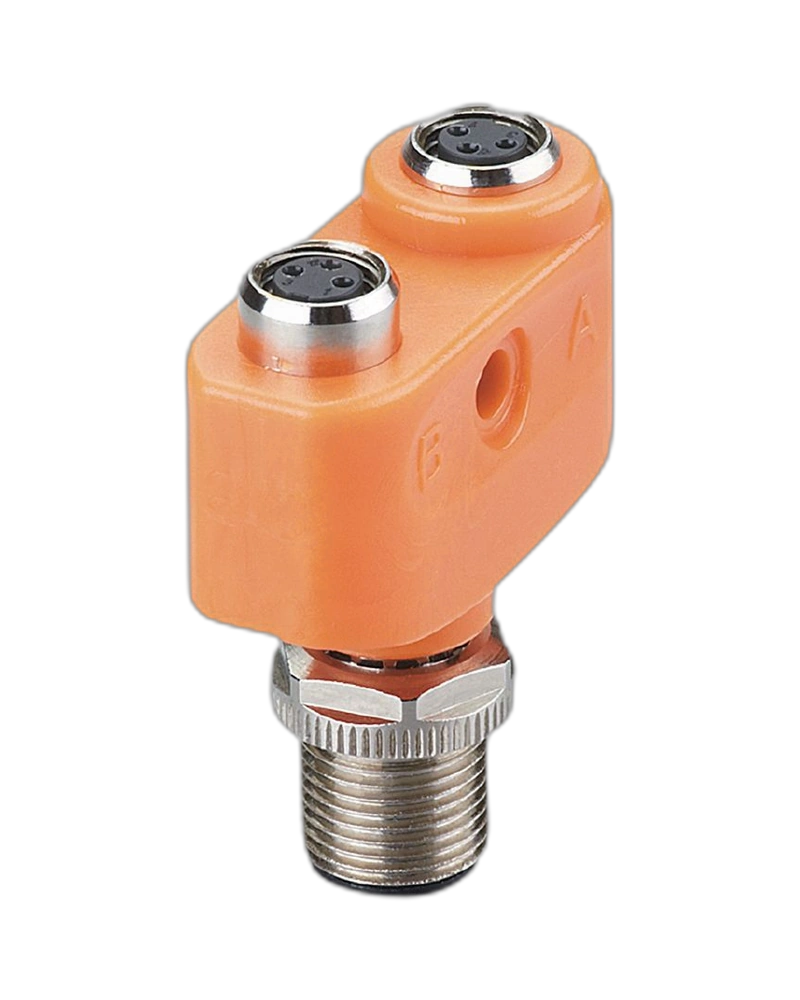

EBT008 is a compact Y-splitter designed for industrial applications requiring multiple sensor or actuator connections in limited space. It combines one M12 plug with two M12 sockets. The splitter features gold-plated contacts, silicone-free construction and EPDM sealing. High IP protection supports food, beverage and wet-area applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EBT008 provides one M12 input connection and two M12 output connections. This configuration simplifies wiring where several devices must be connected within a restricted area. The compact design reduces wiring complexity. M12 standardization supports broad industrial compatibility.
The splitter is designed for applications requiring high protection and hygienic construction. Silicone-free materials help support food-industry requirements. EPDM sealing provides dependable environmental protection. The orange PA housing provides a robust industrial enclosure.
Gold-plated contacts support reliable electrical transmission and long service life. Stainless-steel locking components provide secure mechanical coupling. The connection system is designed according to the M12 standard. The locking system helps maintain stable connections during operation.
EBT008 is designed for high-pressure cleaning with aggressive cleaning agents. IP65/IP67/IP68/IP69K protection supports wet and washdown environments. The mechanical end stop helps protect the O-ring.
Y-splitter design
1 × M12 plug
2 × M12 sockets
Gold-plated contacts
Silicone-free
Halogen-free
EPDM sealing
Stainless-steel locking
High-pressure cleaning resistant
IP65 / IP67 / IP68 / IP69K
Compact installation
Food processing equipment
Beverage machinery
Washdown environments
Industrial sensors
Actuator systems
Factory automation
Compact machine wiring
Hygienic automation
| Specification | Details |
|---|---|
| Product Type | Y-Splitter |
| Model | ZDO2H040VAS0000-00STGH050VAS |
| Configuration | 1 × M12 Plug / 2 × M12 Sockets |
| Connector Coding | A |
| Contacts | 4 |
| Contact Finish | Gold-plated |
| Operating Voltage | <60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Protection Class | II |
| Max. Current per Port | 4 A |
| Total Current Load | 4 A |
| Housing | PA, orange |
| Nut Material | Stainless steel 316L |
| Sealing | EPDM |
| Ambient Temperature | -25°C to +100°C |
| cULus Ambient | Up to +65°C |
| Storage Temperature | -25°C to +55°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Application | Food / Beverage / Wet Areas |
| Pack Quantity | 1 pc |
