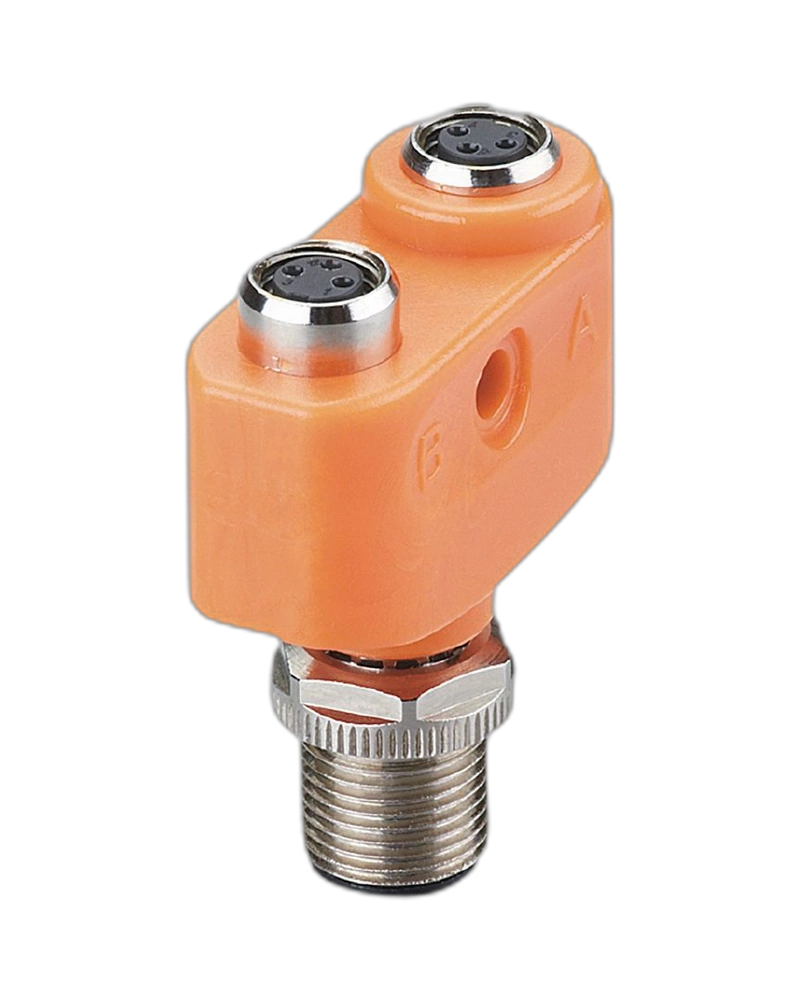

EBT007 is a hygienic industrial Y-splitter designed to distribute one M12 connection to two M12 sockets. It uses gold-plated contacts and stainless-steel locking components for reliable connectivity. The PA housing and EPDM seals provide strong environmental protection. Its high IP rating makes it suitable for food, beverage and wet industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EBT007 combines one M12 plug with two M12 sockets to simplify sensor and actuator wiring. The Y-configuration allows multiple devices to share a connection point. Five gold-plated contacts provide reliable electrical connectivity. The design helps reduce wiring complexity.
The splitter uses an orange PA housing and EPDM sealing material. Stainless-steel 316L locking components provide strong corrosion resistance. Silicone-free construction supports hygienic applications. The design is suitable for food and beverage environments.
EBT007 provides IP65, IP67, IP68 and IP69K protection. This supports applications exposed to moisture and intensive cleaning. The construction is suitable for high-pressure cleaning environments. Reliable sealing helps protect internal electrical connections.
The splitter supports compact installation where multiple inputs and outputs are required. M12 standard connectivity supports compatibility with industrial sensors and actuators. Gold-plated contacts provide dependable electrical performance. The robust construction supports demanding automation environments.
Y-splitter configuration
1 × M12 plug
2 × M12 sockets
5-pole connections
Gold-plated contacts
Silicone-free
EPDM sealing
Stainless-steel 316L locking
Food-industry suitable
High IP protection
Compact connection solution
Food and beverage machinery
Hygienic automation
Wet-area applications
Industrial sensors
Actuator systems
Machine automation
Process equipment
Compact wiring installations
| Specification | Details |
|---|---|
| Product Type | Y-Splitter |
| Model | ZDO2H050VAS0000-00STGH050VAS |
| Configuration | 1 × M12 Plug / 2 × M12 Sockets |
| Connector Coding | A |
| Contacts | 5 |
| Contact Finish | Gold-plated |
| Standard | IEC 61076-2-101 |
| Operating Voltage | <60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Protection Class | II |
| Max. Current per Port | 4 A |
| Total Current Load | 4 A |
| Housing | PA, orange |
| Nut Material | Stainless steel 316L |
| Sealing | EPDM |
| Ambient Temperature | -25°C to +100°C |
| cULus Ambient | Up to +65°C |
| Storage Temperature | -25°C to +55°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Weight | 35.6 g |
| Pack Quantity | 1 pc |
