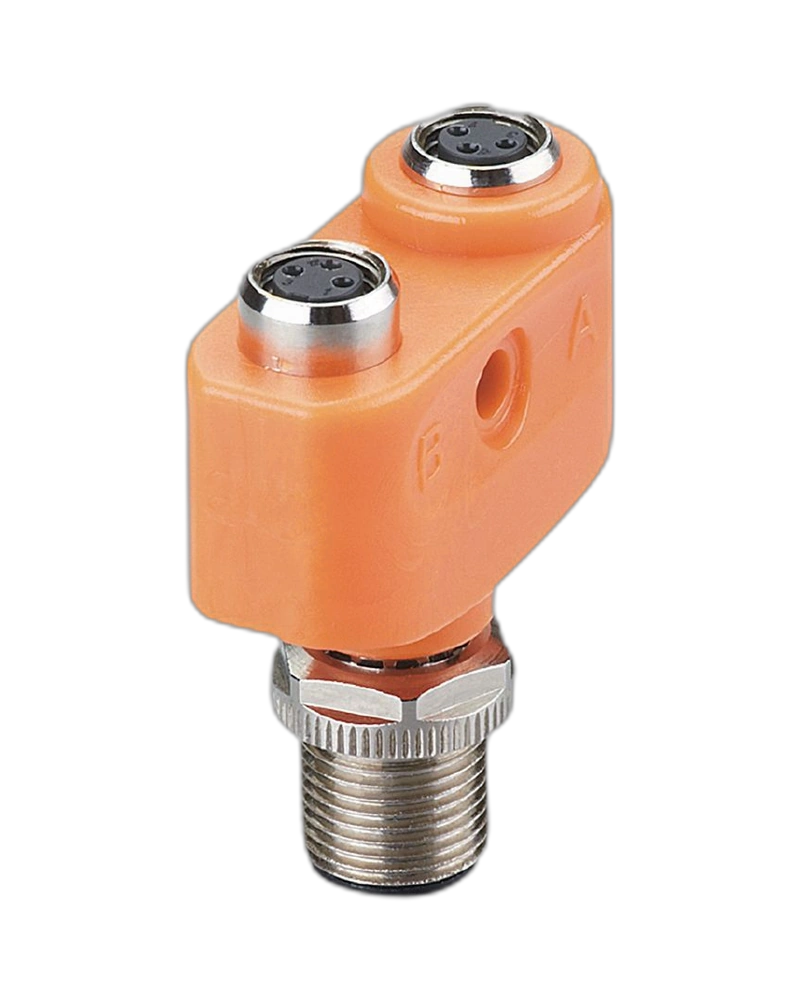

The IFM EBT006 is an M12 Y-splitter designed for reliable sensor and actuator connections in hygienic and wet industrial environments. It provides one M12 connector and two M12 sockets for efficient signal branching. Gold-plated contacts, stainless-steel components and EPDM sealing support dependable operation. The high protection rating makes it suitable for demanding food and beverage applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBT006 provides one M12 male connection and two M12 female connections. This configuration allows two field devices to be connected through a common interface. The compact design helps simplify machine wiring and reduces the need for separate connection points. It is suitable for installations where multiple sensors are located close together.
The splitter uses gold-plated contacts to provide stable electrical conductivity. It supports industrial AC/DC connection requirements with a nominal current rating of 4 A. Stainless-steel locking components help secure the connected devices during operation. The standardized M12 interface allows easy integration with compatible automation components.
The EBT006 uses a PA housing, stainless-steel locking nut and EPDM sealing ring. These materials are designed for hygienic and wet-area applications. The construction supports use in environments where frequent cleaning may be required. It is particularly suitable for food and beverage production machinery.
The splitter provides IP67, IP68 and IP69K protection when correctly connected. It supports an ambient temperature range from -25 to 100 °C. Its high protection level allows operation in wet and demanding industrial conditions. This makes it suitable for washdown areas and hygienic machine installations.
M12 Y-splitter
1 x M12 connector
2 x M12 sockets
Gold-plated contacts
PA housing
Stainless-steel 316L locking nut
EPDM sealing
IP67, IP68 and IP69K protection
4 A current rating
Suitable for hygienic applications
Food and beverage machinery
Hygienic production systems
Wet-area automation
Sensor and actuator connections
Packaging machinery
Industrial processing equipment
Machine automation systems
| Specification | Details |
|---|---|
| Product Model | EBT006 |
| Order Code | ZDO2H030VAS0000-00STGH040VAS |
| Product Type | Y-Splitter |
| Connection | 1 x M12 male, 2 x M12 female |
| Connector Type | M12 |
| Operating Voltage | 250 V AC / 300 V DC for 4-pole configuration |
| Current Rating | 4 A |
| Protection Rating | IP67, IP68, IP69K |
| Housing Material | PA |
| Locking Nut | Stainless steel 316L / 1.4404 |
| Contact Material | Gold-plated |
| Sealing Material | EPDM |
| Ambient Temperature | -25 to 100 °C |
| Tightening Torque | 0.6–1.5 Nm |
| Suitable Environment | Hygienic and wet areas |
| Pack Quantity | 1 piece |
