The IFM EBT005 is an 8-port M12 splitter box designed to simplify sensor and actuator wiring in industrial automation systems. It provides a centralized connection point with PNP electrical design and 10–30 V DC operating voltage. The PBT-GF30 housing provides robust mechanical protection for industrial installations. Integrated status LEDs provide convenient visual monitoring of connected devices and operating conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

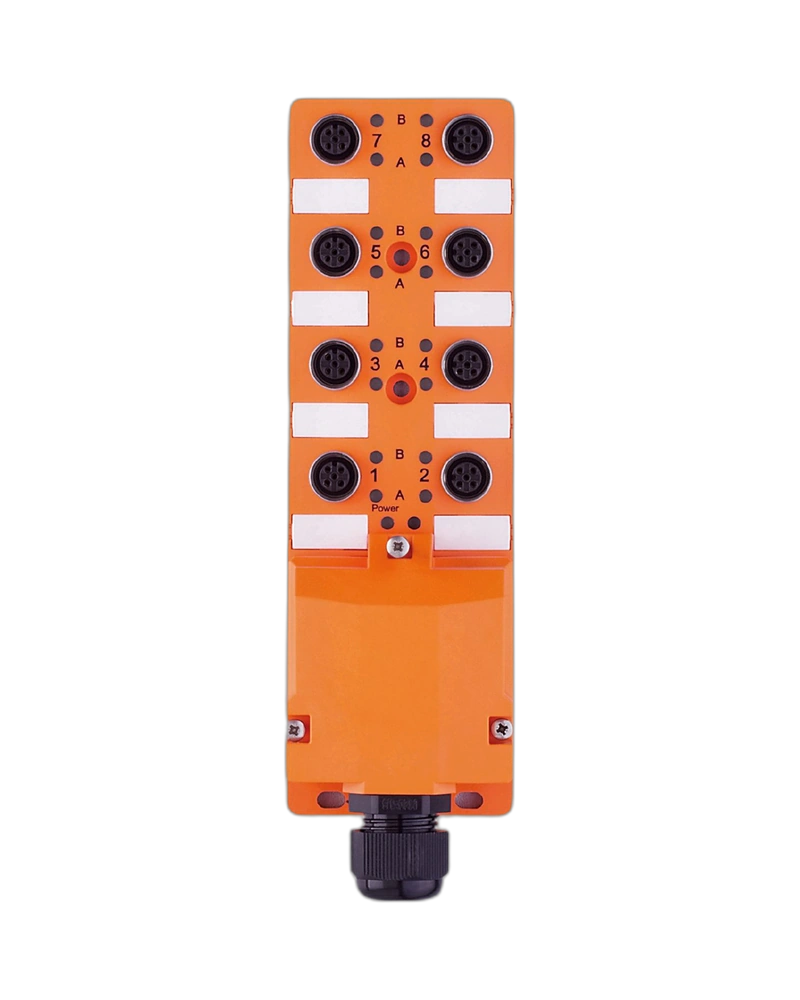

The EBT005 provides eight M12 ports for connecting multiple sensors and actuators. Centralized connections help reduce wiring complexity and provide a structured machine-level connection arrangement. The M12 interface supports common industrial sensor connectivity. This makes the splitter suitable for production equipment with several field devices.
The splitter box operates from 10 to 30 V DC and uses a PNP electrical design. Each connection point supports the specified current load for connected field devices. Gold-plated contacts help provide stable electrical connections. The centralized design supports reliable signal distribution between field sensors and the control system.
The EBT005 uses PBT-GF30 housing material designed for reliable industrial operation. Brass nickel-plated components provide durable connection hardware. The construction helps protect the connection system against normal mechanical and environmental stresses. This makes the product suitable for demanding machine installations.
The EBT005 provides yellow LEDs for individual switching-status indication and a green LED for operation indication. These visual indicators help technicians identify the operating condition of connected channels. Clear status indication can simplify troubleshooting during machine commissioning and maintenance. This contributes to easier servicing of automated equipment.
8 M12 ports
PNP electrical design
10–30 V DC operating voltage
PBT-GF30 housing
Gold-plated contacts
Nickel-plated brass components
10 yellow switching-status LEDs
1 green operation LED
IP67 protection
Centralized sensor wiring
Industrial automation systems
Machine control applications
Sensor and actuator networks
Packaging machinery
Assembly equipment
Conveyor systems
Production lines
| Specification | Details |
|---|---|
| Product Model | EBT005 |
| Order Code | ZDO8H050VAS000---KA |
| Product Type | Splitter Box |
| Number of Ports | 8 |
| Connector Type | M12 |
| Electrical Design | PNP |
| Operating Voltage | 10–30 V DC |
| Max. Current per Port | 2 A |
| Max. Total Current | 12 A |
| Current Consumption | <60 mA |
| Housing Material | PBT-GF30 |
| Connection Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 80 °C |
| Moving Ambient Temperature | -5 to 60 °C |
| Dimensions | Approx. 49.4 × 60 × 187 mm |
| Weight | Approx. 404.5 g |
| Switching Indication | 10 x yellow LED |
| Operation Indication | 1 x green LED |
| Connection | 1 x M12 central connection |
| Pack Quantity | 1 piece |
