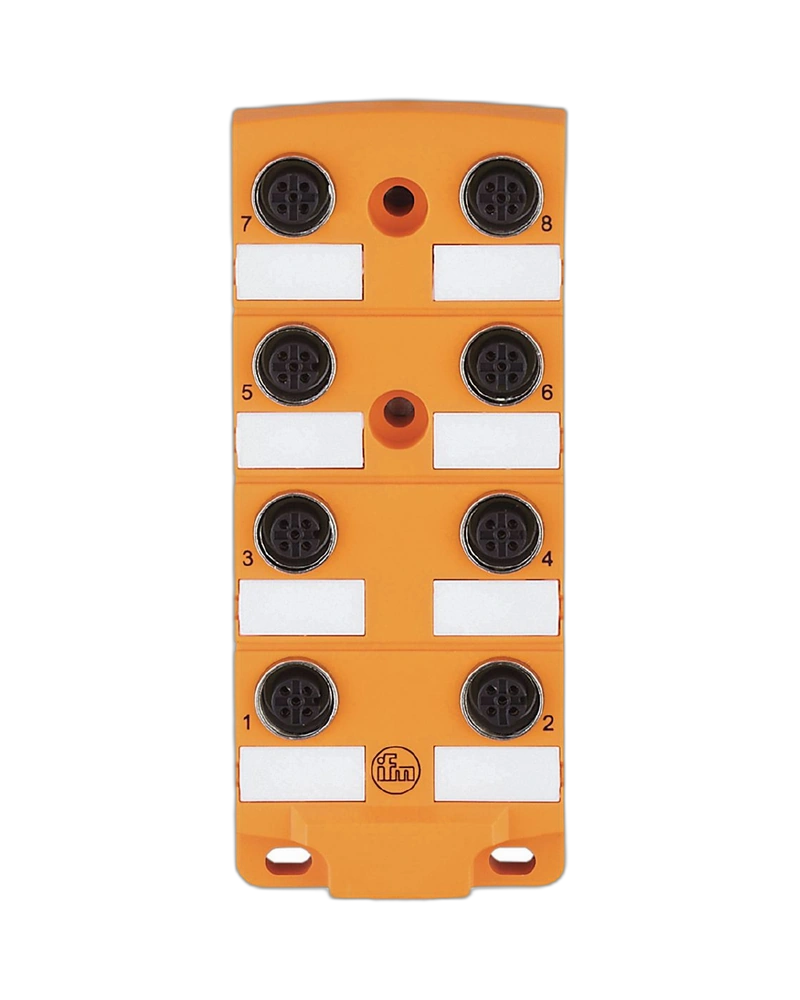

The IFM EBT004 is an 8-port splitter box designed for centralized sensor and actuator connectivity in industrial automation systems. It features eight M12 ports and a 15 m PVC cable for convenient connection to control equipment. The PA housing and stainless-steel components provide durability, while gold-plated contacts support dependable electrical performance. Its high protection rating makes it suitable for demanding production environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBT004 provides eight M12 connection ports for connecting multiple sensors and actuators to a centralized wiring point. This arrangement helps reduce individual cable routing and creates a more organized machine wiring structure. The splitter box can be installed close to field devices for convenient connection management. It is suitable for automated machinery with multiple sensor inputs.
The product is supplied with a 15 m PVC cable that provides extended connection distance between the splitter box and the control system. This makes it suitable for larger machines and production equipment where the control cabinet is positioned away from field devices. The cable construction supports fixed industrial installations. Proper cable routing helps maintain reliable long-term performance.
The EBT004 uses a robust PA housing with stainless-steel connection components. Gold-plated contacts provide reliable electrical conductivity and help maintain connection quality. The construction is free from silicone and designed for industrial environments. These features support long service life in demanding automation applications.
The splitter box provides IP67 and IP68 protection for reliable operation in environments exposed to dust and moisture. It operates from 10 to 30 V DC and supports PNP sensor connections. The robust housing helps protect internal connections from industrial environmental conditions. This makes it suitable for production and machine automation applications.
8 M12 connection ports
15 m PVC cable
PNP electrical design
10–30 V DC operating voltage
Gold-plated contacts
Stainless-steel connection components
PA housing
Silicone-free construction
IP67 and IP68 protection
Centralized sensor connection
Industrial automation systems
Production machinery
Packaging equipment
Assembly lines
Conveyor systems
Machine sensor networks
Factory control systems
| Specification | Details |
|---|---|
| Product Model | EBT004 |
| Order Code | ZDO8H050VAS0015E19 |
| Product Type | Splitter Box |
| Number of Ports | 8 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Electrical Design | PNP |
| Operating Voltage | 10–30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Cable Length | 15 m |
| Cable Type | PVC |
| Cable Diameter | Approx. 9.7 mm |
| Housing Material | PA |
| Locking Material | Stainless steel 1.4404 / 316L |
| Contact Material | Gold-plated |
| Protection Rating | IP67, IP68 |
| Ambient Temperature | -25 to 70 °C |
| Moving Ambient Temperature | -5 to 60 °C |
| Dimensions | Approx. 127 × 54 × 22 mm |
| Weight | Approx. 2.875 kg |
| Pack Quantity | 1 piece |
