The IFM EBF011 is a hygienic M12 Y-splitter designed to combine two sensor or actuator connections through a single M12 connection. It features gold-plated contacts, a halogen-free PA housing and stainless-steel locking components for reliable industrial performance. The splitter supports AC/DC applications and provides high protection against water, dust and cleaning conditions. Its robust construction makes it suitable for food, beverage and other demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

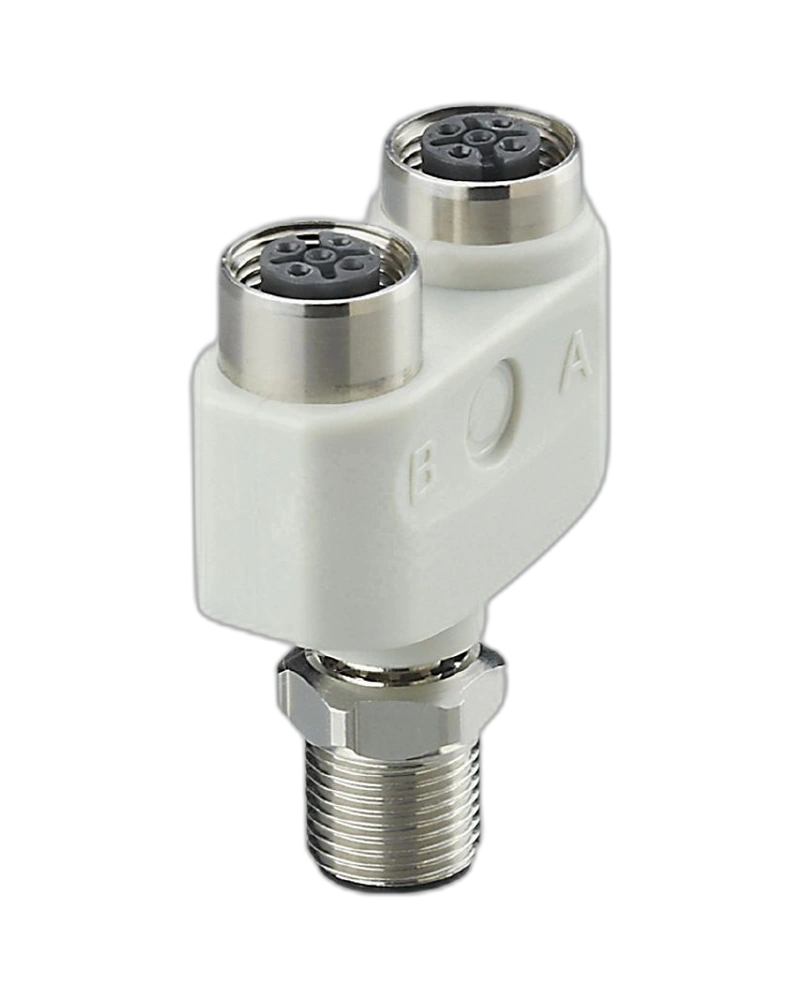

The EBF011 provides one M12 plug connection and two M12 socket connections for convenient signal branching. Its Y-shaped configuration helps reduce wiring complexity when multiple devices need to share a connection point. The compact construction makes it suitable for machine-level installations with restricted space. Standard M12 connections support reliable integration with industrial sensors and actuators.
The splitter is designed with a logic AND function for suitable signal combination applications. This configuration allows connected devices to work together through the defined wiring arrangement. It can be integrated into automation systems where coordinated sensor signals are required. The arrangement helps provide a structured connection solution for machine control applications.
The EBF011 uses a halogen-free PA housing with EPDM sealing and stainless-steel components. Gold-plated contacts support reliable electrical conductivity and long-term connection performance. The product is free from silicone and designed for demanding hygienic applications. Its construction is suitable for environments where regular cleaning and moisture exposure are expected.
The splitter provides IP65, IP67, IP68 and IP69K protection when correctly connected. It is designed for resistance to high-pressure cleaning and aggressive cleaning agents. The operating temperature range extends from -25 to 100 °C under specified conditions. These characteristics make it suitable for food and beverage machinery and other demanding industrial installations.
M12 plug with two M12 socket connections
Logic AND function
Gold-plated electrical contacts
Halogen-free PA housing
Silicone-free construction
Stainless-steel 316L locking components
EPDM sealing
IP65, IP67, IP68 and IP69K protection
High-pressure cleaning resistance
Suitable for hygienic applications
Food and beverage processing machinery
Hygienic production equipment
Industrial automation systems
Sensor and actuator signal branching
Packaging machinery
Machine control systems
Wet-area automation installations
| Specification | Details |
|---|---|
| Product Model | EBF011 |
| Order Code | ZDO2H040VAS0000-00STGH040VAS |
| Product Type | Y-Splitter |
| Connection | 1 x M12 plug, 2 x M12 sockets |
| Connector Coding | A-coded |
| Function | Logic AND |
| Operating Voltage | <60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Current Load per Port | 4 A |
| Total Current Load | 4 A |
| Protection Class | II |
| Contact Material | Gold-plated |
| Housing Material | PA, halogen-free |
| Locking Nut | Stainless steel 316L / 1.4404 |
| Sealing Material | EPDM |
| Silicone Free | Yes |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 100 °C |
| Storage Temperature | -25 to 55 °C |
| Plug Tightening Torque | 0.6–1.2 Nm |
| Socket Tightening Torque | 0.6–1.5 Nm |
| Weight | Approx. 33.8 g |
| Pack Quantity | 1 piece |
