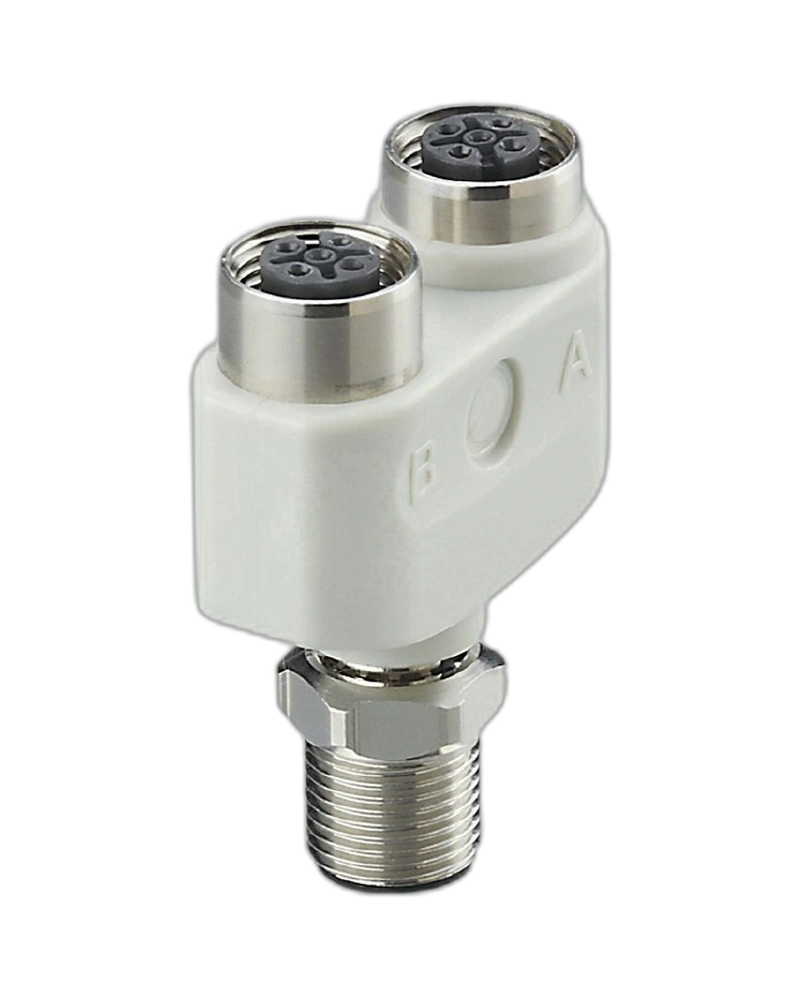

The IFM EBF010 is an M12 Y-splitter designed to provide a reliable connection between one M12 plug and two M12 sockets. It is suitable for industrial automation applications where multiple field devices need to share a connection point. The splitter features gold-plated contacts, a halogen-free PA housing and EPDM sealing. Its IP65, IP67, IP68 and IP69K protection supports demanding industrial and hygienic environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBF010 provides a compact Y-shaped connection arrangement for connecting multiple field devices. One M12 plug is connected to two M12 sockets, helping simplify machine wiring. This design is useful in applications where installation space is limited.
The splitter operates with AC/DC voltages below 60 V and supports a current load of up to 4 A. Gold-plated contacts help provide stable electrical conductivity and reliable signal transmission. The standardized M12 connections make it suitable for industrial sensors and actuators.
The EBF010 uses a halogen-free PA housing with EPDM sealing for reliable operation. Stainless-steel connection components provide additional mechanical durability. The silicone-free design supports applications where clean and controlled materials are important.
The splitter provides IP65, IP67, IP68 and IP69K protection against dust, moisture and demanding cleaning conditions. It can operate between -25 and 100 °C under specified conditions. This makes it suitable for industrial machinery and hygienic production environments.
M12 Y-splitter
1 x M12 plug
2 x M12 sockets
Gold-plated contacts
Halogen-free PA housing
Silicone-free construction
EPDM sealing
Stainless-steel connection components
IP65, IP67, IP68 and IP69K protection
Operating voltage below 60 V AC/DC
Compact industrial design
Industrial automation systems
Food and beverage equipment
Packaging machinery
Sensor and actuator connectivity
Machine control systems
Hygienic production environments
Wet-area industrial applications
| Specification | Details |
|---|---|
| Product Model | EBF010 |
| Order Code | ZDO2H040VAS0000-00STGH050VAS |
| Product Type | Y-Splitter |
| Connection | 1 x M12 plug + 2 x M12 sockets |
| Operating Voltage | <60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Current Load per Port | 4 A |
| Total Current Load | 4 A |
| Protection Class | II |
| Contact Material | Gold-plated |
| Housing Material | PA, halogen-free |
| Nut Material | Stainless steel 316L / 1.4404 |
| Sealing Material | EPDM |
| Silicone Free | Yes |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 100 °C |
| Storage Temperature | -25 to 55 °C |
| Tightening Torque | 0.6–1.5 Nm |
| Weight | Approx. 56.3 g |
| Connection Standard | IEC 61076-2-101 |
| Pack Quantity | 1 piece |
