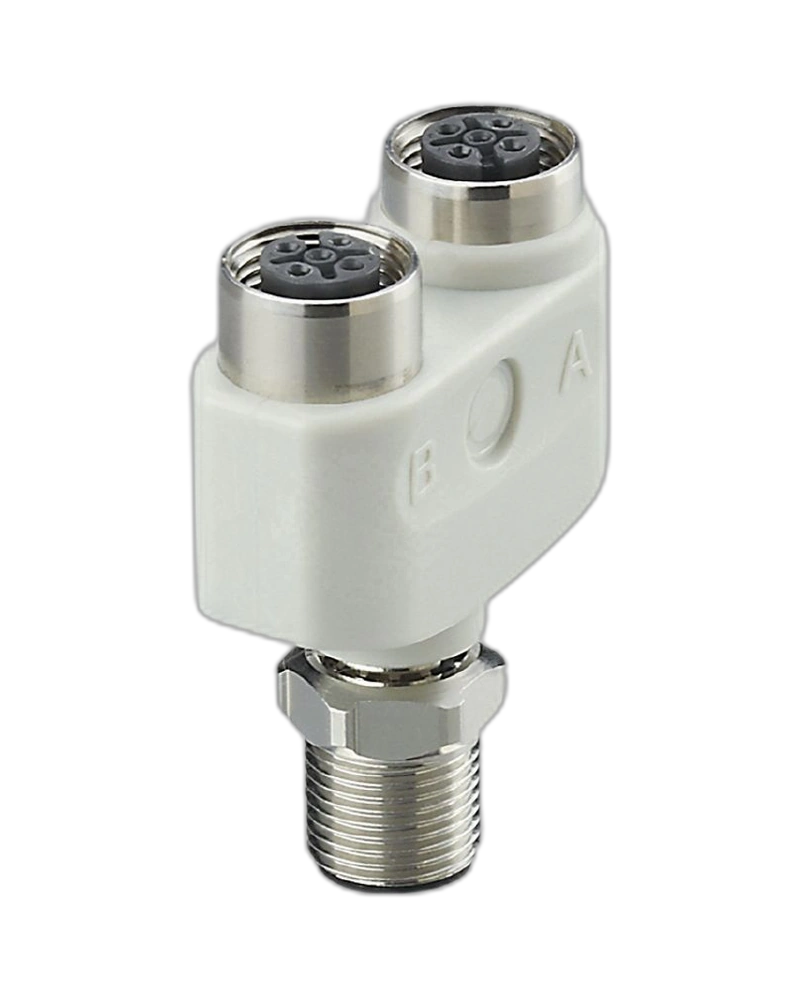

The IFM EBF009 is an M12 Y-splitter designed for applications requiring reliable branching of sensor and actuator connections. It features one M12 plug and two M12 sockets with a logic OR function. Gold-plated contacts, silicone-free construction and EPDM sealing provide dependable industrial performance. The high protection rating makes it suitable for hygienic and wet-area applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBF009 combines two M12 socket connections with a common M12 plug and supports a logic OR function. This makes it suitable for applications where signals from two connected devices need to be combined according to the wiring configuration. The compact design helps simplify machine-level connections.
Gold-plated contacts provide reliable electrical conductivity and help maintain stable connections. The product operates below 60 V AC/DC and supports current loads up to 4 A. The M12 interface provides a standardized solution for industrial sensor connectivity.
The EBF009 is free from silicone and designed for applications requiring robust and hygienic connection components. Its PA housing and stainless-steel locking components provide mechanical durability. EPDM sealing helps protect the connection from environmental contamination.
The splitter provides IP65, IP67, IP68 and IP69K protection and is suitable for ambient temperatures from -25 to 100 °C. Its construction supports applications involving high-pressure cleaning and aggressive cleaning agents. This makes it well suited to food and beverage machinery.
M12 Y-splitter
1 x M12 plug
2 x M12 sockets
Logic OR function
Gold-plated contacts
Silicone-free construction
Halogen-free PA housing
EPDM sealing
Stainless-steel locking components
IP65, IP67, IP68 and IP69K protection
Suitable for hygienic environments
Food and beverage machinery
Hygienic production equipment
Industrial sensor connections
Packaging machinery
Machine automation
Wet-area installations
Sensor signal branching
| Specification | Details |
|---|---|
| Product Model | EBF009 |
| Order Code | ZDO2H050VAS0000-00STGH050VAS |
| Product Type | Y-Splitter |
| Connection | 1 x M12 plug + 2 x M12 sockets |
| Logic Function | OR |
| Operating Voltage | <60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Current Load per Port | 4 A |
| Total Current Load | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Contact Material | Gold-plated |
| Housing Material | PA, halogen-free |
| Nut Material | Stainless steel 316L / 1.4404 |
| Sealing Material | EPDM |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 100 °C |
| Storage Temperature | -25 to 55 °C |
| Tightening Torque | 0.6–1.5 Nm |
| Weight | Approx. 33.9 g |
| Pack Quantity | 1 piece |
