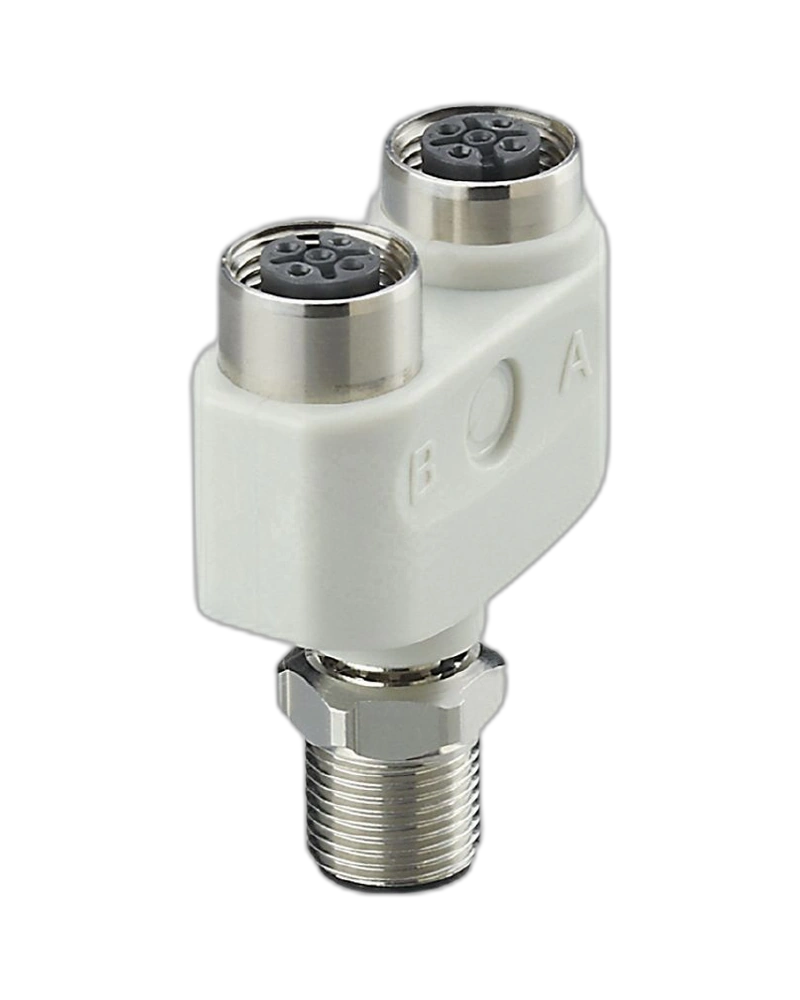

The IFM EBF008 is a compact M12 Y-splitter designed for reliable electrical connections in industrial automation and hygienic applications. It provides one M12 plug and two M12 sockets with gold-plated contacts. The silicone-free PA housing and EPDM sealing support reliable operation in wet and demanding environments. Its high protection rating makes it suitable for food, beverage and industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBF008 provides a practical method for branching one M12 connection into two separate connections. Its compact construction is useful for applications where multiple inputs or outputs are required within limited space. The arrangement helps simplify machine wiring and connection management.
Gold-plated contacts support stable electrical connectivity and long-term contact reliability. The splitter is designed for AC/DC operation up to 60 V. Its M12 configuration provides compatibility with common industrial sensor and actuator connections.
The housing is made from halogen-free PA material and the sealing uses EPDM. The silicone-free construction makes the splitter suitable for applications with strict material requirements. Stainless-steel connection components provide additional durability.
The EBF008 offers IP65, IP67, IP68 and IP69K protection for operation in wet and demanding environments. It is designed for ambient temperatures between -25 and 100 °C. The construction supports applications where regular cleaning and environmental exposure are expected.
M12 Y-splitter
1 x M12 plug
2 x M12 sockets
Gold-plated contacts
Silicone-free design
Halogen-free PA housing
EPDM sealing
Stainless-steel connection components
IP65, IP67, IP68 and IP69K protection
Operating voltage below 60 V AC/DC
Compact installation design
Food and beverage machinery
Industrial automation systems
Sensor and actuator connectivity
Packaging equipment
Hygienic production lines
Wet-area applications
Machine control systems
| Specification | Details |
|---|---|
| Product Model | EBF008 |
| Order Code | ZDO2H040VAS0000-00STGH050VAS |
| Product Type | Y-Splitter |
| Connection | 1 x M12 plug + 2 x M12 sockets |
| Operating Voltage | <60 V AC/DC |
| Current Load | 4 A |
| Protection Class | II |
| Contact Material | Gold-plated |
| Housing Material | PA, halogen-free |
| Nut Material | Stainless steel 316L / 1.4404 |
| Sealing Material | EPDM |
| Silicone Free | Yes |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 100 °C |
| Tightening Torque | 0.6–1.5 Nm |
| Weight | Approx. 34 g |
| Connection Standard | IEC 61076-2-101 |
| Pack Quantity | 1 piece |
