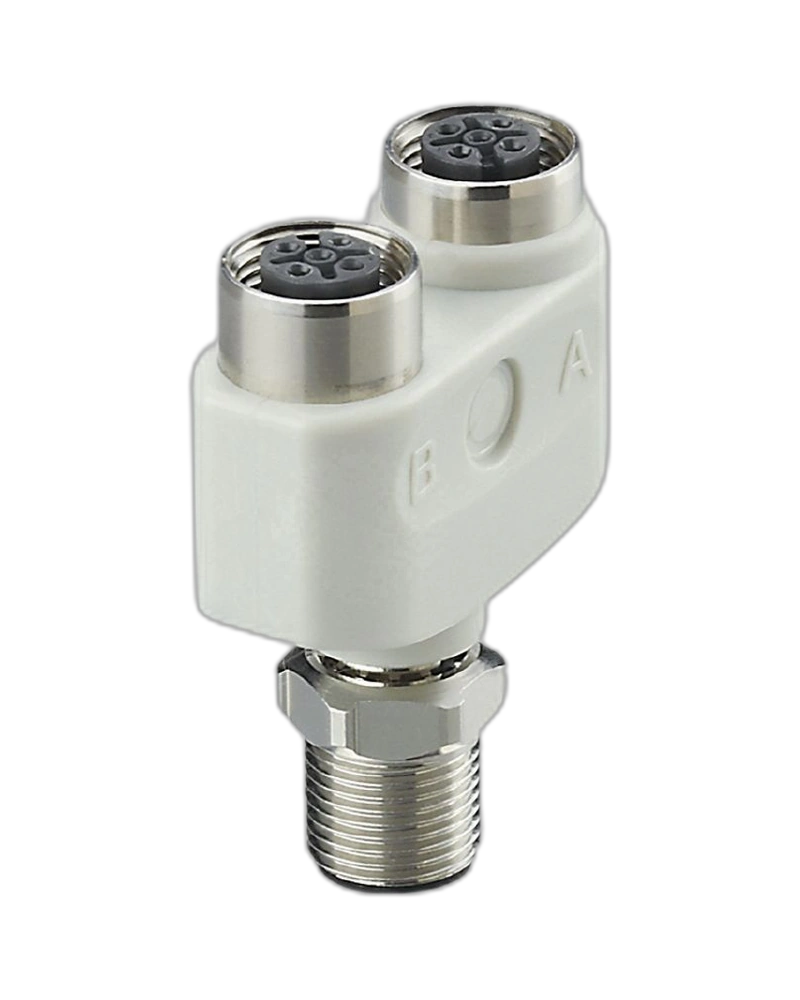

The IFM EBF007 is a hygienic M12 Y-splitter designed to simplify sensor and actuator connections in industrial environments. It provides one M12 plug and two M12 sockets with gold-plated contacts for dependable signal transmission. The silicone-free construction and high protection rating make it suitable for food and beverage applications. Its robust design is resistant to high-pressure cleaning and aggressive cleaning agents.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBF007 allows one M12 connection to be divided into two socket connections, helping simplify machine-level wiring. This is useful where several field devices need to be connected within a restricted installation area. The standardized M12 configuration supports efficient industrial connectivity.
The splitter is designed for hygienic and wet-area applications and is free from silicone. Its construction is suitable for environments where frequent cleaning is required. High-quality materials help maintain connection performance during repeated industrial operation.
The EBF007 is designed to withstand high-pressure cleaning with aggressive cleaning agents. Its IP65, IP67, IP68 and IP69K protection supports reliable operation in demanding washdown conditions. This makes it especially useful for food and beverage machinery.
Visual and tactile port identification helps operators quickly identify the available connection points. The mechanical end stop protects the O-ring from damage during tightening. This contributes to reliable sealing and easier maintenance.
M12 Y-splitter
1 x M12 plug and 2 x M12 sockets
Gold-plated contacts
Silicone-free construction
High protection rating
Suitable for food and beverage applications
Resistant to aggressive cleaning agents
Visual and tactile port identification
Mechanical O-ring protection
EPDM sealing
Food processing machinery
Beverage production equipment
Hygienic automation systems
Packaging machines
Washdown production areas
Sensor and actuator connection
Industrial machine automation
| Specification | Details |
|---|---|
| Product Model | EBF007 |
| Order Code | ZDO2H050VAS0000-00STGH050VAS |
| Product Type | Y-Splitter |
| Connection | 1 x M12 plug + 2 x M12 sockets |
| Operating Voltage | <60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Current Load per Port | 4 A |
| Total Current Load | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Contact Material | Gold-plated |
| Housing Material | PA, halogen-free |
| Nut Material | Stainless steel 316L / 1.4404 |
| Sealing Material | EPDM |
| Silicone Free | Yes |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 100 °C |
| Tightening Torque | 0.6–1.5 Nm |
| Pack Quantity | 1 piece |
