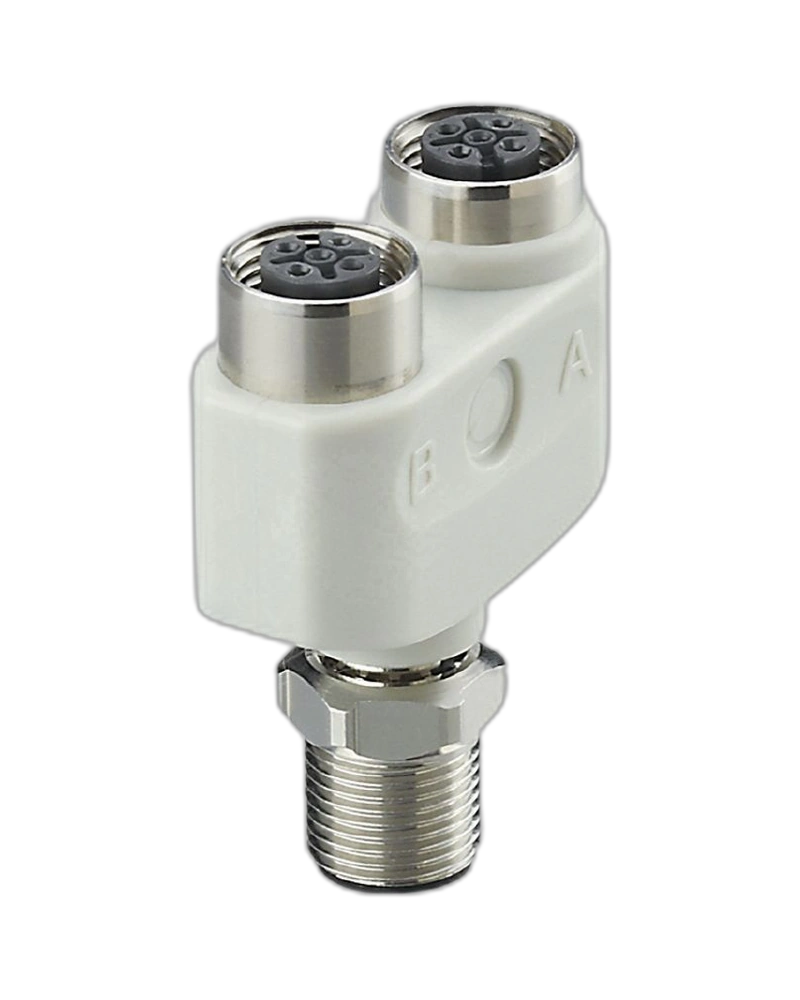

The IFM EBF006 is an M12 Y-splitter designed for reliable sensor and actuator connections in industrial and hygienic environments. It provides one M12 plug and two M12 sockets for efficient connection branching. Gold-plated contacts, PA housing and EPDM sealing provide dependable performance. The high IP65, IP67, IP68 and IP69K protection ratings support demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBF006 provides a single M12 plug connection with two M12 socket connections. This arrangement allows multiple devices to be connected through a common connection point. It is useful for reducing wiring complexity in compact machine installations.
The splitter is designed for AC/DC operation with an operating voltage below 250 V AC and 300 V DC. Gold-plated contacts provide reliable electrical conductivity and improved resistance to contact degradation. The M12 connector arrangement supports standard industrial sensor connectivity.
The EBF006 is free from silicone and uses durable materials suitable for hygienic and wet-area applications. Its PA housing and stainless-steel components provide reliable mechanical performance. EPDM sealing supports protection against moisture and environmental contaminants.
The splitter provides IP65, IP67, IP68 and IP69K protection, supporting applications involving cleaning and wet operating conditions. It can operate across a temperature range of -25 to 100 °C. These features make it suitable for demanding food, beverage and industrial environments.
M12 Y-splitter
1 x M12 plug
2 x M12 sockets
Gold-plated contacts
Silicone-free construction
PA housing
Stainless-steel components
EPDM sealing
IP65, IP67, IP68 and IP69K protection
Operating voltage below 250 V AC / 300 V DC
Suitable for hygienic applications
Food and beverage machinery
Hygienic automation systems
Sensor and actuator connections
Industrial processing equipment
Packaging machinery
Wet-area machine installations
Factory automation systems
| Specification | Details |
|---|---|
| Product Model | EBF006 |
| Order Code | ZDO2H030VAS0000-00STGH040VAS |
| Product Type | Y-Splitter |
| Connection | 1 x M12 plug + 2 x M12 sockets |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Contact Material | Gold-plated |
| Housing Material | PA, halogen-free |
| Nut Material | Stainless steel 316L / 1.4404 |
| Sealing Material | EPDM |
| Silicone Free | Yes |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 100 °C |
| UL Ambient Temperature | Up to 65 °C |
| Weight | Approx. 33 g |
| Pack Quantity | 1 piece |
