The IFM EBC118 is an M12 Y-splitter with a logic AND function for industrial automation and connection applications. It provides a compact connection arrangement with gold-plated contacts and robust M12 interfaces. The PA housing and FKM sealing provide reliable protection against oils, coolants and harsh operating conditions. High IP65/IP67/IP68/IP69K protection supports dependable operation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

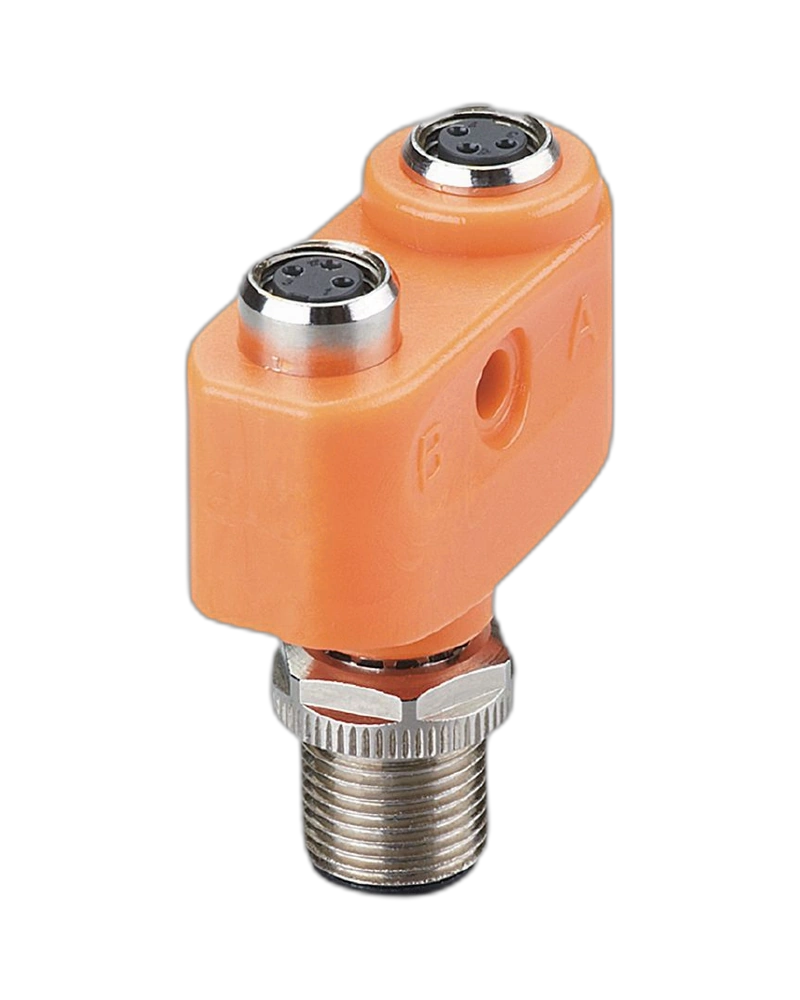

The EBC118 is designed with a logic AND function for suitable industrial signal combination applications. Its M12 Y-splitter configuration provides one M12 connection and two M12 socket connections. The arrangement allows compatible signals to be handled according to the intended control logic. It offers a practical solution for compact automation wiring.
The product uses A-coded M12 connectors with gold-plated contacts for reliable electrical transmission. It supports an operating voltage below 60 V AC/DC and a maximum total current load of 4 A. Nickel-plated brass locking components provide secure mechanical connection. The compact design supports installation where space is limited.
The EBC118 provides IP65, IP67, IP68 and IP69K protection for harsh industrial applications. PA housing and FKM sealing provide resistance against oils and coolants. The mechanical construction helps protect the sealing arrangement during installation. It is suitable for industrial automation, machine tools and sensor connection systems.
Logic AND function
Compact M12 Y-splitter
One M12 plug and two M12 sockets
Gold-plated contacts
A-coded connection system
PA orange housing
FKM sealing material
Oil and coolant resistant
IP65/IP67/IP68/IP69K protection
Secure nickel-plated brass locking
Industrial automation
Sensor signal combination
Machine-tool applications
Factory automation
Sensor and actuator systems
Control and connection systems
Industrial field wiring
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EBC118 |
| Product Type | Y-Splitter |
| Order Code | ZDO2H040MSS0000-00STGH040MSS |
| Function | Logic AND |
| Connection Design | M12 plug / 2 × M12 sockets |
| Connector Type | M12 |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Operating Voltage | < 60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Protection Class | II |
| Maximum Current per Location | 4 A |
| Maximum Total Current | 4 A |
| Ambient Temperature | -25 to +90 °C |
| cULus Temperature | Up to +65 °C |
| Storage Temperature | -25 to +55 °C |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Housing Material | PA, orange |
| Sealing Material | FKM |
| Locking Material | Brass, nickel-plated |
| Weight | Approx. 36.6 g |
| Tightening Torque | 0.6–1.5 Nm |
| Pack Quantity | 1 |
