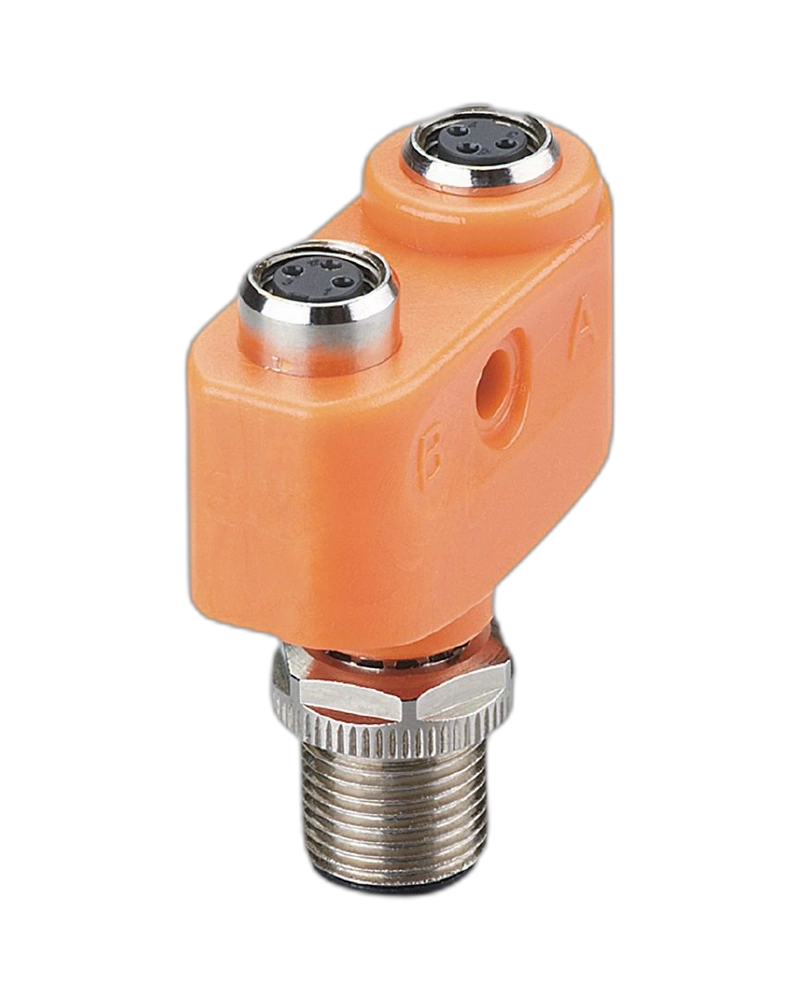

The IFM EBC117 is a compact M12 Y-splitter designed for applications requiring multiple inputs and outputs in restricted spaces. It combines M12 connections with gold-plated contacts for reliable industrial electrical performance. The PA housing, FKM sealing and nickel-plated locking components provide excellent mechanical durability. Its IP65/IP67/IP68/IP69K protection supports reliable use in harsh automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC117 provides an efficient connection arrangement for industrial applications with limited installation space. Its M12 Y-splitter configuration allows one connection to be branched into two compatible connections. Visual and tactile port identification makes installation and maintenance easier. The compact form helps reduce wiring complexity around sensors and actuators.
The EBC117 uses A-coded M12 connections with gold-plated contacts. Its electrical design supports AC/DC operation at less than 60 V AC/DC. The product supports a maximum current load of 4 A per location and 4 A total. Secure nickel-plated brass locking components help maintain stable connections during operation.
The splitter is designed for demanding industrial environments and provides IP65, IP67, IP68 and IP69K protection. PA housing and FKM sealing help resist oils and coolants. The mechanical end stop helps protect the O-ring from installation damage. This makes the EBC117 suitable for factory automation and machine-tool applications.
Compact industrial Y-splitter
M12 plug and two M12 sockets
Four-contact connection configuration
Gold-plated contacts
A-coded M12 interface
PA orange housing
FKM sealing
Oil and coolant resistant
IP65/IP67/IP68/IP69K protection
Visual and tactile port identification
Factory automation
Machine tools
Industrial sensor connections
Actuator systems
Automation field wiring
Production machinery
Industrial control systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EBC117 |
| Product Type | Y-Splitter |
| Order Code | ZDO2H040MSS0000-00STGH050MSS |
| Connection Design | M12 plug / 2 × M12 sockets |
| Connector Type | M12 |
| Coding | A-coded |
| Contact Material | Gold-plated |
| Number of Contacts | 4 |
| Electrical Design | AC/DC |
| Operating Voltage | < 60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Protection Class | II |
| Maximum Current Load | 4 A |
| Ambient Temperature | -25 to +90 °C |
| cULus Temperature | Up to +65 °C |
| Storage Temperature | -25 to +55 °C |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Housing Material | PA, orange |
| Sealing Material | FKM |
| Locking Material | Brass, nickel-plated |
| Weight | Approx. 37.2 g |
| Tightening Torque | 0.6–1.5 Nm |
| Pack Quantity | 1 |
