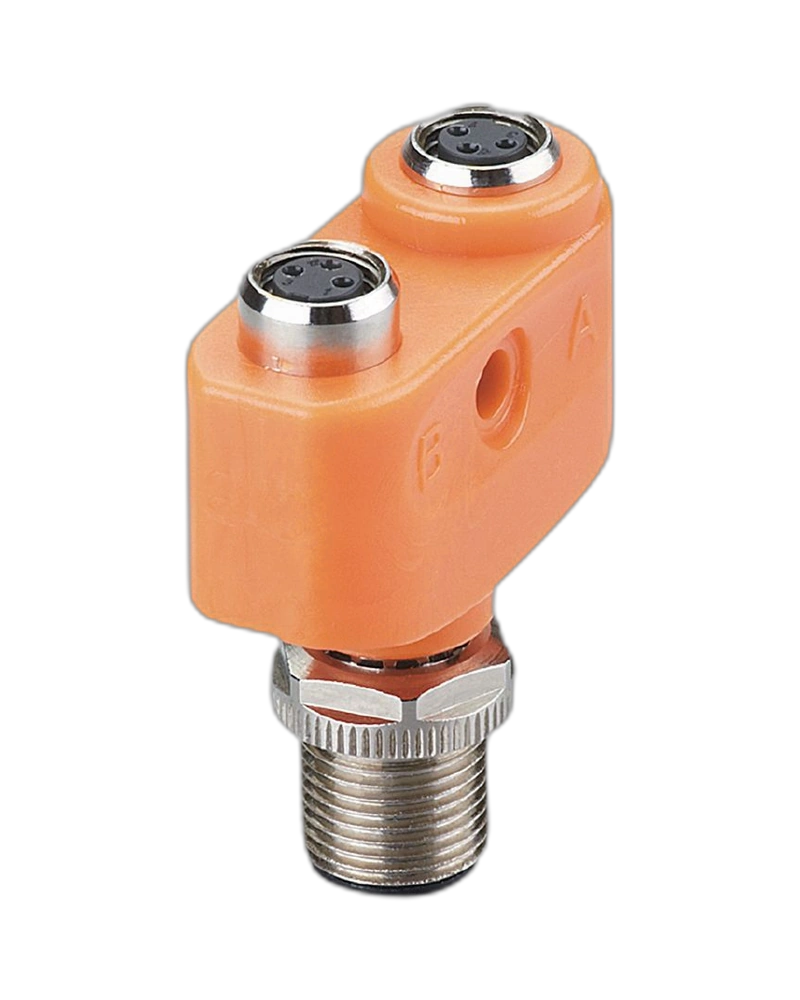

The IFM EBC116 is a robust M12 Y-splitter featuring a logic OR function for industrial connection applications. It provides one M12 plug and two M12 sockets with gold-plated contacts for dependable electrical performance. The PA housing and FKM sealing offer resistance against oils, coolants and harsh industrial conditions. Its high IP protection and compact construction support reliable automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC116 incorporates a logic OR function for suitable industrial switching and connection applications. Its M12 Y-splitter configuration provides one plug connection and two socket connections. This arrangement allows compatible signals to be combined according to the intended application. It provides a compact solution for sensor and automation connection requirements.
The product supports operating voltages below 60 V AC/DC and a maximum current load of 4 A. Gold-plated contacts help provide reliable electrical performance and long-term connection stability. A-coded M12 connectors support standardized industrial connectivity. Nickel-plated brass locking components provide secure mechanical retention.
The EBC116 is designed for demanding industrial environments with IP65, IP67, IP68 and IP69K protection. The PA orange housing and FKM seals provide resistance to oils and coolants. Its mechanical construction supports reliable operation in automation equipment. The compact design is useful where multiple connections must be accommodated in limited space.
Logic OR function
M12 Y-splitter configuration
One M12 plug and two M12 sockets
Gold-plated contacts
A-coded connection system
PA orange housing
FKM sealing
Oil and coolant resistance
IP65/IP67/IP68/IP69K protection
Suitable for restricted installation areas
Industrial sensor systems
Factory automation
Machine tools
Signal combination applications
Sensor and actuator connectivity
Industrial control systems
Automation field wiring
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EBC116 |
| Product Type | Y-Splitter |
| Order Code | ZDO2H050MSS0000-00STGH050MSS |
| Function | Logic OR |
| Connection Design | M12 plug / 2 × M12 sockets |
| Connector Type | M12 |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Operating Voltage | < 60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Protection Class | II |
| Maximum Current per Location | 4 A |
| Maximum Total Current | 4 A |
| UL Current Rating | 3 A |
| Ambient Temperature | -25 to +90 °C |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Housing Material | PA, orange |
| Sealing Material | FKM |
| Locking Material | Brass, nickel-plated |
| Weight | Approx. 36.9 g |
| Tightening Torque | 0.6–1.5 Nm |
| Pack Quantity | 1 |
