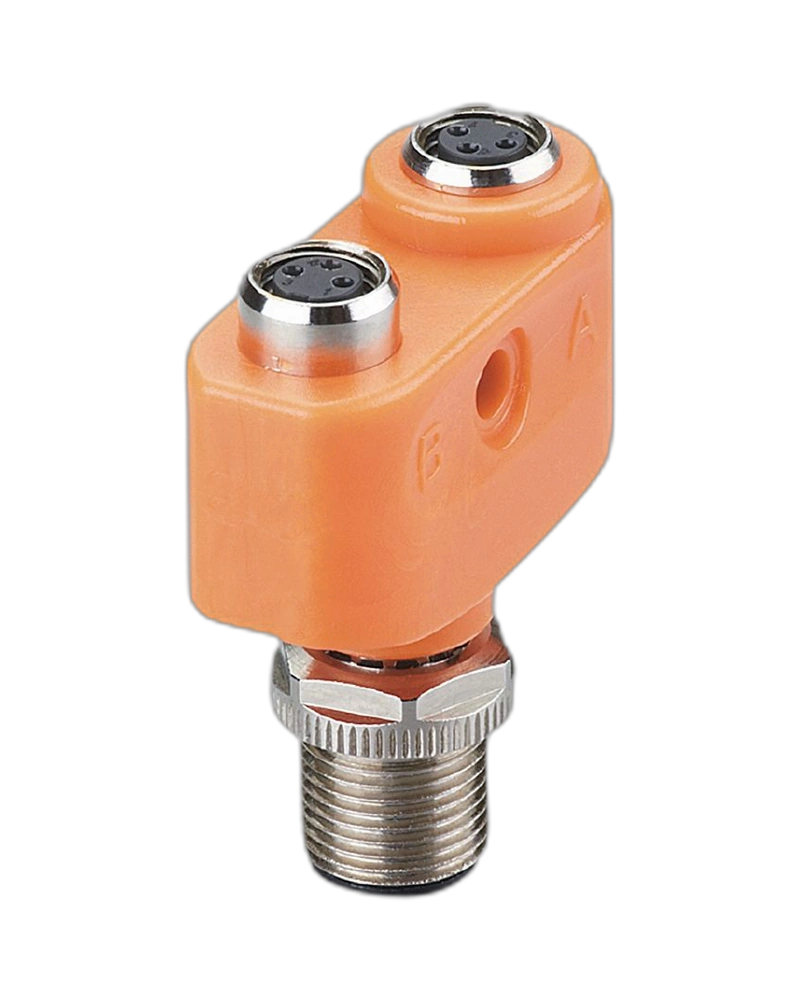

The IFM EBC115 is a compact M12 Y-splitter designed for connecting multiple industrial devices where installation space is limited. It uses M12 interfaces with four gold-plated contacts for dependable electrical connectivity. The PA housing and FKM sealing provide durability against industrial conditions, oils and coolants. High IP protection supports reliable operation in demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC115 is designed for applications requiring multiple inputs and outputs in restricted installation areas. Its M12 Y-splitter arrangement provides a convenient method for branching industrial connections. The compact construction helps simplify wiring around sensors and automation devices. Visual and tactile port identification supports easier installation and maintenance.
The splitter supports AC/DC operation with an operating voltage below 60 V AC/DC. Its gold-plated contacts provide dependable electrical contact for industrial connection applications. The M12 connectors use nickel-plated brass locking components for secure assembly. The design supports up to 4 A current load per location and total load.
The EBC115 provides IP65, IP67, IP68 and IP69K protection for demanding industrial environments. Its PA housing and FKM sealing provide resistance against oils and coolants. A mechanical end stop helps protect the sealing system from damage during installation. The product is suitable for machine tools and factory automation.
Compact M12 Y-splitter
Designed for restricted installation spaces
M12 plug and two M12 sockets
Four gold-plated contacts
PA orange housing
FKM sealing material
Oil and coolant resistant
IP65/IP67/IP68/IP69K protection
Secure brass nickel-plated locking
Visual and tactile port identification
Factory automation
Machine-tool applications
Industrial sensors
Automation field wiring
Sensor and actuator systems
Production machinery
Coolant and lubricant environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EBC115 |
| Product Type | Y-Splitter |
| Order Code | ZDO2H040MSS0000-00STGH050MSS |
| Connection Design | M12 plug / 2 × M12 sockets |
| Connector Type | M12 |
| Coding | A-coded |
| Number of Contacts | 4 |
| Electrical Design | AC/DC |
| Operating Voltage | < 60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Protection Class | II |
| Maximum Current per Location | 4 A |
| Maximum Total Current | 4 A |
| Ambient Temperature | -25 to +90 °C |
| cULus Temperature | Up to +65 °C |
| Storage Temperature | -25 to +55 °C |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Housing Material | PA, orange |
| Sealing Material | FKM |
| Locking Material | Brass, nickel-plated |
| Weight | Approx. 36.8 g |
| Tightening Torque | 0.6–1.5 Nm |
| Pack Quantity | 1 |
