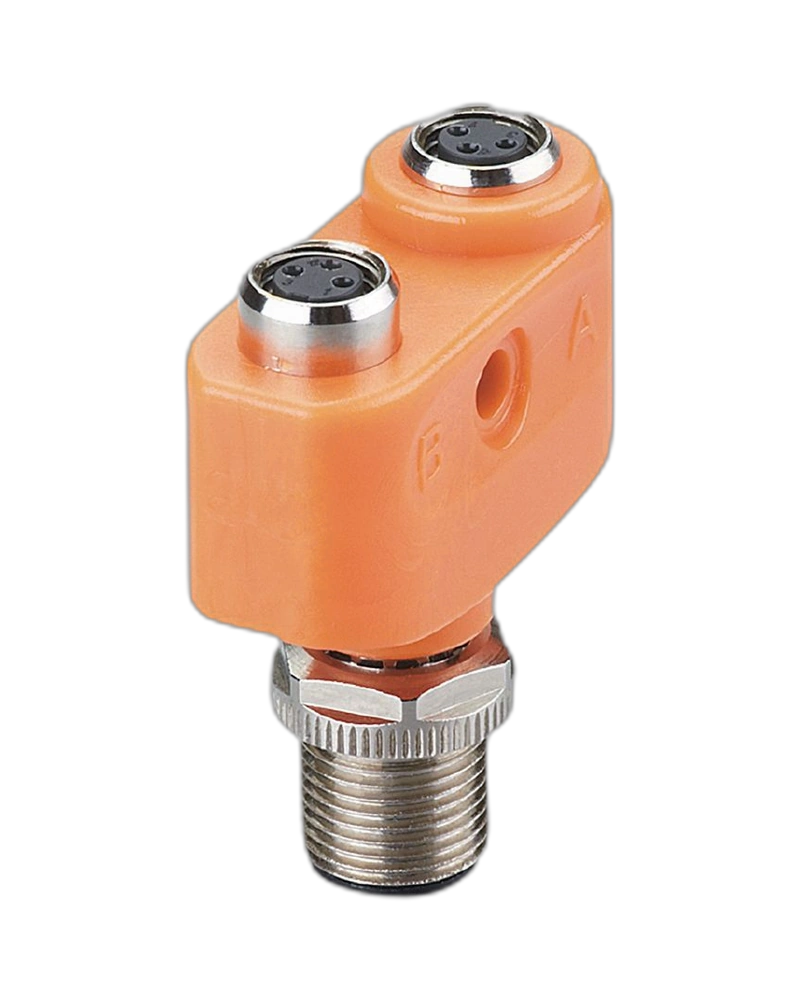

The IFM EBC114 is an industrial M12 Y-splitter designed to distribute connections between one M12 plug and two M12 sockets. It features gold-plated contacts and a robust PA housing for reliable industrial connectivity. The splitter provides high protection against dust, water and industrial contaminants. Its compact design is suitable for sensor and actuator connection systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC114 provides a practical M12 connection arrangement for applications requiring connection branching. It uses one M12 connection interface with two M12 socket connections. This configuration helps connect multiple compatible devices while simplifying field wiring. It is suitable for industrial automation and sensor connection applications.
The splitter uses an orange PA housing with FKM sealing for reliable industrial operation. Gold-plated contacts support dependable electrical connectivity and resistance to contact degradation. Nickel-plated brass locking components provide secure mechanical connection. The robust construction is suitable for environments where oils and coolants may be present.
The EBC114 supports IP65, IP67, IP68 and IP69K protection levels. It is designed to operate over a wide ambient temperature range from -25 to +90 °C. The secure connector arrangement helps maintain reliable connections during vibration and machine operation. It is suitable for harsh industrial automation installations.
M12 Y-splitter configuration
One M12 plug with two M12 sockets
Five-contact M12 connection design
Gold-plated contacts
PA orange housing
FKM sealing
Oil and coolant resistance
IP65/IP67/IP68/IP69K protection
Secure nickel-plated brass locking
Compact industrial connection solution
Industrial sensor connections
Actuator connection systems
Factory automation
Machine tools
Industrial control systems
Field wiring applications
Automation equipment
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EBC114 |
| Product Type | Y-Splitter |
| Order Code | ZDO2H050MSS0000-00STGH050MSS |
| Connection Design | M12 plug / 2 × M12 sockets |
| Connector Type | M12 |
| Contact Type | Gold-plated |
| Number of Contacts | 5 |
| Electrical Design | AC/DC |
| Operating Voltage | < 60 V AC/DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Maximum Total Current | 4 A |
| cULus Current | 3 A |
| Maximum Current per Location | 4 A |
| Protection Class | II |
| Ambient Temperature | -25 to +90 °C |
| cULus Ambient Temperature | Up to +65 °C |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Housing Material | PA, orange |
| Sealing Material | FKM |
| Locking Material | Brass, nickel-plated |
| Tightening Torque | 0.6–1.5 Nm |
| Pack Quantity | 1 |
