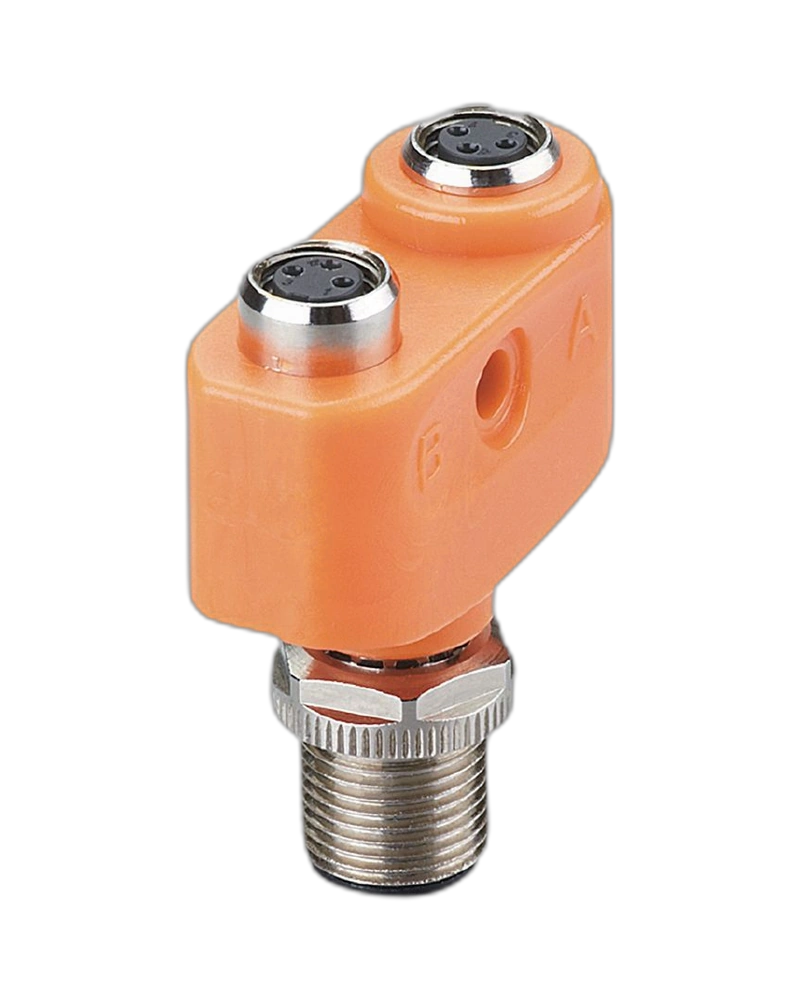

The IFM EBC113 is a robust Y-splitter designed for reliable connection of industrial automation devices. It provides one M12 plug and two M12 sockets for convenient signal distribution. Gold-plated contacts and a durable PA housing support stable electrical performance. Its high IP65, IP67, IP68 and IP69K protection makes it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC113 provides a practical Y-splitter configuration with one M12 plug and two M12 sockets. It allows compatible automation devices to share a common connection point without requiring additional wiring blocks. This helps simplify machine wiring and reduces installation complexity. The compact design is suitable for space-conscious industrial applications.
The splitter is designed for AC/DC applications and supports operating voltages below 250 V AC and 300 V DC. It can handle up to 4 A current per connection and 4 A total current. Gold-plated contacts provide reliable electrical conductivity and stable signal transmission. This makes the unit suitable for industrial sensor, actuator and automation connections.
The housing is made from durable orange PA material, while the locking components use nickel-plated brass. FKM sealing provides reliable protection around the connection points. The robust construction supports continuous operation in demanding factory environments. The product is also designed to be free from silicone.
The EBC113 provides IP65, IP67, IP68 and IP69K protection when correctly installed. This helps protect the connection against dust, water and high-pressure cleaning conditions. It is suitable for industrial and factory automation applications where reliable connectivity is required. The wide ambient temperature range further improves installation flexibility.
Y-splitter configuration
1 × M12 plug
2 × M12 sockets
AC/DC electrical design
Operating voltage below 250 V AC / 300 V DC
Maximum current load 4 A
Gold-plated contacts
PA orange housing
Nickel-plated brass locking components
FKM sealing
IP65 / IP67 / IP68 / IP69K protection
Silicone-free construction
Compact industrial design
Industrial automation systems
Factory automation
Sensor connection
Actuator connection
Machine wiring
Control equipment
Production machinery
Industrial field connections
| Specification | Details |
|---|---|
| Product Code | EBC113 |
| Model | ZDO2H030MSS0000-00STGH040MSS |
| Product Type | Y-Splitter |
| Connection Design | 1 × M12 plug / 2 × M12 sockets |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| cULus Voltage | 30 V AC / 42 V DC |
| Maximum Current per Connection | 4 A |
| Maximum Total Current | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | PA, orange |
| Locking Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Silicone Free | Yes |
| Ambient Temperature | -25...90 °C |
| cULus Ambient Temperature | Up to 65 °C |
| Storage Temperature | -25...55 °C |
| Storage Humidity | 10...100% |
| Weight | Approx. 36 g |
| M12 Connector | A-coded |
| Tightening Torque | 0.6...1.5 Nm |
| Pack Quantity | 1 piece |
