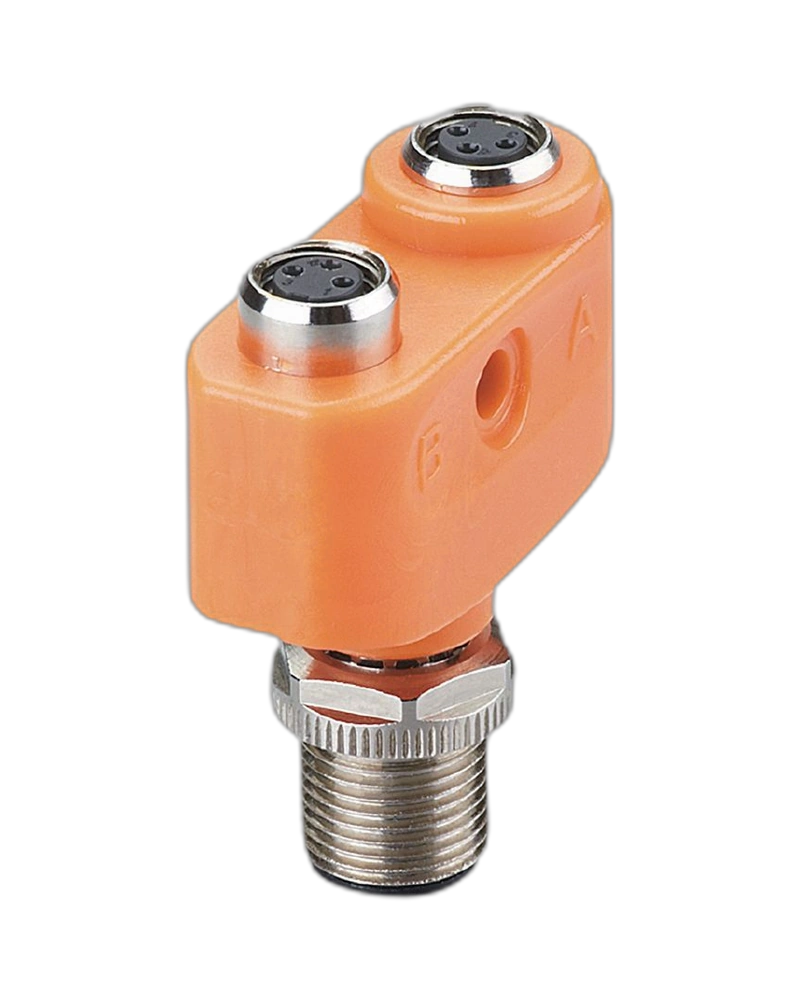

The IFM EBC112 is a compact Y-splitter designed to divide one M12 connection into two M8 connections in industrial automation systems. It supports AC/DC applications with an operating voltage below 50 V AC or 60 V DC. The PA orange housing, gold-plated contacts and IP65, IP67, IP68 and IP69K protection provide reliable performance in demanding environments. Its compact design makes it useful for sensor and actuator connection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC112 provides one M12 plug and two M8 sockets in a compact Y-splitter configuration. This allows compatible devices to share a common connection point without requiring a larger wiring block. The arrangement helps simplify field wiring and provides flexible connection options. It is particularly useful where compact sensor connectivity is required.
The Y-splitter is designed for AC/DC applications with an operating voltage below 50 V AC or 60 V DC. Its protection class III design supports suitable low-voltage industrial applications. Gold-plated contacts help provide dependable electrical conductivity. The configuration supports reliable connection between compatible automation components.
The EBC112 uses an orange PA housing with nickel-plated brass components and FKM sealing. This construction provides mechanical durability while maintaining a compact form factor. The connector arrangement is designed for secure industrial installation. Its robust construction makes it suitable for demanding machine environments.
The splitter provides IP65, IP67, IP68 and IP69K protection ratings. This makes it suitable for applications where protection against dust, water and cleaning conditions is required. Silicone-free construction is also specified for the product. The compact Y-shaped configuration provides practical connectivity without taking up excessive installation space.
Y-splitter design
1 × M12 plug
2 × M8 sockets
AC/DC electrical design
Operating voltage <50 V AC / <60 V DC
Maximum current 3 A
Gold-plated contacts
PA orange housing
Nickel-plated brass components
FKM sealing
IP65/IP67/IP68/IP69K protection
Silicone-free construction
Compact design
Industrial automation
Factory automation
Sensor connectivity
Actuator connectivity
Machine wiring
Compact connection systems
Industrial control equipment
Wet and demanding environments
| Specification | Details |
|---|---|
| Product Code | EBC112 |
| Model | ZDO2F030MSS0000-00STGH040MSS |
| Product Type | Y-Splitter |
| Connection Design | 1 × M12 plug to 2 × M8 sockets |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Maximum Current | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | PA orange |
| Connector Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Contacts | Gold-plated |
| Silicone Free | Yes |
| Main Connector | 1 × M12 |
| Secondary Connectors | 2 × M8 |
| M12 Coding | A-coded |
| M12 Contacts | 4 gold-plated contacts |
| M12 Tightening Torque | 0.6...1.5 Nm |
| M8 Tightening Torque | 0.3...0.5 Nm |
| Ambient Temperature | -25...90 °C |
| cULus Temperature | Up to 65 °C |
| Weight | Approx. 30.2 g |
| Pack Quantity | 1 piece |
| Application | Industrial applications / factory automation |
