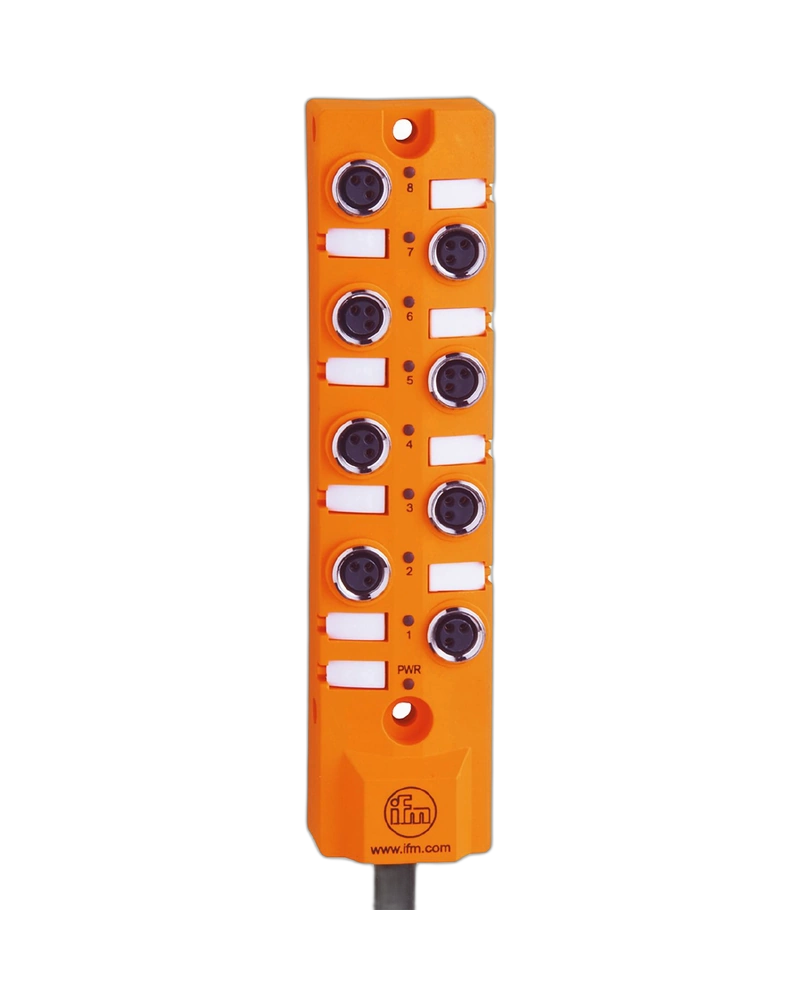

The IFM EBC070 is an eight-port PNP splitter box designed for centralized sensor and actuator connections in industrial automation. It features eight M8 ports and a 2 m PUR cable for compact machine installations. The robust PBT-GF20 housing provides IP65, IP67 and IP68 protection. Gold-plated contacts, clear LED indication and drag-chain suitability support reliable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC070 provides eight M8 connection ports in a compact splitter-box arrangement. It allows multiple sensors and actuators to be connected through a single centralized wiring point. This reduces cable routing complexity and helps maintain a clean machine installation. Its compact design is particularly suitable for restricted installation areas.
The EBC070 uses PNP electrical design and supports 10...30 V DC operation. It provides reliable signal distribution for compatible industrial sensors and actuators. Each module can support up to 2 A, with a maximum total current of 6 A. Gold-plated contacts help maintain reliable electrical connections.
The integrated 2 m PUR cable is suitable for compact machinery where a shorter connection distance is preferred. Its halogen-free construction provides suitable characteristics for industrial automation installations. The cable is designed for drag-chain applications when specified conditions are maintained. This makes the EBC070 useful for moving machine sections.
The EBC070 uses a PBT-GF20 housing with nickel-plated brass components. IP65, IP67 and IP68 protection helps provide reliable resistance against dust, moisture and industrial exposure. Eight yellow LEDs indicate switching status and a green LED indicates operation. These features support easier machine commissioning and troubleshooting.
8 M8 ports
PNP electrical design
10...30 V DC operation
2 m PUR cable
2 A per port
6 A total current
IP65/IP67/IP68 protection
8 yellow LEDs
1 green LED
Gold-plated contacts
PBT-GF20 housing
Drag-chain suitable
Halogen-free cable
Industrial automation
Factory automation
Machine tools
Production machinery
Sensor and actuator connectivity
Compact automation equipment
Moving machinery
Oil and coolant environments
| Specification | Details |
|---|---|
| Product Code | EBC070 |
| Model | ZDO8F039MSS0002H10 |
| Product Type | Splitter Box |
| Electrical Design | PNP |
| Number of Ports | 8 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Dimensions | 129.5 × 30 × 20 mm |
| Weight | Approx. 282.7 g |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 7.4 mm |
| Cable Cores | 8 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Switching Status | 8 × yellow LED |
| Power Status | 1 × green LED |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Accessories | DIN rail adapter E73007, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
