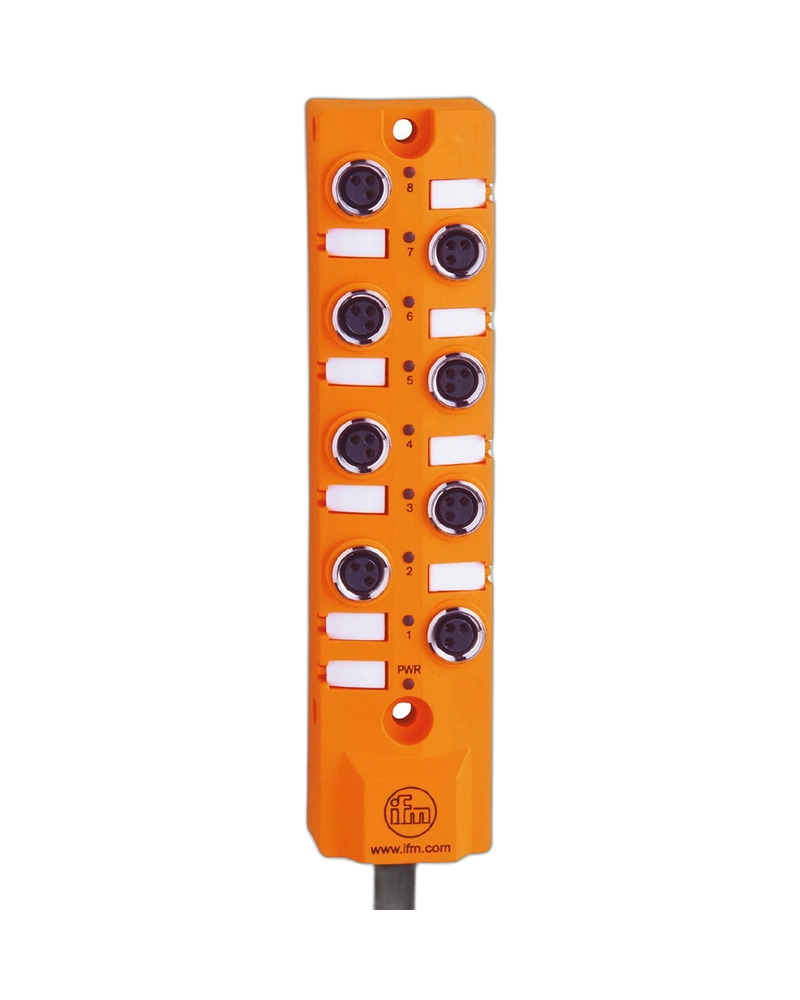

The IFM EBC067 is an eight-port NPN splitter box designed for centralized industrial sensor and actuator connectivity. It features eight M8 ports and a 10 m PUR cable for extended machine installations. The durable PBT-GF20 housing provides IP65, IP67 and IP68 protection. Multiple LED indicators and gold-plated contacts provide convenient monitoring and reliable electrical performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC067 allows up to eight compatible sensors or actuators to be connected through one centralized M8 wiring block. This arrangement reduces complex field wiring and supports better cable organization. It is suitable for automation machines with several sensing or control points. The compact rectangular housing allows practical installation in industrial equipment.
The NPN electrical design operates with a 10...30 V DC supply and supports compatible automation circuits. The splitter box provides a reliable connection between field devices and the control system. Gold-plated contacts help provide stable electrical transmission. A-coded M8 connections offer standardized field-device compatibility.
The 10 m PUR cable provides additional installation flexibility for large machinery and production systems. Its industrial construction supports demanding operating conditions. Drag-chain suitability allows use in moving applications when the specified bending radius is maintained. This makes it suitable for automated equipment with moving sections.
Sixteen yellow LEDs provide switching-status indication for connected circuits, while a green LED indicates operation. The visual indicators help technicians identify circuit status quickly. The robust PBT-GF20 housing and nickel-plated brass components provide reliable mechanical construction. IP65, IP67 and IP68 protection supports industrial environments.
8 M8 ports
NPN electrical design
10...30 V DC operation
10 m PUR cable
16 yellow switching LEDs
1 green power LED
Gold-plated contacts
PBT-GF20 housing
IP65/IP67/IP68 protection
Drag-chain suitable
Oil and coolant resistant
Compact eight-port design
Factory automation
Industrial control systems
Machine tools
CNC machinery
Production lines
Sensor networks
Actuator systems
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EBC067 |
| Model | ZDO8F04HMSJ0010H10 |
| Product Type | Splitter Box |
| Electrical Design | NPN |
| Number of Ports | 8 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Dimensions | 129.5 × 30 × 20 mm |
| Weight | Approx. 1248.5 g |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 8.5 mm |
| Cable Cores | 16 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -20...80 °C |
| Moving Temperature | -5...60 °C |
| Switching Status | 16 × yellow LED |
| Power Status | 1 × green LED |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Accessories | DIN rail adapter E73007, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
